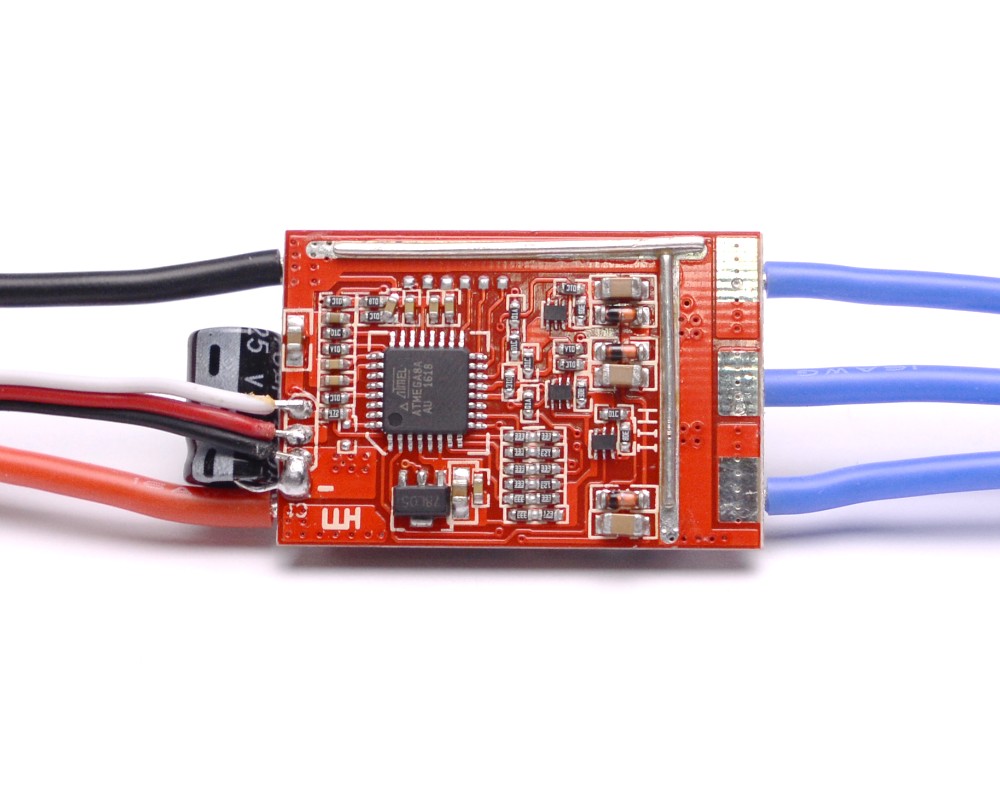

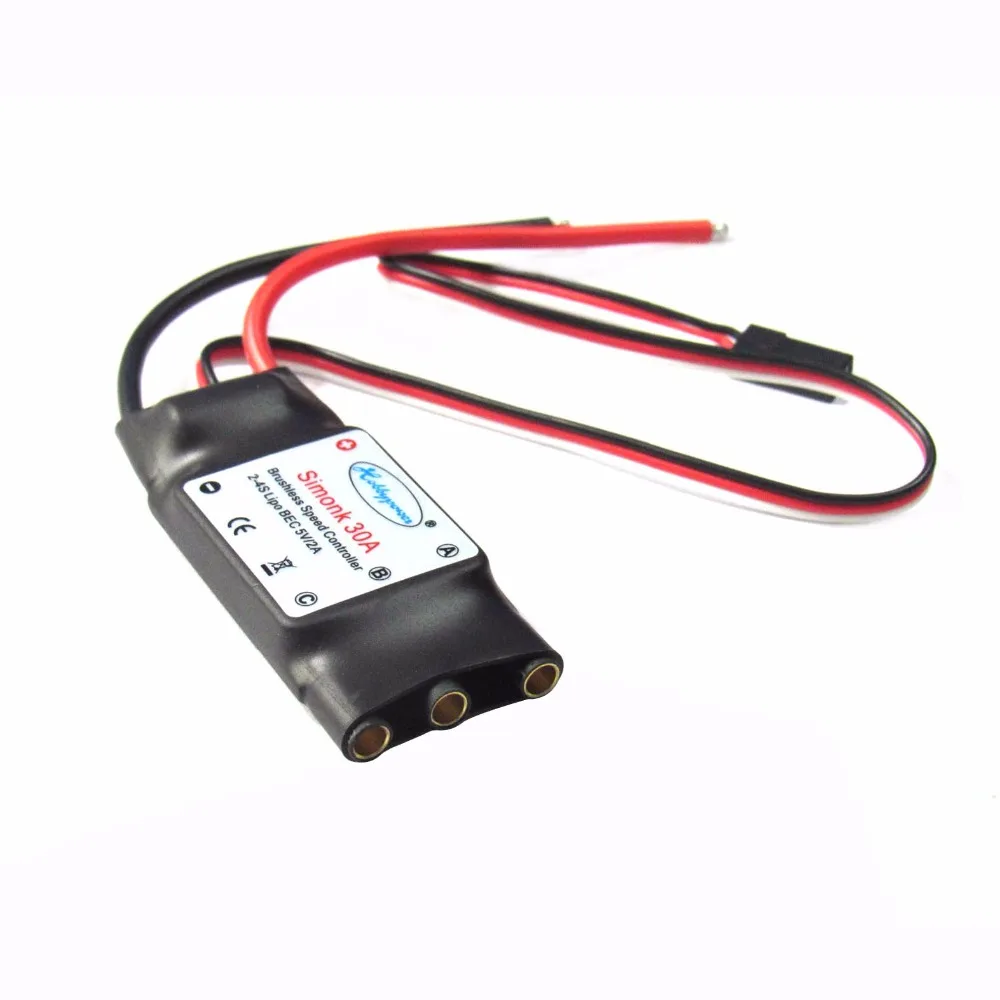

30A Simonk ESC with BEC

30A Simonk Brushless speed controller ESC for MultiCopter KK Multi-Copter Quad X-flying

Description:

• Highest efficiency 100% N-FET design.
• Highest accuracy with Crystal Oscillator (Temperature won't affect the PWM operating range like other cheap ESC's).
• No low voltage cutoff, because any cutoff in a multirotor = crash.
• No over temp cutoff, because any cutoff in a multirotor = crash.
• Super high refresh rate, no buffering of the input signal, resulting in more than 490Hz response rate.
• 16KHz motor frequency, giving fastest response of the motor, and quietest operation as well (no 8KHz squeal).
• Super simple, foolproof operation! Nothing to program other than the throttle range.

ESC SPECS

Cont Current: 30A
Burst Current: 35A
BEC Model: Linear mode
BEC Output: 5V 2A
Li-ion/Li0poly: 2-4S,or Ni-MH/Ni-Cd:5-12NIMH
Weight: 25g
Size: 32*24*7mm

Package Including :
1 pc *30A Simonk ESC

Can be programmed by yourself!

And solder 3.5mm banana connector on it already.
