PZEM-022 CT 100A AC Digital Display Power Monitor Meter Open CT

Monitor and manage your power usage with precision using the PZEM-022 AC Digital Multimeter. Designed for home and industrial use, this advanced meter provides real-time monitoring of essential electrical parameters including voltage, current, power, frequency, and power factor – all displayed on a large, easy-to-read LCD screen.

Key Features:

• 6-in-1 Electrical Measurement
  Accurately measures voltage (80–260V), current (0–100A), active power (0–22kW), energy usage (up to 999kWh), frequency (45–65Hz), and power factor (0.00–1.00 PF).

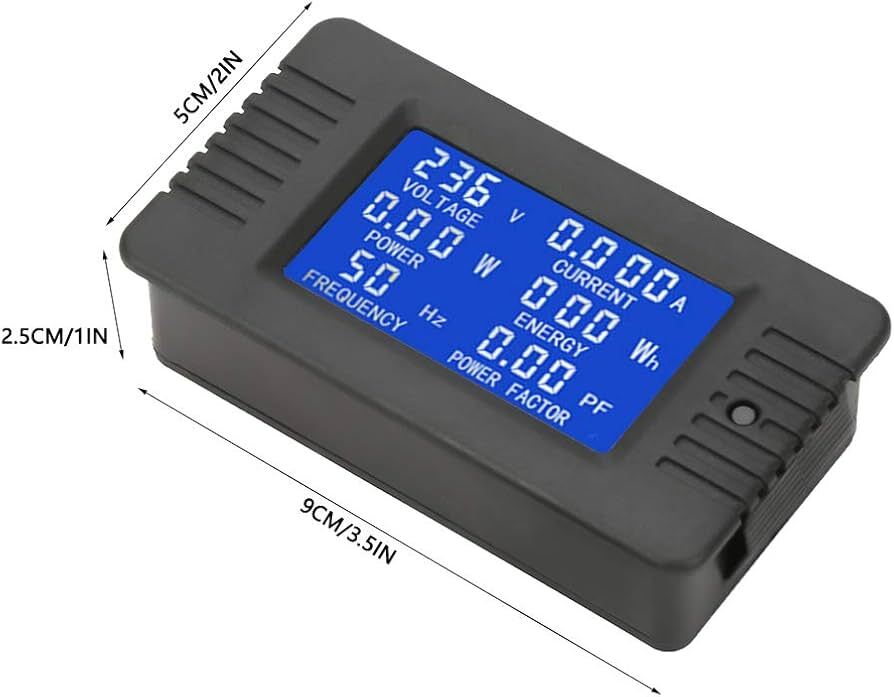

• Large LCD Display with Backlight
  A high-contrast LCD screen shows all parameters simultaneously. Backlight function is memory-enabled – your preference is saved even when powered off.
• Overload & Alarm Function
  Audible and visual alerts for power overload conditions, with customizable alarm thresholds for energy consumption.
• User-Friendly Controls
  Easily reset power values, toggle backlight, and set alarm thresholds using a single multi-function button.
• Data Memory Function
  Automatically stores measurement data when powered off – no need to worry about losing your readings.

Technical Specifications:

• Operating Voltage: 80–260V AC
• Measurement Current Range: 0.02–100A
• Power Range: 0.5W–22,000W
• Energy Range: 0–999kWh
• Frequency Range: 45–65Hz
• Power Factor Range: 0.00–1.00
• Measurement Accuracy: Class 1.0
• Nominal Power: 100A / 22000W

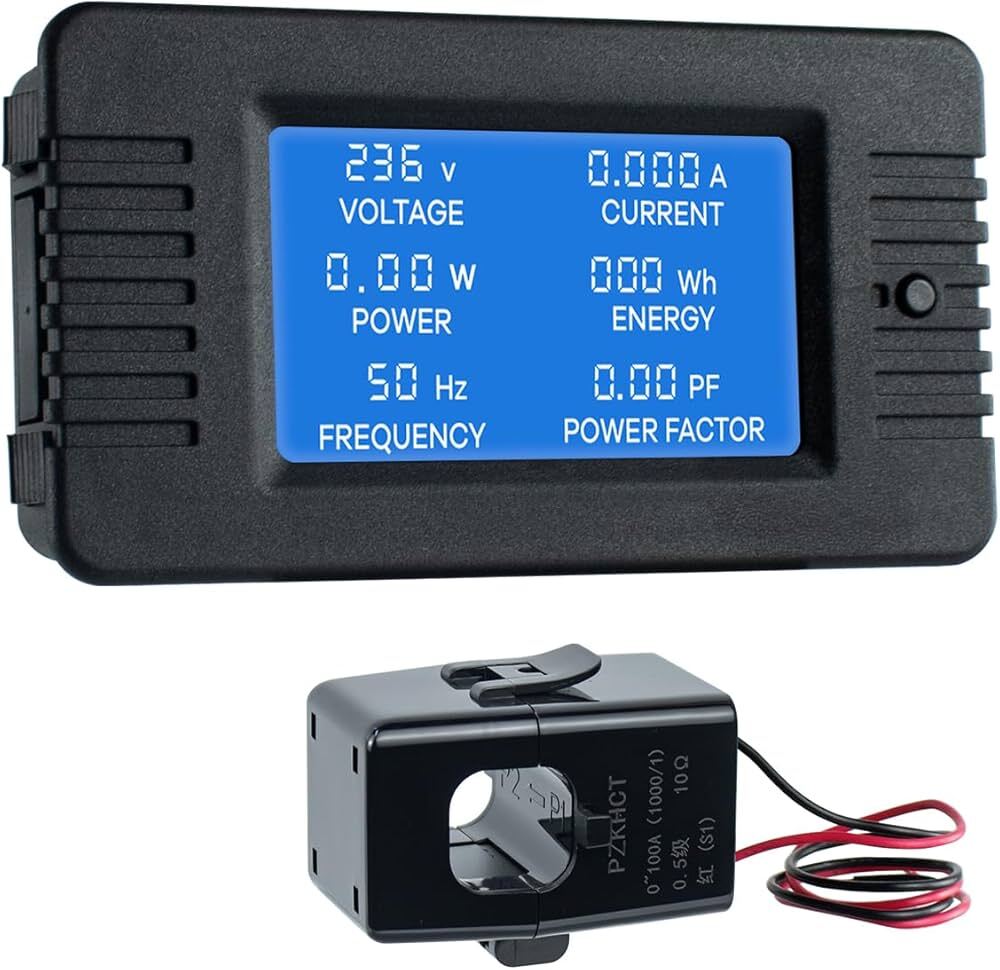

• Includes: 1× PZEM-022 Multimeter, 1× Open-Type Current Transformer (CT)

Applications:

Perfect for monitoring residential power consumption, industrial equipment, generator outputs, or DIY electronics projects.

Package Includes

1pc x PZEM-022 CT 100A AC Digital Display Power Monitor
