VGA Adapter Board For Raspberry Pi 3B 2B B+ A+

(No reviews yet) Write a Review

SKU:: PEEBR54
UPC:
MPN:
Shipping:: Calculated at Checkout

TZS19,569.81

Current Stock:

Quantity:

Frequently bought together:

Description
0 Reviews

Description

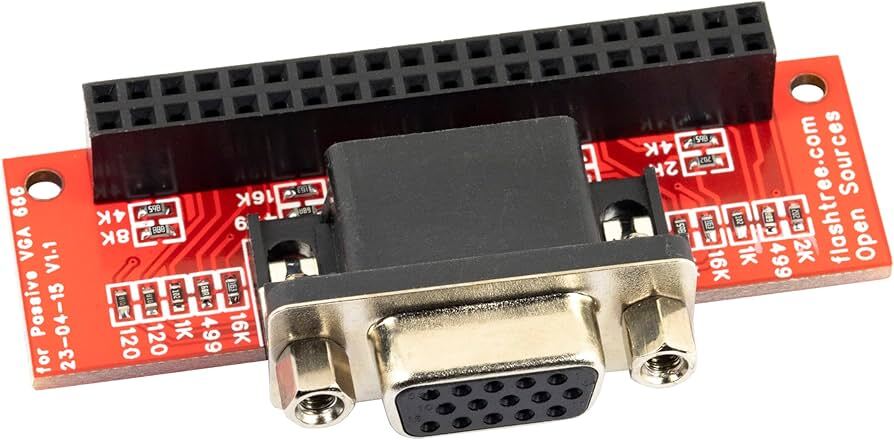

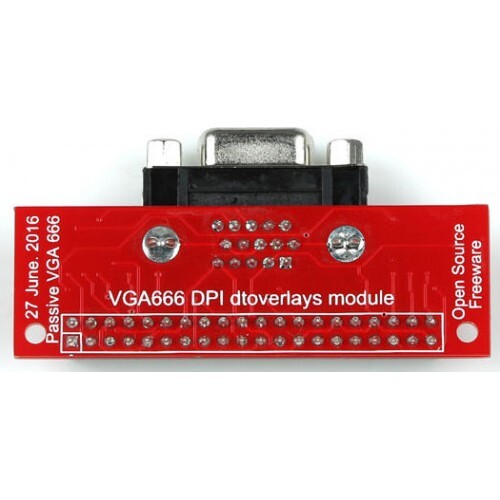

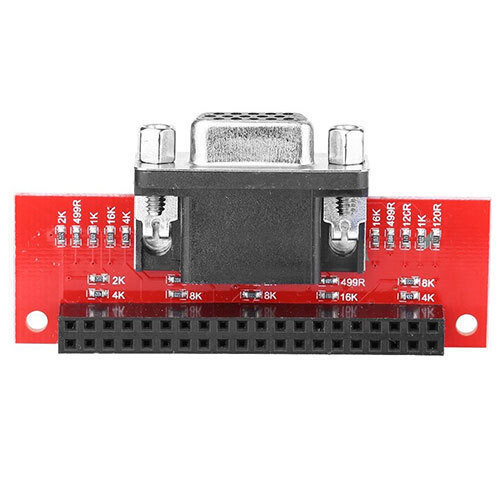

This Module has another name: Gert -VGA-adapter, or Passive VGA adapter 666 for Raspberry Pi A+/B+/2B/3B/Zero. The Raspberry Pi has an HDMI port to connect a display. If your monitor only has VGA, you have to use an adapter. Because this requires a digital-to-analog conversion, those adapters can be quite pricey, and they can draw lots of power. As well as just allowing you to connect a VGA monitor natively. And unlike composite video, the DPI interface can be run independently of the HDMI. The software for dual screens is still under development. Running two screens at maximum resolution will depend on the speed of GPIO. This wasn’t possible on the Model A or B. And there’s a catch: as the board uses most of your GPIO pins, you lose access to them.

Features:

CATEGORY	SPECIFICATION
Compatibility	Raspberry Pi 3B, 2B, B+, A+
VGA output resolution	640 × 480 up to 1920 × 1024 at 60 fps
Color depth	6 bits per channel (maximum 262,144 colors)
Setup	Easy to set up and configure

Package Includes:

1 x VGA Adapter Board For Raspberry Pi

How to use:

Edit /boot/config.txt file with vim.tiny or other editor. and modify as following:

framebuffer_width=800
framebuffer_height=600
dpi_group=2
device_tree=bcm2710-rpi-3-b.dtb
dpi_mode=86
dtparam=i2c_arm=off
dtparam=spi=off
dtparam=uart0=off
dtparam=uart1=off
dtoverlay=pi3-disable-bt-overlay
dtoverlay=vga666
enable_dpi_lcd=1
display_default_lcd=1
force_pwm_open=0
dtparam=audio=on
start_x=1
gpu_mem=128
