Raspberry Pi 10.1" Capacitive Touch Screen LCD
- SKU:
- PELED99
- Shipping:
- Calculated at Checkout
Description
Waveshare 10.1 inch HDMI LCD display has IPS display panel and a screen resolution of 1280 x 800. This display has a capacitive touch-type screen and toughened glass touch panel with a 6H hardness that supports Multi mini-PCs such as Raspberry Pi, BB Black, as well as general desktop computers. Also, it has an HDMI interface for displaying and a USB interface for touch control. Comes with an EU plug type power adapter.
Features
- IPS screen,1280×800 high resolution
- Capacitive touch control, supports up to ten-points touch
- When works with Raspberry Pi, supports Raspbian, Ubuntu, single touch, and driver freet
- Supports Banana Pi, Banana Pro, comes with Lubuntu, Raspbian images
- Supports BB Black, comes with Angstrom image
- interface for displaying, USB interface for touch control
- Back light control to lower power consumption
Specifications
Pixel Resolution |
1200 x 800 |
Display Size (inch) |
10.1 |
HDMI Port |
Yes |
Panel Type |
IPS |
View Angle |
170º |
Brand |
Waveshare |
Touch type |
Capacitive |
Touch Port |
USB |
Toughend Glass Panel |
Yes |
Touch-Points |
10 |
Length (mm) |
274 |
Width (mm) |
187 |
Weight (gm) |
930 |
Shipment Weight |
0.98 kg |
Shipment Dimensions |
28 × 20 × 10 cm |

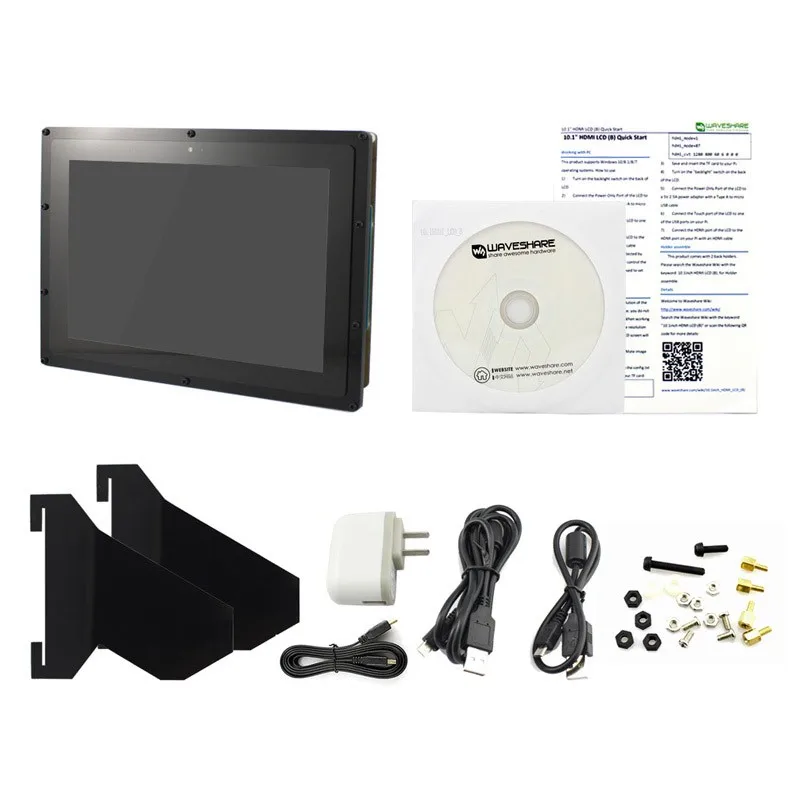

Package list
- 1 x 10.1inch HDMI LCD (B) (with case)
- 1 x Back stand
- 1 x Power adapter (EU plug type)
- 1 x HDMI cable
- 1 x HDMI to Micro HDMI Adapter
- 1 x USB-A to Micro-B cable
- 1 x Screws pack
- 1 x Quick start sheet
Note:
For Raspberry Pi:
1- Insert the SD card to your computer. Find the config.txt in the SD`s root and open it. Then add the following code in the end according to resolution.
2- Reboot the system
