Description
All Xilinx devices:
1.Support
Virtex FPGA families
All Spartan FPGA families
All CPLDs XC9500/XC9500XL/XC9500XV XPLA3/ CoolRunner-II CPLDs CoolRunner 18V00 ISP PROMs XC Platform Flash PROMs XCF00S/XCF00P Series FPGAs XC4000
2. On Supported Windows and Red Hat Enterprise Linux
3. Work impact chipscope pro and MicroBlaze embedded processer
4. Support debuging Target system using 5.0V TTL, LVTTL/LVCMOS 3.3V, 2.5V, 1.8V, 1.5V.
5. To Apply Xilinx CPLD / chips FPGA download debugging.
6. JTAG Support, Serial Slave, download mode SPI, configure all Xilinx devices. can
7. Platform Xilinx with USB Cable fully compatible.
8. device Target to download the clock options up, to 24MHz.
9. IMPACT Support and ChipScope.
10. Can Firmware be updated automatically.
Product Features:
1. Download and debug for XLDx CPLD / FPGA chip.
2. Support JTAG, Slave serial, SPI download mode, can be configured for all Xilinx devices.
3. With Xilinx Platform USB Cable, It is fully compatible with the latest firmware version, has applied the shipment.
4. Target device clock option download, automatic speed control and XILINX software support.
5. Support for iMPACT and ChipScope.
6. Compatible with FPGA and CPLD.
How to Connect
- Connects to PC
- Via USB interface
- Connects to target board
-
Note: please make sure the VCC and GND are connected correctly, to avoid damaging the Platform Cable USB
- Platform Cable USB provides 3 different interfaces to connect with the target board: JTAG, Slave Serial, and SPI. The figure
- below shows the header pinouts of the interfaces:
Development Resources
Wiki : www.waveshare.com/wiki/Platform_Cable_USB

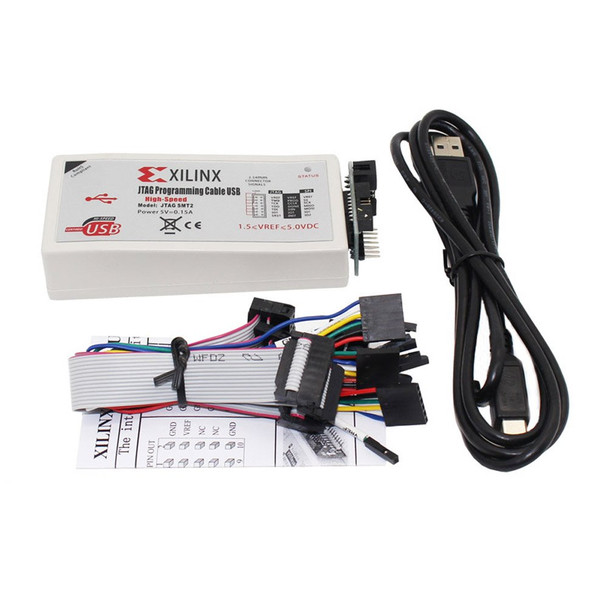

Package included:
1. Platform Cable USB main unit x1
2. JTAG adapter x1
3. USB cable x1
4. 8-pin header to 7-pin separated cable x1
5. 8-pin header to 6-pin header cable x1
6. 14-pin (2.54mm pitch) JTAG cable x1
7. 14-pin (2mm pitch) JTAG cable x1
8. 10-pin (2.54mm pitch) JTAG cable x1
![[6530] Platform Cable USB (6)](https://ae01.alicdn.com/kf/H8eb3d59e9cf5423a8526683cf6546cebm.jpg)
Related Products
Related Products
USB Blaster ALTERA CPLD FPGA Download Programmer
Cytron
KES1,100.00
Characteristics:
Support all ALTERA FPGA/CPLD chips.
In AS mode, the program can be run directly after downloading the program, no need to unplug and plug in the USB blaster again.
Support...

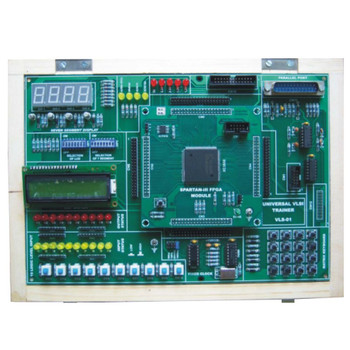

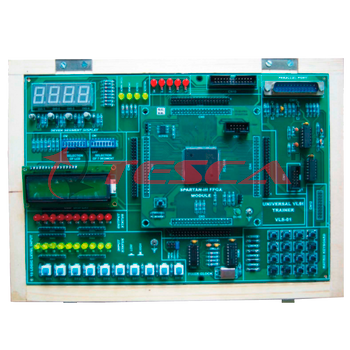

Universal VLSI (FPGA/CPLD) Trainer - Order Code 43540
