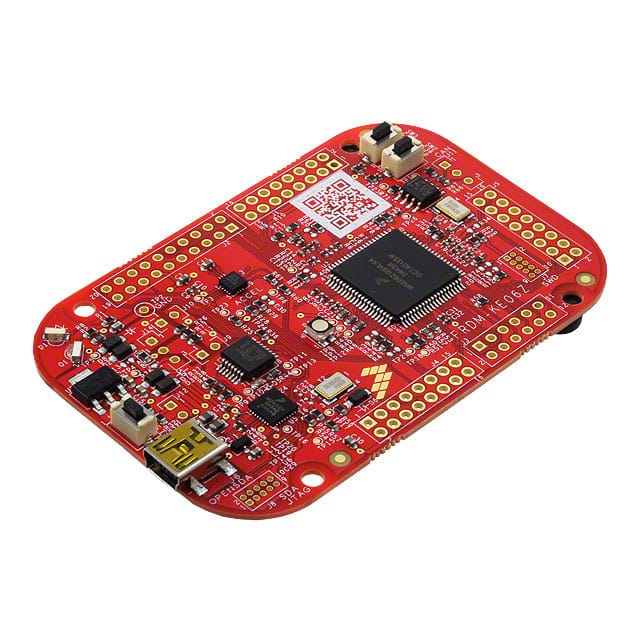

NXP FRDM-KE06Z ARM Development board

The FRDM-KL46Z is an ultra-low-cost development platform enabled by the Kinetis L series KL4x MCU family built on the ARM® Cortex™-M0+ processor. Features include easy access to MCU I/O, battery-ready, low-power operation, a standard-based form factor with expansion board options and a built-in debug interface for flash programming and run-control. The FRDM-KL46Z is supported by a range of NXP and third-party development software.

Overview
The FRDM-KL46Z has been designed by NXP in collaboration with mbed for prototyping all sorts of devices, especially those requiring the size and price point offered by Cortex-M0+ and the power of USB Host and Device. It is packaged as a development board with connectors to break out to strip board and breadboard, and includes a built-in USB FLASH programmer.

Features

• MKE06Z128VLK4 MCU – 48MHz, 128KB Flash, 16KB SRAM, 80LQFP
• Key input, MMA8451Q accelerometer, RGB LED
• Flexible power supply options – USB, external source
• Easy access to MCU I/O
• IrDA transmitter and receiver
• CAN communication
• Form factor compatible with Arduino™ R3 pin layout
• New, OpenSDA debug interfaceMass storage device flash programming interface (default)
• No tool installation required to evaluate demo apps
• P&E Debug interface provides run-control debugging and compatibility with IDE tools
• CMSIS-DAP interface: new ARM standard for embedded debug interface

Package Includes
FRDM-KE06Z hardware
Quick reference card
Additional hardware required: USB A-to-MiniB cable (not included)

It is based on the NXP KL46Z, with a 32-bit ARM Cortex-M0+ core running at 48MHz. It includes 256KB FLASH, 32KB RAM and lots of interfaces including USB Host, USB Device, SPI, I2C, ADC, DAC, PWM, LCD Controller, Touch Sensor and other I/O interfaces.
