Description
OLED (Organic Light-Emitting Diode) is a self light-emitting technology composed of a thin, multi-layered organic film placed between an anode and cathode. In contrast to LCD technology, OLED does not require a backlight. OLED possesses high application potential for virtually all types of displays and is regarded as the ultimate technology for the next generation of flat-panel displays.
Features:
| CATEGORY | SPECIFICATION |
|---|---|

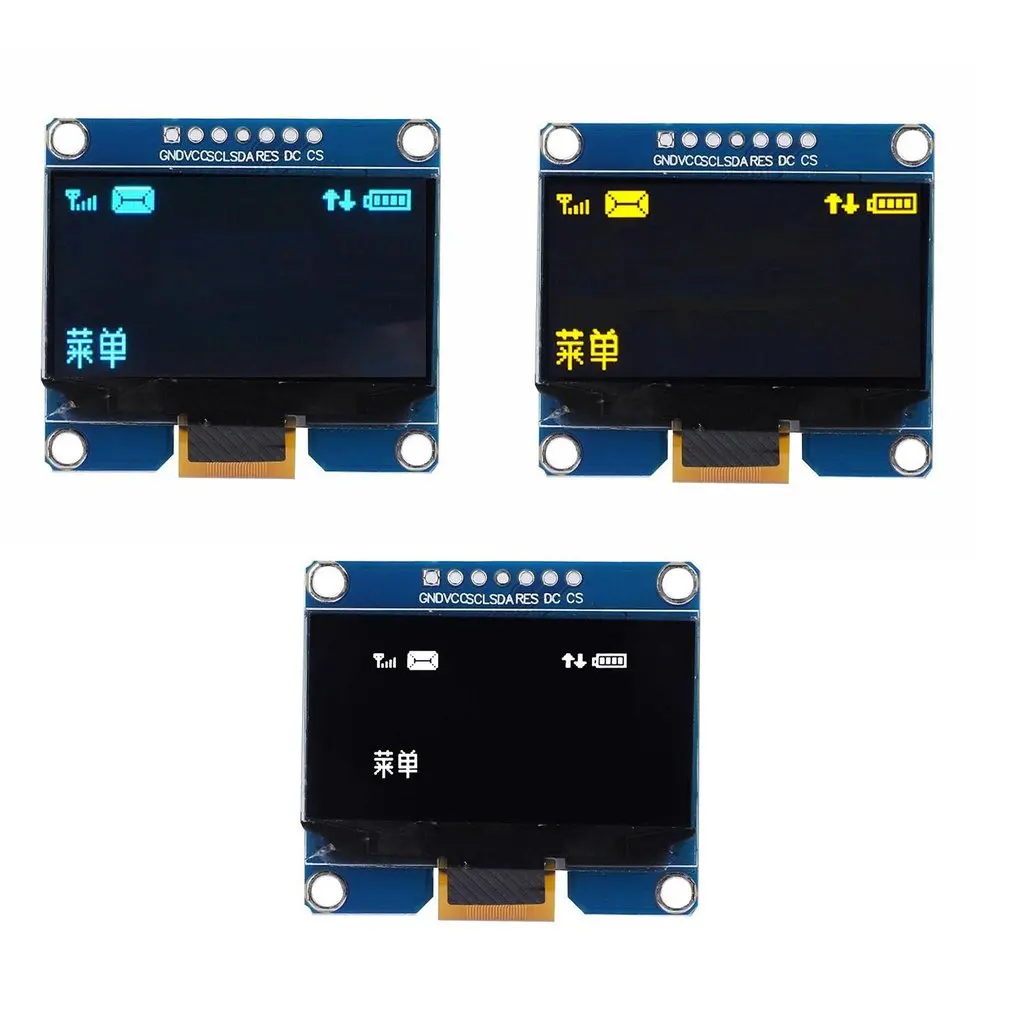

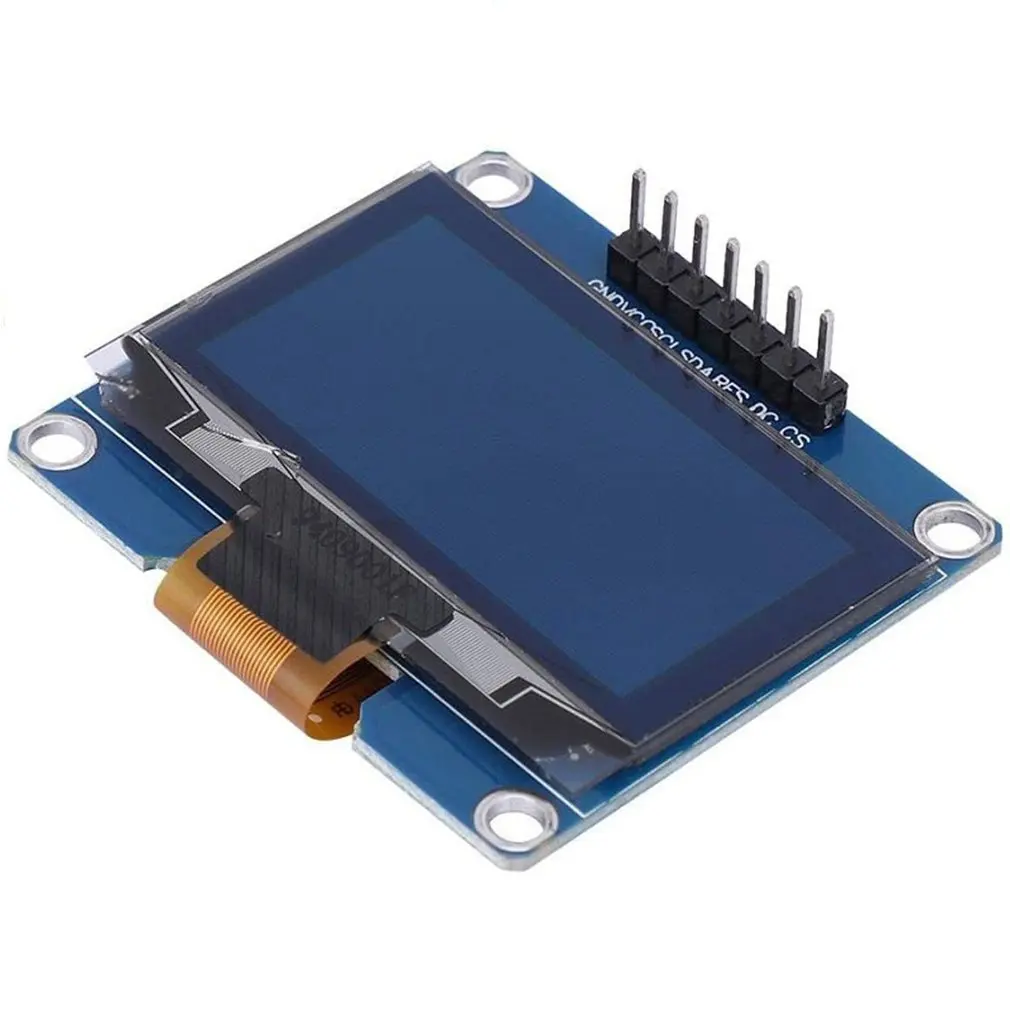

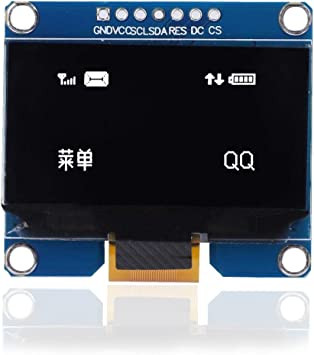

| Type | 1.54" OLED Display Module |
| Resolution | 128 × 64 pixels |
| Screen Type | IPS color, supports horizontal & vertical orientation |
| Driver IC | SSD1309 (compatible with SSD1306) |

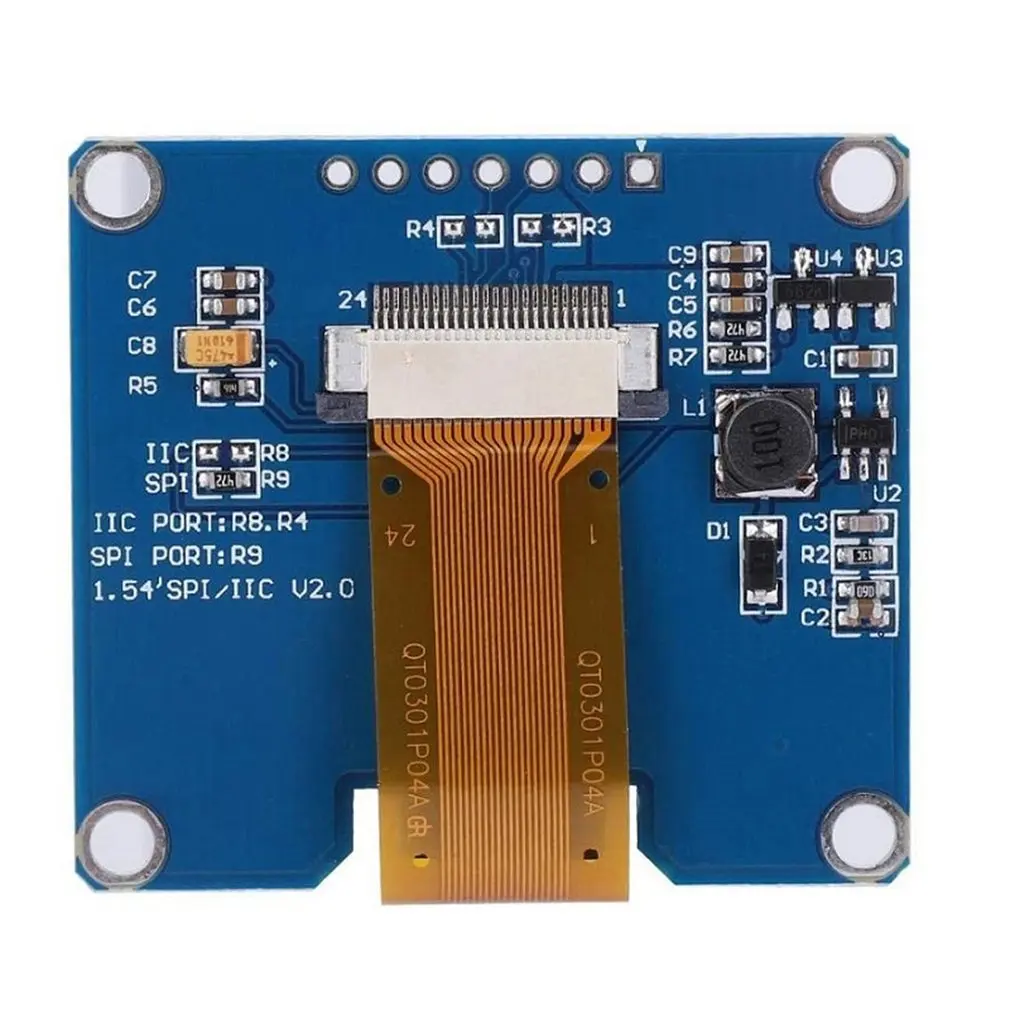

| Interface | SPI / I2C |
| Pins | SPI: GND, VCC, SCL, SDA, RES, DC, CS |
| Drive Voltage | 3.3V – 5V |
| Display Colors | White, Yellow, Blue (optional) |
| Size | Compact 1.54-inch module |
| Condition | 100% Brand new |
SPI Interface Definition:
1. GND: Power Ground
2. VCC: Active power
3. SCL: Clock line
4. SDA: Data Line
5. RES: Reset line
6. DC: Data / Command
7. CS: Chip selection (can be grounded directly if not used)
Package Includes:
- 1 x Display Module
- 1 x 7Pin
