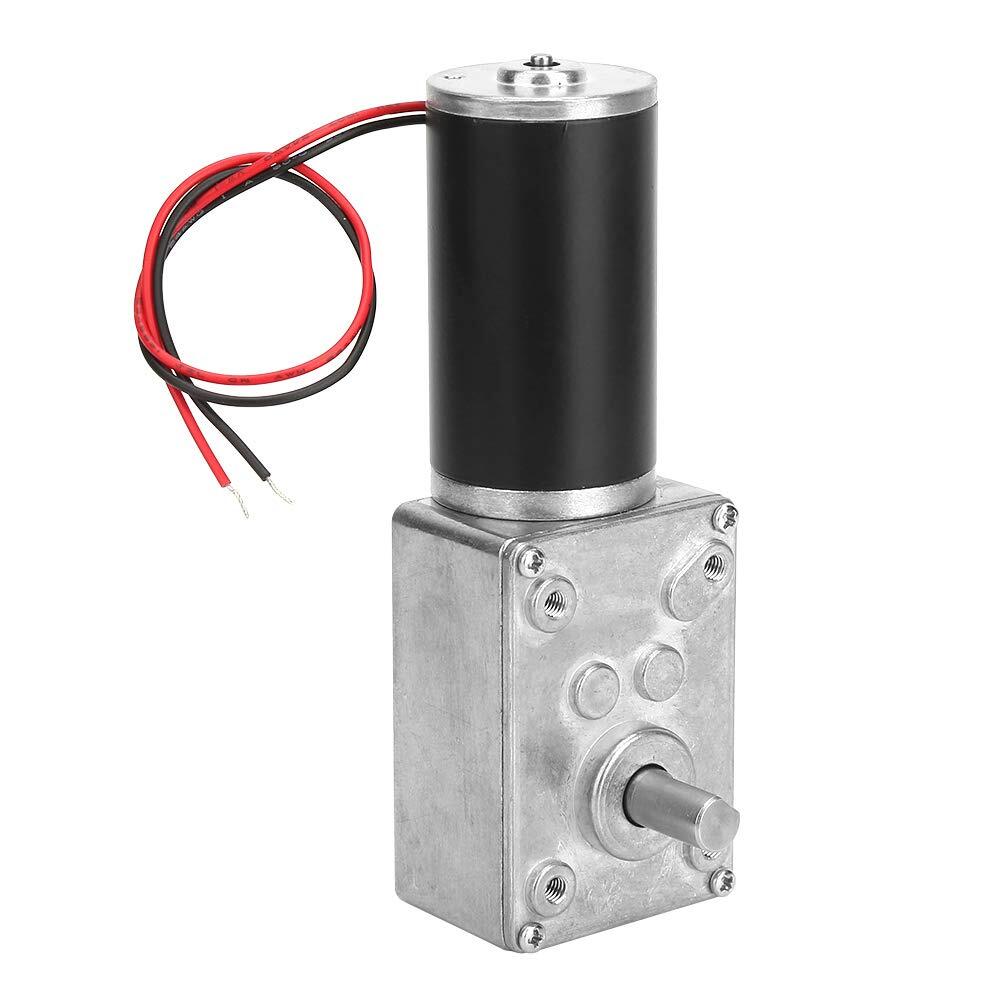

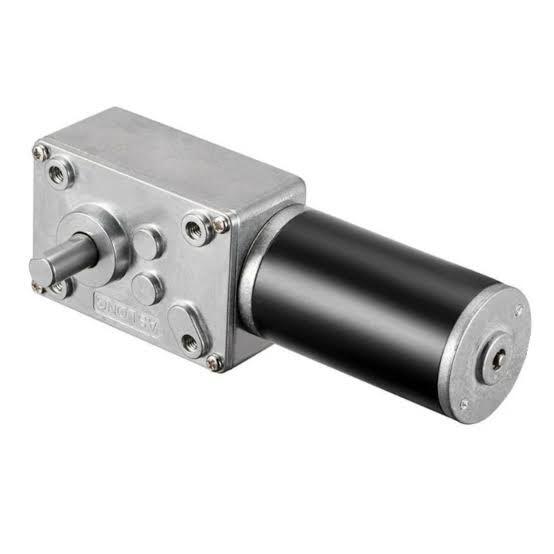

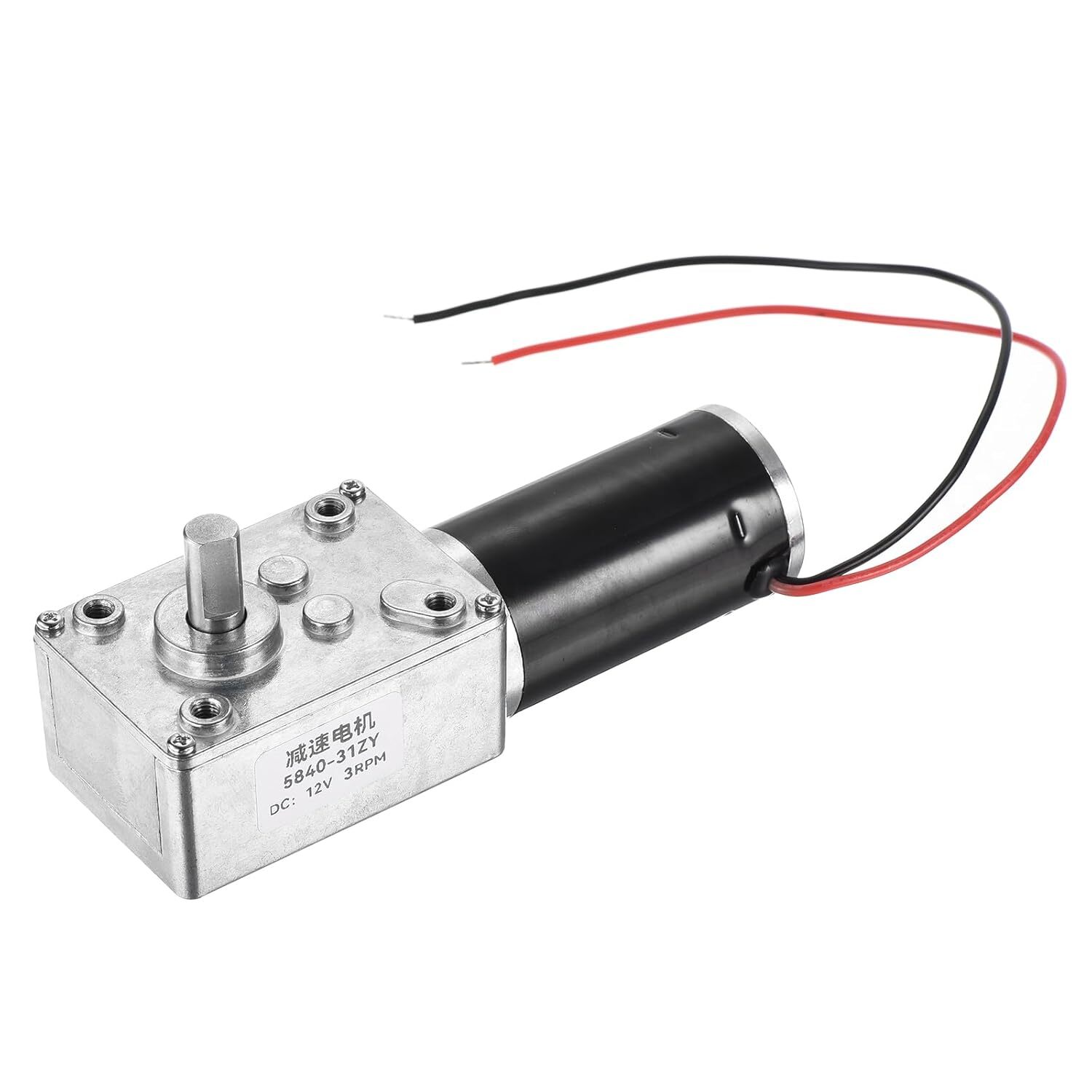

D8MM Shaft 5840-31ZY 12V 250RPM/MIN High Torque Brushless DC Worm Gear Reduction Motor

D8MM Shaft 5840-31ZY 12V 250RPM/MIN High Torque Brushless DC Worm Gear Reduction Motor are Low-speed DC motors with worm metal gearboxes for high torque with permanent magnet motors known for delivering high power in a compact.
These motors are Ideal for applications requiring motor speed adjustment and reversing capabilities.

Features:

• The motor is a Gear DC motor with a micro-turbine worm, you can change the wiring connection to change motor rotation
• Turbo worm geared motor with self-lock, that is, in the case of motor without electric, the output axis is fixed, self-lock
• The reducer output shaft is arranged vertically with the motor shaft, the whole motor output
• Metal gears are characterized by high precision, durability, and low loss.

Specifications:

• Model:  -5840-ZY31
• Rated Voltage: 12V
• Revolving Speed: 250RPM
• Rated Torque:  70 kg. cm
• Stall Torque: 110 kg. cm
• Rated Current: 0.12 A
• Stall Current: 3.1  A
• Gear Material: Full Metal
• Shaft Size : 8 x 15mm(D*L)
• Gearbox length(L) :58 mm
• Shaft Type : D Type

Applications:

• Bank Equipment
• Safe Box
• Paper Feeder
• Intelligent Gas Meter
•  Machine, Accessories
• Ad Equipment
• Analysis Instrument
• Electronic Game Machine
• Remote Control Curtains
• Locks
• Paper Shredders
• Copying Machines

Package Includes:

1pc x D8MM Shaft 5840-31ZY 12V 250RPM/MIN High Torque Brushless DC Worm Gear Reduction Motor
