Description
Specification
| Attribute | Value |
|---|---|
| Standard Frequency | 8MHz |
| Mounting Type | Surface Mount |
| Load Capacitance | 18pF |
| Package Type | SMD |
| Pin Count | 2 |
| Length | 5mm |
| Width | 3.2mm |
| Height | 1.1mm |
| Dimensions | 5 x 3.2 x 1.1mm |
| Frequency Tolerance | ±20ppm |
| Frequency Stability | ±30ppm |
| Series Resistance | 100Ω |
| Frequency Ageing | ±5 ppm/yr |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Mode of Oscillation | Fundamental |
Technical data sheets
Package Includes

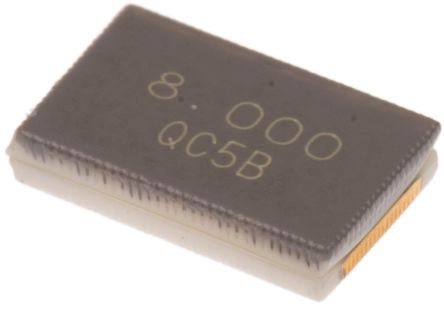

1 pc x 8MHZ 2Pin 5032 resonator Crystal smd
