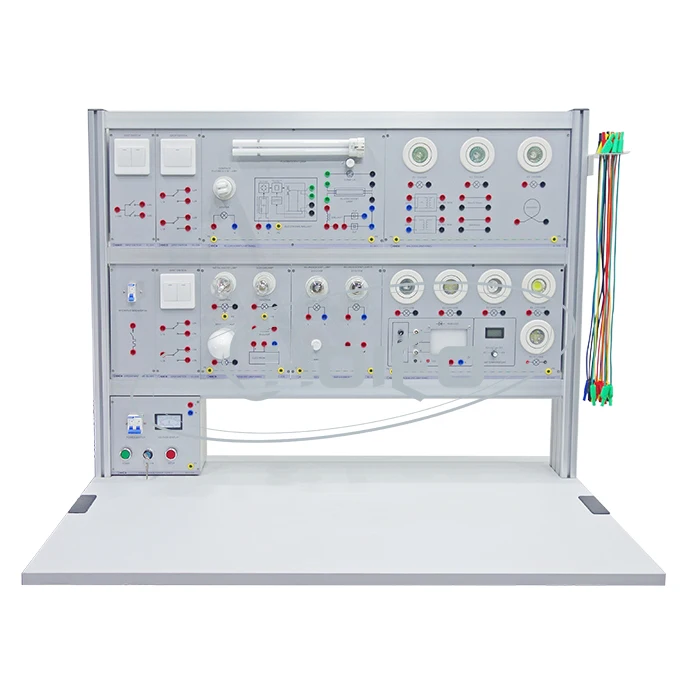

CEL-301 Lighting Technology Trainer

Description

• This is a comprehensive lighting technology training and experiment system, it offers an open structure platform for the build up of various lighting circuits covering almost all types of lamps used in household and commercial application.

• As with standard design, lighting lamps of specific category are gathered in dedicated panel so as to perform the comparison and verification experiments, including incandescent lamp, high pressure vapor lamp, RGB & LED lamp, halogen lamp, fluorescent lamp, etc. Besides, switches of different control methods are adopted for the multiple lighting circuits construction.

• All terminals are led out on printed composite panel with 4mm safety socket and connected by full sealing sheathed pluggable connector. The complete unit is movable with lockable truckles on bottom and available for training content extension by using other CHOIEO modular electrical units

TRAINING CONTENT

• Fluorescent lamp control circuit

• Starter, electronic ballast and inductive ballast

• Compact fluorescent lamp

• Low voltage halogen lamp, transformer

• Influence of cable cross section and cable length

• Influence of a wound cable on the brightness

• RGB lamp PWM brightness and color control

• DC 12V LED lamp control circuit

• AC220V LED lamp control circuit with driver

• Light source working temperature and efficiency

• Dimming control

• Incandescent lamp

• High-pressure metal halide vapor lamp

• High-pressure sodium vapor lamp

• High-pressure mercury vapor lamp

• Electron trigger and ballast
