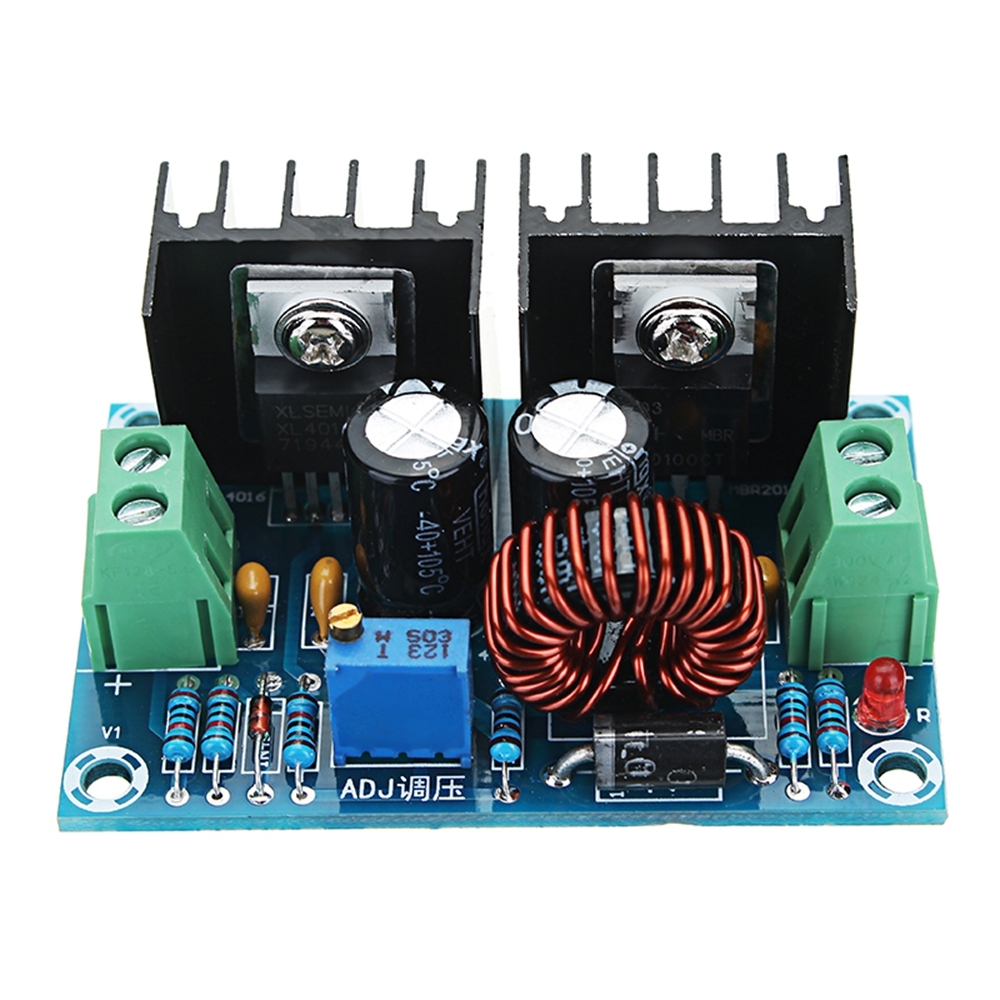

XL4016E1 200W DC 4 - 40V 8A Step Down Converter

This module adopts the XL4016 chip, which is in 180K high frequency working state, with high power and high efficiency.
Input only DC-DC power supply and maximum voltage not greater than 40V (input AC voltage or higher than 40V will damage immediately ).
This module is a step down power supply module.The maximum limit current is 8A, long-term work recommendation is less than or equal to 5A.
Because it is a step-down module, the output range is related to the input. Please keep the input & output voltage difference is more then 2V or follow the following rule:
In the case of low load current, input 12V output Max 11V, input 24V output maximum 23V, input 30V output maximum 29V, input 40V output Max 36V.

Features:
1.High power output.
2.High current output.
3.Adjustable output.
4.Wide voltage input.
5.High conversion efficiency.
6.Easy installation.
7.Strong heat dissipation.

Parameters:
1.Product name: DC-DC step-down module
2.Product model: XH-M407
3.Input voltage: DC4-40V
4.Output voltage: DC1.25-36V
5.Output current: Max. 8A
6.Output power: Max. 250W
7.Switching frequency: 180KHZ
8.Work efficiency: 95%

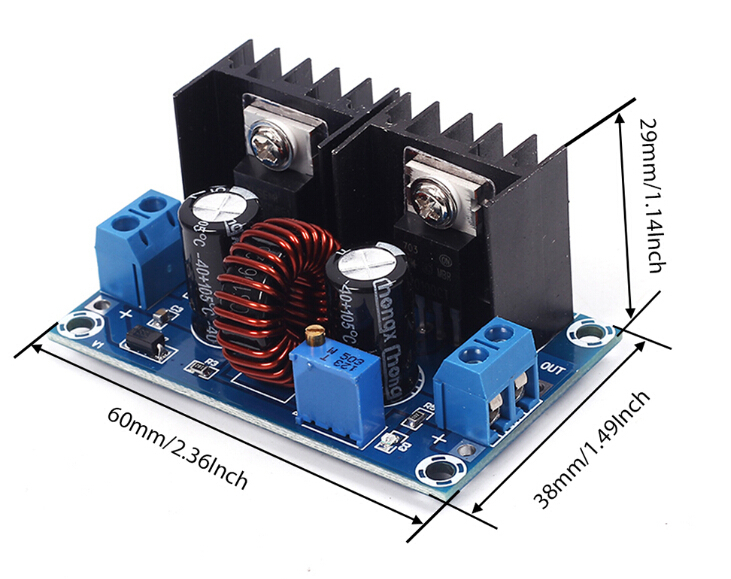

9.Appearance size: 60*37*29mm

Steps for use:
1.Determine the required output voltage;
2.Connect power to input terminal ‘IN ’ at ‘+’ and ‘-’;
3.Adjust the potentiometer and test the output voltage to make it reach the required voltage;
4.Disconnect input power and connect LOAD;
5.Connect input power.

Application:
1. hatch control
2. equipment cabinet
3. air conditioning system
4. temperature control protection
5. Refrigerator
6. Freezer
7. Water heater
8. Hosts

Package Includes

1pc x XL4016E1 200W DC 4 - 40V 8A Step Down Converter
