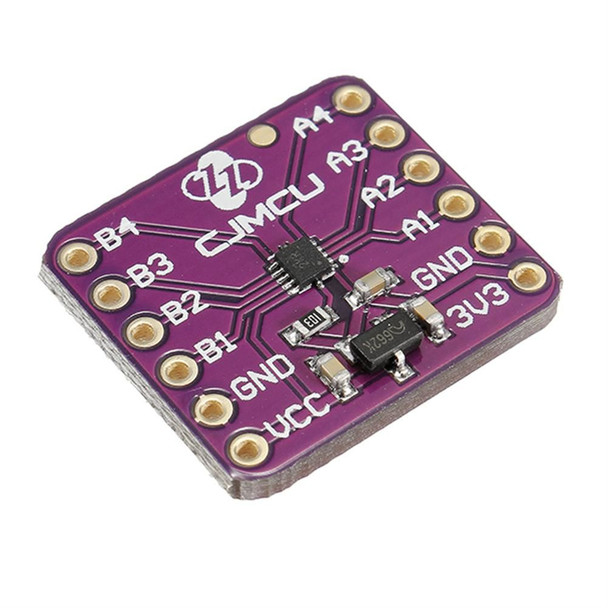

TXB0104 Bidirectional Voltage Level Translator

Name: TXB0104 Bidirectional Voltage Level Translator
Brand: diymore
SKU: PEDHL57
Price: 400 KES
Availability: InStock

(No reviews yet) Write a Review

KES400.00

Quantity:

Frequently bought together:

Description

Features:

CATEGORY	SPECIFICATIONS
Product Name	CJMCU-401 4-Bit Logic Level Translator Module
Type	Non-inverting voltage level translator
Channels	4-bit bidirectional translation
A Port Voltage (VCCA)	1.2V – 3.6V
B Port Voltage (VCCB)	1.65V – 5.5V
Voltage Rule	VCCA must not exceed VCCB
Function	Bidirectional level shifting between low and high voltage logic systems
OE Control	Output Enable (OE) referenced to VCCA
Power Consumption	Low power, max ICC: 5 µA
Isolation Feature	If either VCC = GND → outputs go high-impedance
Partial Power-Down	Supported (Ioff feature)
Latch-Up Protection	>100 mA (JESD 78, Class II compliant)
ESD Protection (A Port)	2500V HBM; 1500V CDM
ESD Protection (B Port)	±15kV HBM; 1500V CDM
Key Features	Wide voltage translation range
	Safe bidirectional logic level conversion
	High ESD and latch-up protection
	Low power consumption
	Supports partial power-down operation
Applications	Microcontroller interfacing
	Mixed-voltage digital systems
	Sensor and peripheral communication
	Embedded systems and IoT projects
