Description
Features:
| CATEGORY | SPECIFICATIONS |
|---|---|

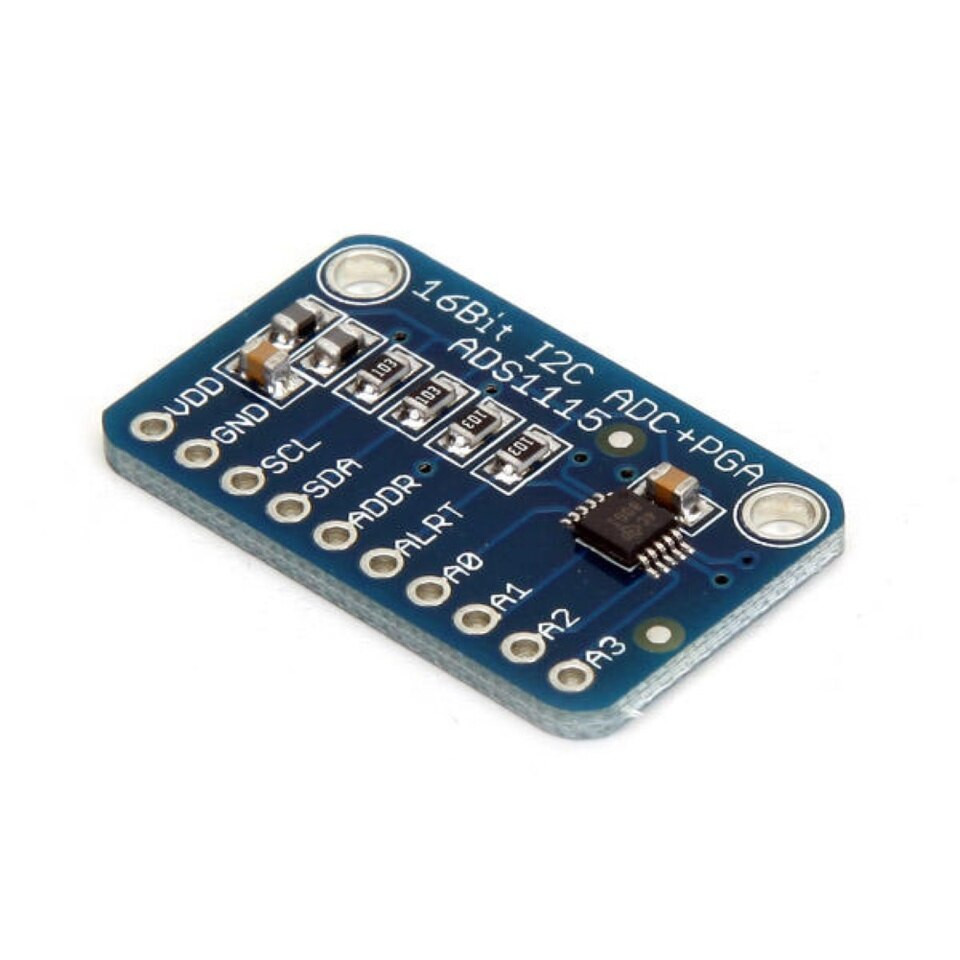

| Product Name | ADS1115 16-bit ADC Module |
| Resolution | 16-bit precision |
| Interface | I2C |
| Input Channels | 4 single-ended or 2 differential inputs |
| Sampling Rate | 8 SPS to 860 SPS |
| Supply Voltage | 2.0V – 5.5V |
| Current Consumption | 150 µA (continuous mode); auto shut-down in single-shot mode |
| Programmable Gain Amplifier | Yes, up to ×16 |
| Voltage Reference | Internal low-drift reference |
| Oscillator | Internal oscillator |
| Comparator | Programmable comparator included |
| I2C Address Range | 0x48 – 0x4B (selectable via jumpers) |
| Key Features | High-precision 16-bit ADC over I2C |
| Supports single-ended and differential inputs | |
| Low power consumption | |
| Built-in PGA for small signal amplification | |
| Easy microcontroller integration | |
| Applications | Analog signal measurement |
| Sensor data acquisition | |
| Embedded systems requiring high-resolution ADC | |
| Raspberry Pi and Arduino projects |
Package Includes:
1 x ADS1115 Breakout Module
