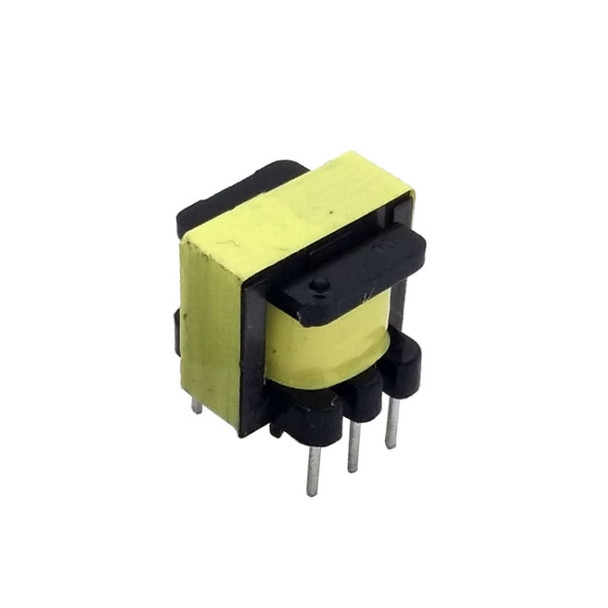

600 : 600, Audio isolation transformer

Audio frequency isolation transformer 600 ohm. This type of transformer is 600 : 600 ohm. The impedance of 600 ohm is the AC impedance. The DC impedance is about 80 to 100 ohm.

Features:

• Frequency Range of 50-Hz 100 KHz
• AC Impedance Ratio of about 600 : 600 ohm
• Inductance of about 1.6 H
• Moreover, it can withstand Voltage of 1000 V

Applications of Audio frequency isolation transformer

• Used in Telephone audio isolation
• Also used in Telephone recording box
• When Receiving DTMF signal or FSK caller ID, and it can be use to isolate the noise.
• It can also be used on Audio or video signal circuit.
• Lastly, in Power amplifier circuit to set top boxes and other equipment to isolate noise.

Package Includes

1pc x 600 : 600, Audio isolation transformer
