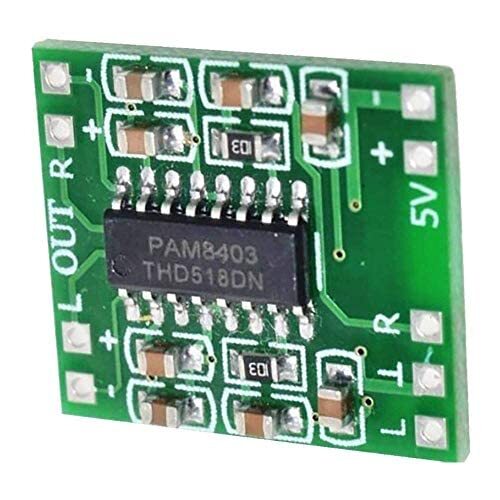

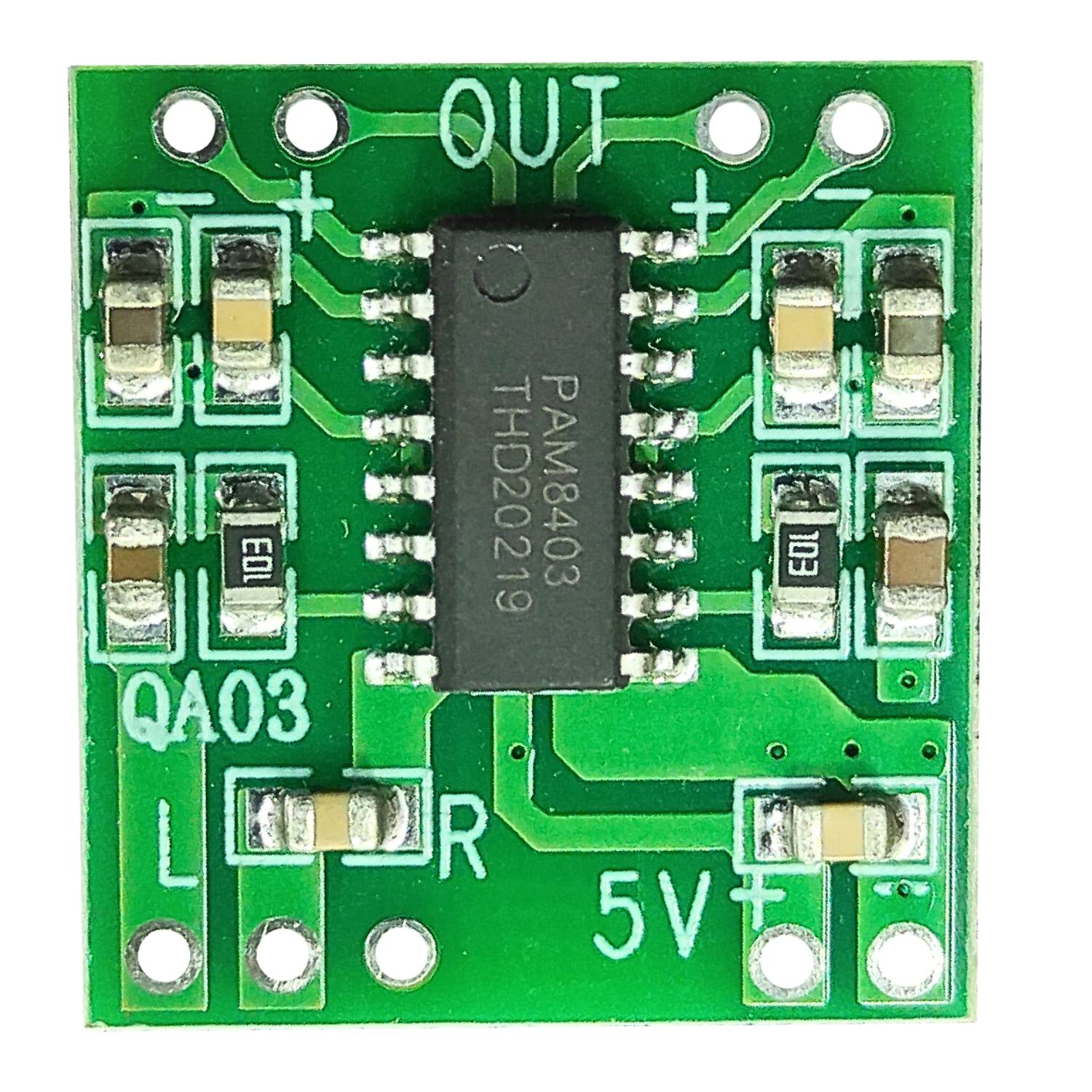

PAM8403 2X 3W Mini Digital Power Amplifier Board AMP Class D 2.5-5V Input

PAM8403 digital amplifier board is a 2 channel 3W, class D audio amplifier offering low THD+N. It allows the device to drive the speaker directly, requiring no low pass output filters. As a result, save the system cost and PCB area. This module operates at a voltage range from 2.5V to 5.5V. This makes it ideal for adding the audio capability to our MP3, MP4 player. PAM8403 audio amplifier offers high efficiency and high-quality sound reproduction. PAM8403 is a Filterless module, as a result it offers low Quiescent Current and low EMI. With the same no of external components, the PAM8403  digital amplifier board performs much better than class-AB amplifiers.

PAM8403 audio amplifiers are available as SOP -16 pin packages. A 0.47uf ceramic capacitor reduces the noise caused by the power supply coupling into the output drive signal. This module offers a high life expectancy of up to 15 years make it suitable for battery and portable electronics products. These are also used for a long time steady usage as it features low harmonic distortion. PAM8403 provides a high amplification efficiency of 85% makes it suitable for a wide range of applications.

Features

• Super mini volume: 1.85 x 2.11 cm.Can be easily placed in a variety of digital products within a small space, high efficiency amplification
• Dual-channel stereo, 5V power supply can output 3W +3 W power, can be directly driven 4Ω, 8Ω small speakers, the output power, enough energy, good sound quality.
• Excellent noise suppression, no audio input in the case of ear close to the speaker can not hear any noise.
• The unique Class D digital powerless board with LC filter can be powered directly from the computer's USB.
• Double-panel wiring, properly solve the wiring caused by the potential balance and crosstalk between channels

APPLICATIONS

• LCD Monitors / TV Projectors
• Notebook Computers
• Portable Speakers
• Portable DVD Players, Game Machines
• Cellular Phones/Speaker Phones



Package Includes

1pc x PAM8403 2X 3W Mini Digital Power Amplifier Board
