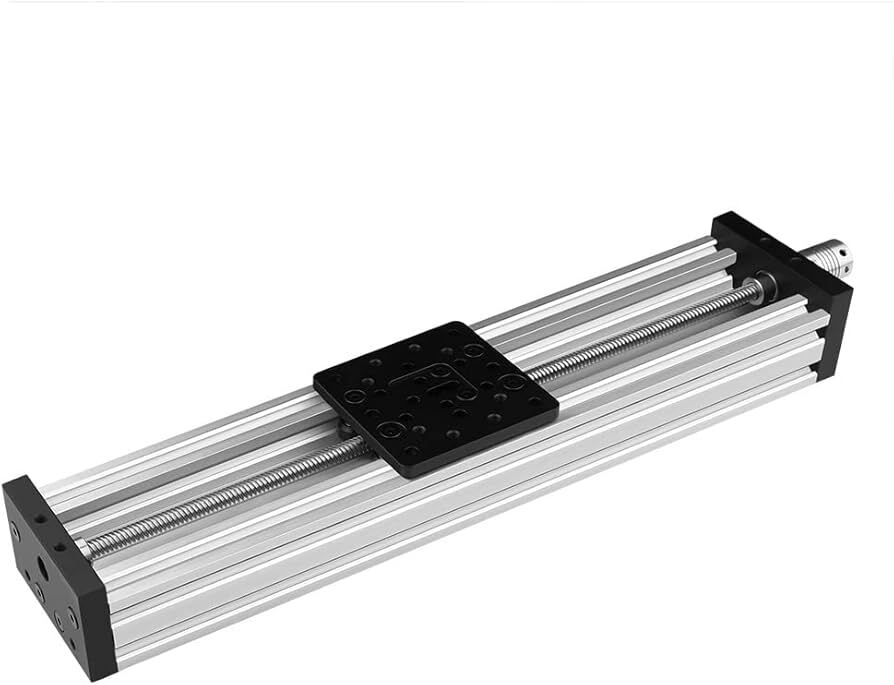

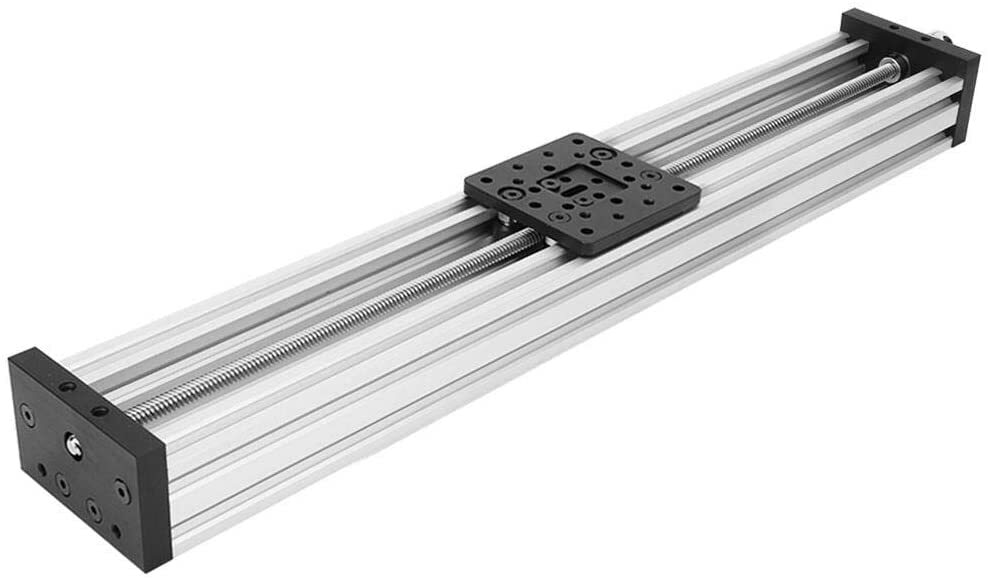

3d printer Z axis slipper Openbuilds carving machine Length 500mm

This Z-axis slider is a pre-assembled linear motion module designed in the OpenBuilds standard for use in 3D printers, CNC routers, engraving machines, and laser cutters. With a 500mm vertical length, it provides reliable Z-axis motion using a rigid aluminum V-slot rail, precision wheel carriage system, and mounting plate.

The module ensures smooth travel and strong load-bearing capacity, essential for precise vertical control in carving or printing applications. It can be easily mounted onto existing frames and is compatible with NEMA17/NEMA23 stepper motors, GT2 belt, or lead screw drives.

Specifications:

• Travel Length: 500mm
• Material: 2020/2040 aluminum V-slot profile + POM Delrin wheels
• Mounting Plate: Aluminum (pre-drilled for motor, spindle, or extruder)
• Wheel Type: V-slot compatible Delrin solid wheels
• Bearing Type: 625ZZ (in wheels)
• Drive Compatibility: GT2 timing belt, T8 lead screw (depending on setup)
• Motor Mount: NEMA17/NEMA23 (depending on plate style)
• Color: Silver or Black (anodized finish)
• Weight: Varies by configuration (~0.8–1.2kg)

Features

• Smooth and silent vertical motion
• Precise linear tracking using V-slot wheels
• Lightweight and rigid for high accuracy
• Easy installation and maintenance
• Modular design compatible with many motion platforms
• Adjustable eccentric spacers for wheel tension tuning

Applications:

• Z-axis for 3D printers (e.g., Delta, CoreXY, custom builds)
• CNC carving machines and routers
• Laser engraving platforms
• Pick-and-place robotic arms

Package Includes

1 X 3d printer Z axis slipper Openbuilds carving machine Length 500mm
