Description
The ESP-12S is a WiFi module based on ESP8266, with built-in 32Mbit Flash, in the small SMD16 package. There're also onboard PCB antenna and metal shield. In short, it's a small form factor and fairly high cost effective WiFi module.
With the pre-flashed AT firmware, you can control the module through UART AT commands easily. The module integrates MCU inside, supports other developments like Lua/Micropython/Arduino to achieve flexible and fast prototyping, make it easy to integrate the module into IoT applications.
Features:
| CATEGORY | SPECIFICATIONS |
|---|---|
| Product Name | ESP-12E WiFi Module (ESP8266 Based) |
| WiFi Standard | 802.11 b/g/n |
| Processor | Tensilica L106 32-bit MCU |
| Operating Frequency | 80 MHz / 160 MHz |
| Flash Memory | 32 Mbit |
| ADC | 1-channel 10-bit high precision ADC |
| Interfaces | UART |
| GPIO | |
| ADC | |
| PWM | |
| I2C | |
| Antenna | Onboard PCB antenna |
| Package Type | SMD16 |
| Wireless Features | Integrated Wi-Fi MAC/BB/RF/PA/LNA |
| Baud Rate | Up to 4 Mbps |
| Power Features | Multiple sleep modes |
| Deep sleep current as low as 20 μA | |
| Protocol Stack | Embedded Lwip |
| Operating Modes | STA |
| AP | |
| STA + AP | |
| Networking | Smart Config |
| AirKiss | |
| Firmware Support | Pre-flashed AT firmware |
| UART local firmware upgrade | |
| Remote firmware upgrade (FOTA) | |
| Supports secondary development | |
| Development Support | Lua |
| MicroPython | |
| Arduino | |
| Windows / Linux environment | |
| Features | Compact size |
| Metal shielding | |
| Cost-effective | |
| Easy UART control via AT commands | |
| Applications | Smart home |
| Intelligent building | |
| Industrial automation | |
| Wearable devices | |
| IP camera | |
| Intelligent agriculture |
Package Includes:
1 x ESP-12E Module
Related Products
Related Products
ESP-07 ESP8266 Serial WIFI Module
Ai-Thinker
$3.47
Ai Thinker ESP-07 ESP8266 Serial WiFi Module has a highly competitive package size and ultra-low power technology. ESP-07 can be widely used in a variety of networking, for home automation,...

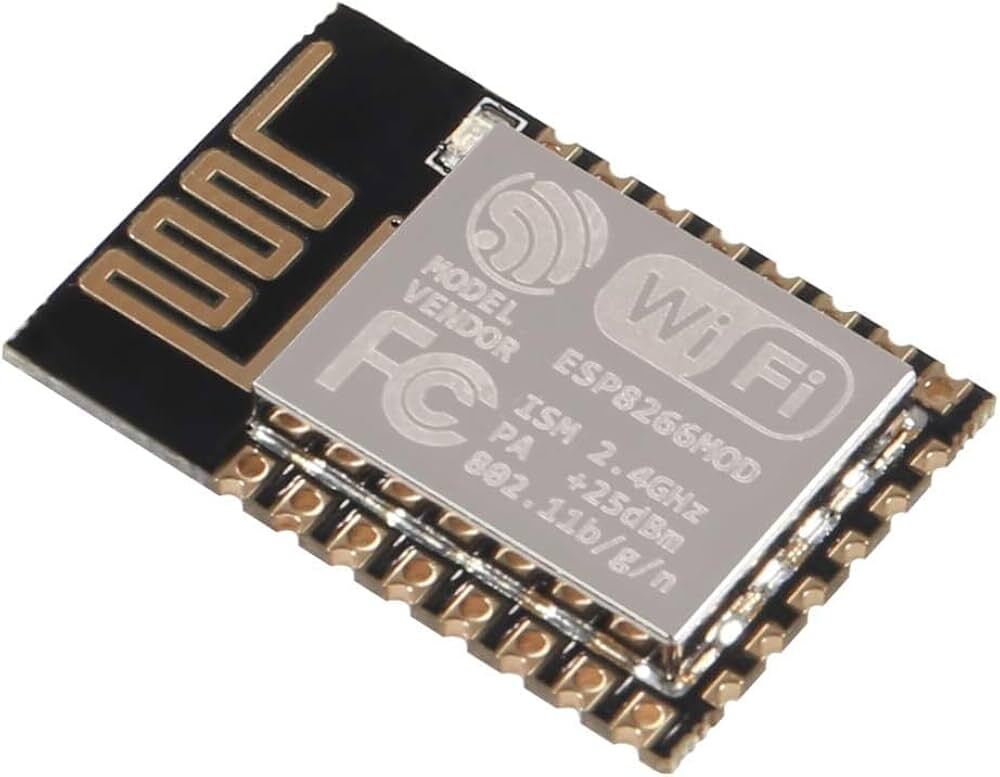

ESP-12S Wifi Module, ESP8266, 4MB
