Description
AC to DC power conversion module
This baby is a streamlined rectifier module, a rectifier filter is widely used in small transformer output, mainly used in electric power requirements is not high above, the power module design of small electric appliance box can be placed in the small circuit board, which is designed with power indicator, convenient power can be intuitive to know the power of the state.
- 1N4007 bridge rectifier filter
- Input AC voltage [6V-16V] (capacitance 25V1000UF)
- Input AC voltage [6V-32V] (capacitance 50V470UF)
- Maximum input / output current [1A]
- Use frequency range [50-60HZ]
- Conductor length (9 cm)
- PCB size mm [28*13*1.2]
Rectifier output voltage [output = input x1.414] [for example: input 12V AC, then the output 12x1.414=16.968V, which is the calculation of the no-load voltage, only for reference, there will be a deviation
Package Includes
1 pc * AC to DC 1N4007 full bridge rectifier module
Related Products
Related Products
KBP307 Bridge Rectifier 3A 700V
Logic ICs
KES50.00
Package Included :1 x KBP307 Flat bridge Bridge Rectifier 3A/700V
SOLD OUT
KBPC3510 35A 1000V Diode Bridge rectifier
Logic ICs
KES150.00
The product features:
1. current: 35A;
2. voltage: 1000V;
3. small pass general-purpose size "vacuum + oxygen protection" welding technology;
4. glass passivization

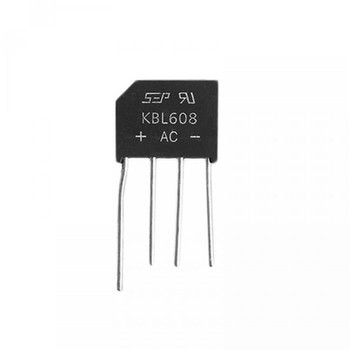

KBL608 6A 800V bridge rectifier diode
