Description
Features:
| CATEGORY | SPECIFICATIONS |
|---|---|

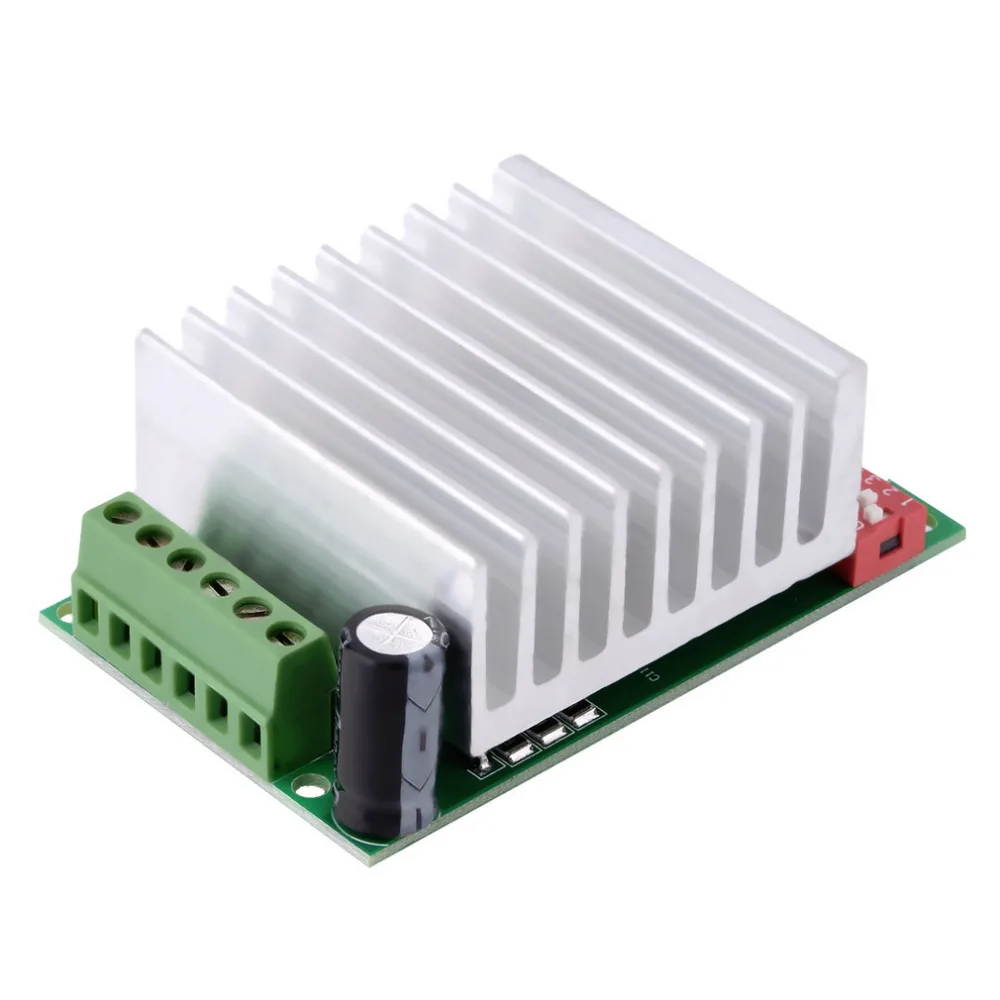

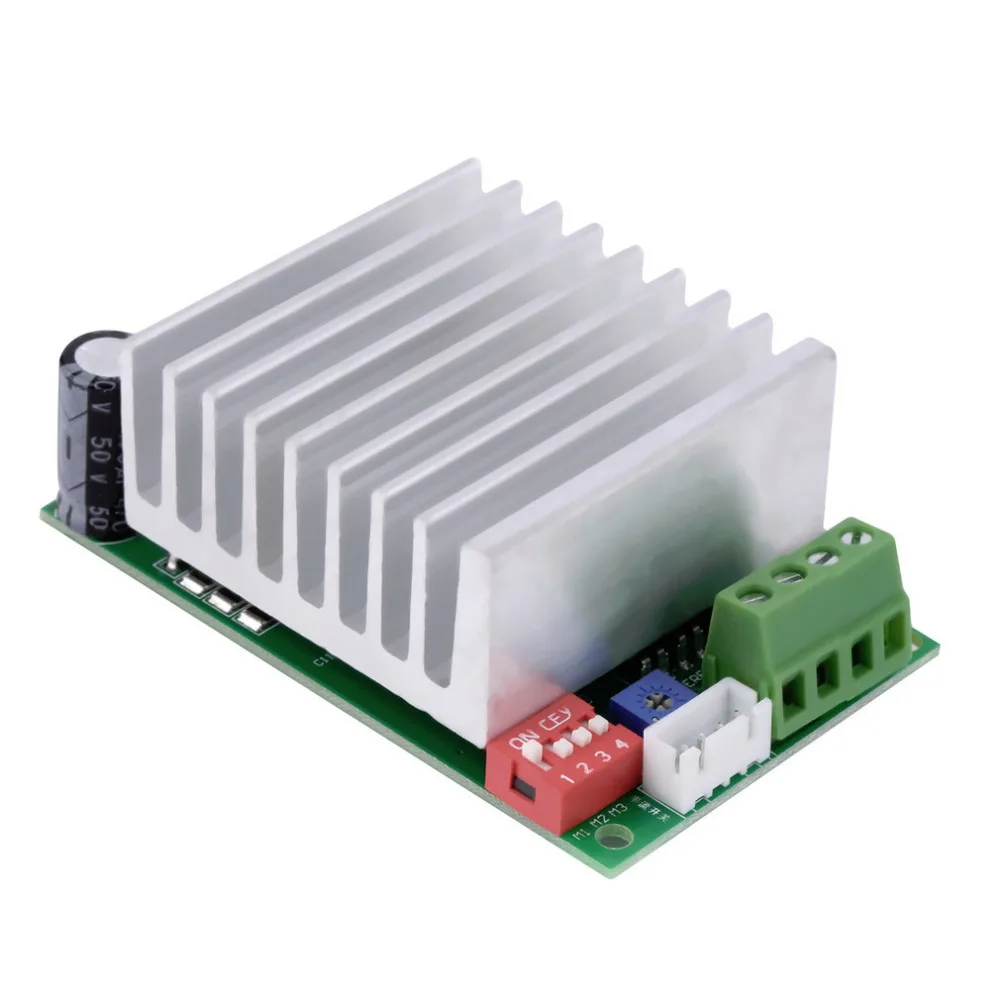

| Product Name | TB6600 Stepper Motor Driver Controller (Single Axis) |
| Driver Chip | TB6600HG |
| Application | Suitable for amateur and professional CNC systems; high-power motor support |
| Current | 4.5 A Max (5 A peak) |
| Supply Voltage | 12–32 V |
| Micro-Steps Supported | TTL 16 Micro-Step |
| Phase Support | 2 phase / 4 phase; 4-wire or 6-wire motors; common anode input with 2 terminal motor inputs |
| Protection Features | Short-circuit protection; high temperature and high current protection; automatic half current function |
| Control Features | Intelligent current control, PWM modulation for constant torque; automatic half and full flow control |
| Step Loss Prevention | 6N137 optical synchronizer for high-speed step loss prevention |
| Heat Dissipation | Aluminum heat sink |
| Dimensions | 8 × 5 × 3.5 cm |
| Net Weight | 118.3 g |
Package Includes:
1 x TB6600 Stepper Motor Driver
