Description
Introduction

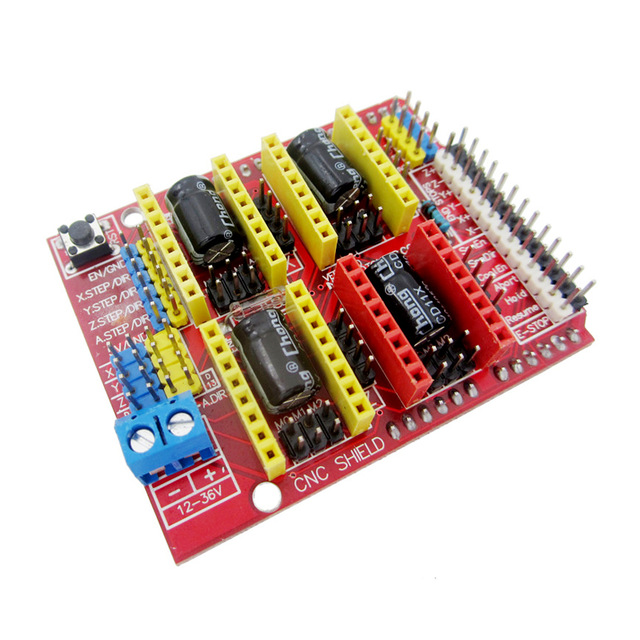

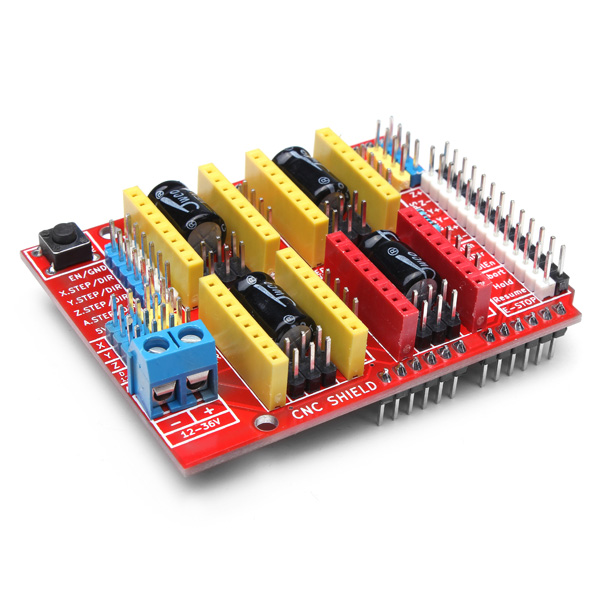

This expansion board as a driver expansion board, can be used for engraving machines, 3D printers.
It is a total of four slots, can drive four A4988 stepper motor. Each road stepper motors only need two IO ports. In other words, six IO ports can be well managed three stepper motors. Very convenient to use.
Features
- GRBL 0.8c compatible. (Open source firmware that runs on an Arduino UNO that turns G-code commands into stepper signalshttps://github.com/grbl/grbl)
- 4-Axis support (X, Y, Z , A-Can duplicate X,Y,Z or do a full 4th axis with custom firmware using pins D12 and D13)
- 2 x End stops for each axis (6 in total)
- Spindle enable and direction
- Coolant enable
- Uses removable Pololu A4988 compatible stepper drivers. (A4988, DRV8825 and others)
- Jumpers to set the Micro-Stepping for the stepper drivers. (Some drivers like the DRV8825 can do up to 1/32 micro-stepping )
- Compact design.
- Stepper Motors can be connected with 4 pin molex connectors.
- Runs on 12-36V DC. (At the moment only the Pololu DRV8825 drivers can handle up to 36V so please consider the operation voltage when powering the board.)
Package Includes
1pc x CNC Shield V3 GRBL Compatible
Related Products
Related Products
SOLD OUT
CNC V3+UNO R3+ GRBL 3D printer Kit
diymore
KES2,200.00
Specifications:Size:For Arduino board: 70 x 55mmCNC shield V3: 70 x 55mm4 A4988: 20 x 15mmHeat sink:9 x 9mmUSB data
SOLD OUT
Arduino Nano CNC Shield V4 Expansion Board
RobotLinking
KES550.00
Introduction:This 3D printer stepper motor driver CNC shield V4 needs to work with Nano board. It can be used as driver expansion board for engraving machines and 3D printers. It has in total 3...
CNC Shield V4 + Nano 3.0 + 3pcs A4988
diymore
KES2,200.00
Product Description
The Arduino CNC Shield makes it easy to get your CNC projects up and running in a few hours. It uses opensource firmware on Arduino to control 4 stepper motors using 4 A4988...
SOLD OUT
Voice Recognition Module V3
Autonics
KES3,950.00
Product Description
Voice Recognition Module is a compact and easy to use speech recognition board that can be easily interface easily with Arduino. This product is a speaker dependent voice...

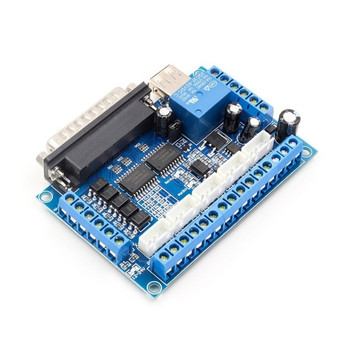

5 Axis CNC Stepper Motor Driver MACH3
RobotLinking
KES1,200.00
Specification:
Material: Plastic
Color: Blue
Size:92 x 61mm
Features:
This is a full-featured MACH3 interface board, with the following features:
SOLD OUT

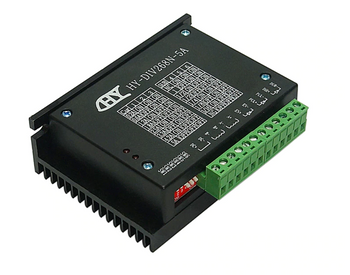

HY-DIV268N 0.2-5A CNC stepper motor driver
