Description
Features:
| CATEGORY | SPECIFICATIONS |
|---|---|

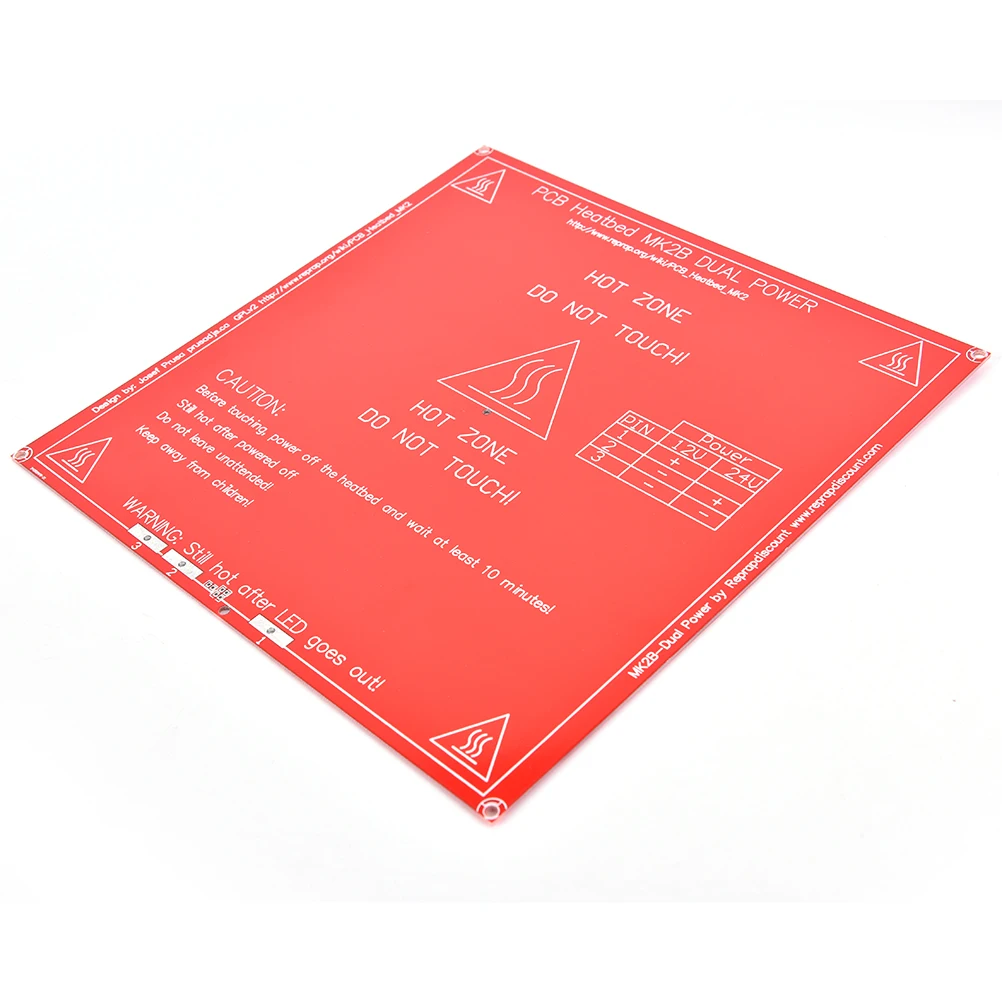

| Product Name | Custom FR4 PCB |
| Dimensions | 21.4 × 21.4 cm |
| Mounting Holes | M3, spaced 209 mm (per Eagle file on Thingiverse) |
| Material | FR4 laminate, 1.6 ± 0.15 mm |
| Power Input | 12 V or 24 V |
| Resistance | 1.0 – 1.2 Ω |
| Applications | DIY electronics, prototyping, educational projects |
| Features | Fully assembled, tested; no soldering required |
Attention:
If you use a 24V power supply, the current will be very high, causing the MOSFET to heat up significantly and potentially burn due to the high temperature.
Additionally, you need to ensure that your power supply can handle the load. At up to 576W, inadequate power may affect the normal operation of other equipment, such as motors.
Please also pay attention to overheating and using wires that are too thin, as this can cause the wires to soften or become damaged.
How to connect:
12V connection: a cable connected 1, the other cable simultaneous access 2 and 3 .
24V connection: a cable connected 2, the other cable connected 3 (1 vacant not connected)
Package Includes:
1 x PCB heatbed
