Description
Fully assembled & tested, no soldering required
It is designed to fit the entire electronics needed for a RepRap in one small package for low cost
The modular design includes plug in stepper drivers and extruder control electronics on an MEGA shield for easy service, part replacement, upgrade-ability and expansion
A number of expansion boards can be added to the system as long as the main RAMPS board is kept to the top of the stack
Size: Approx. 11.5 x 6 cm / 4.53 x 2.36 inch
It is designed to fit the entire electronics needed for a RepRap in one small package for low cost
The modular design includes plug in stepper drivers and extruder control electronics on an MEGA shield for easy service, part replacement, upgrade-ability and expansion
A number of expansion boards can be added to the system as long as the main RAMPS board is kept to the top of the stack
Size: Approx. 11.5 x 6 cm / 4.53 x 2.36 inch
Feature:
- It has Cartesian robot and the requirements of the extruder .
- Extended to control other accessories.
- Heater / fan output and three thermistor circuit MOSFET.
- Fusion 5A additional safety and component protection
- Heating control extra bed 11A fuse
- Suitable for 5 Pololu stepper driver board
- Pololu board pin socket, so they can be easily replaced or removed for future designs .
- I2C and SPI pins left for future expansion.
- All the MOSFET PWM pin is hooked into versatility .
- Servo connector for connection to the end stop block , the motor and the light emitting diodes. These connectors are gold-plated , rated current of 3A, very compact.
- SD card add - is now available from the Kliment - Sdramps
- LED indicate when the heater output
- Option 2 motors connected to the Z Prusa Mendel
Package Includes

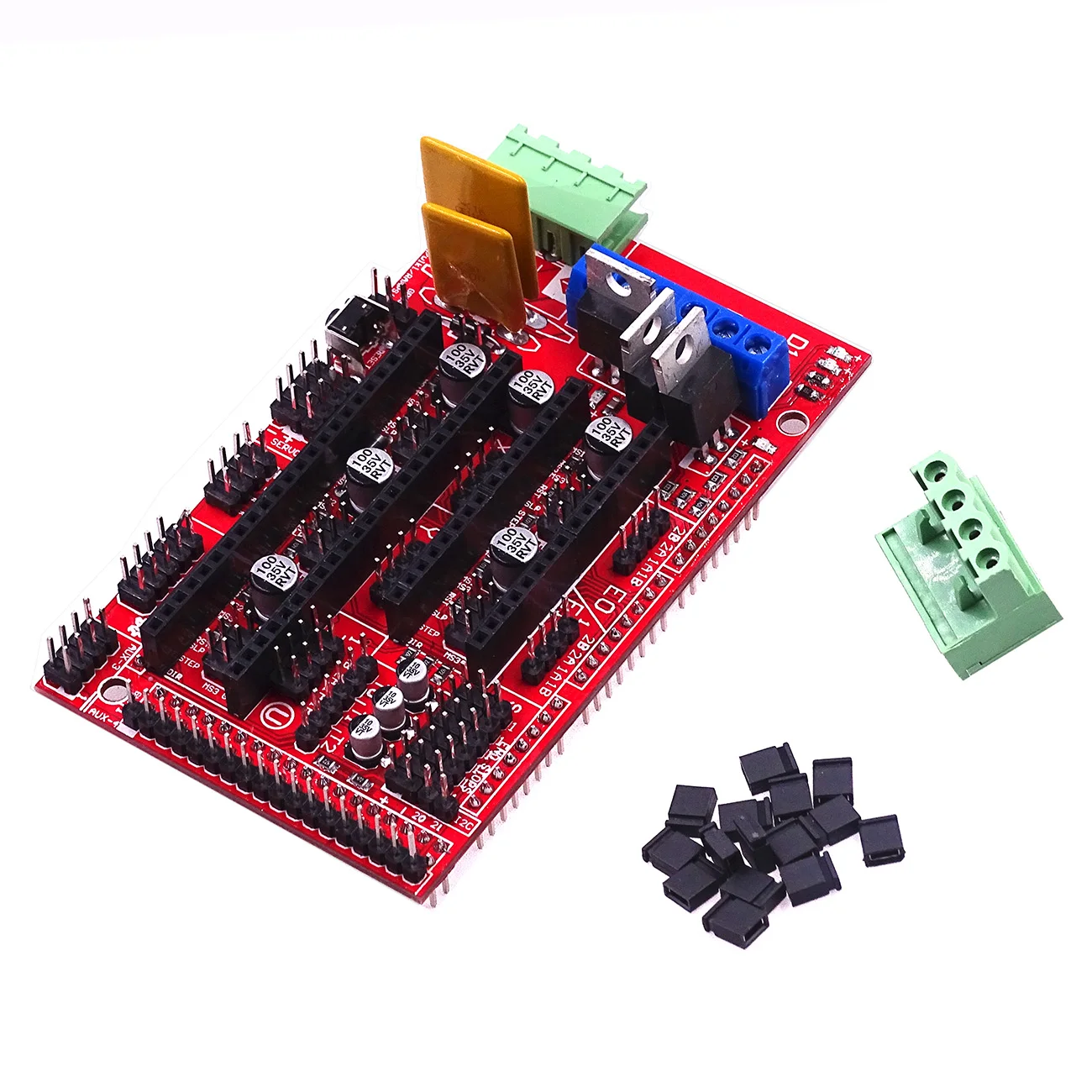

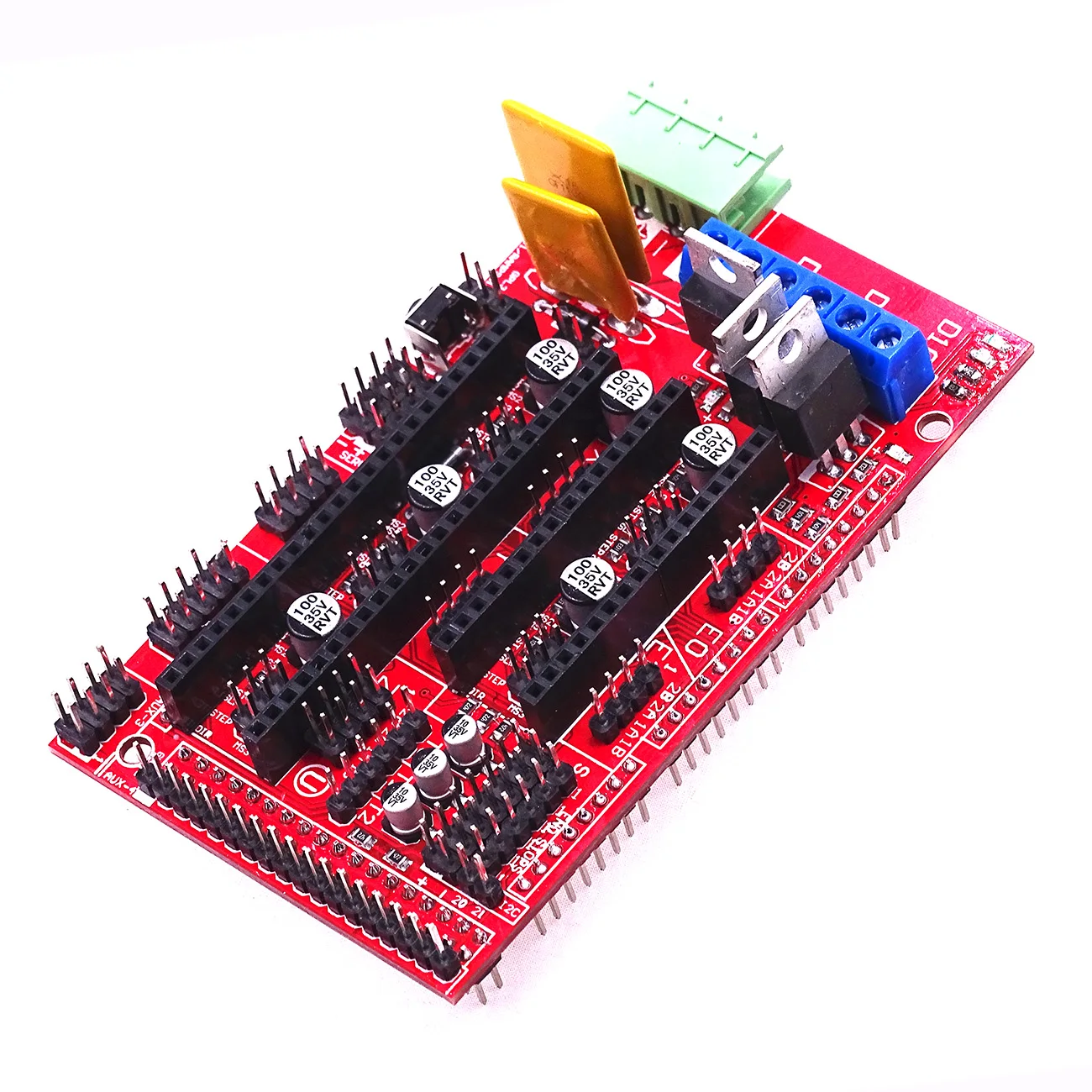

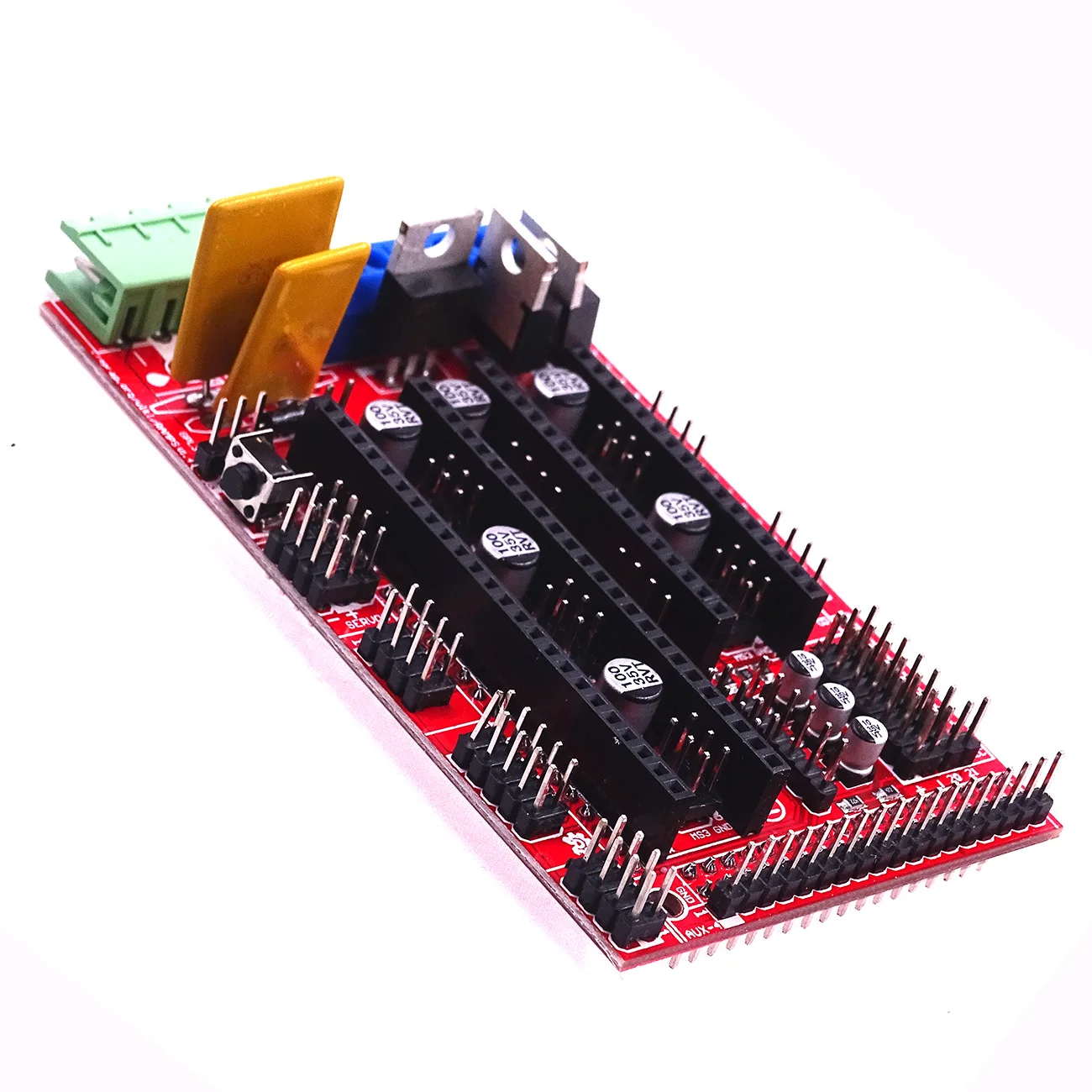

1pc x RAMPS 1.4 3D printer control panel
