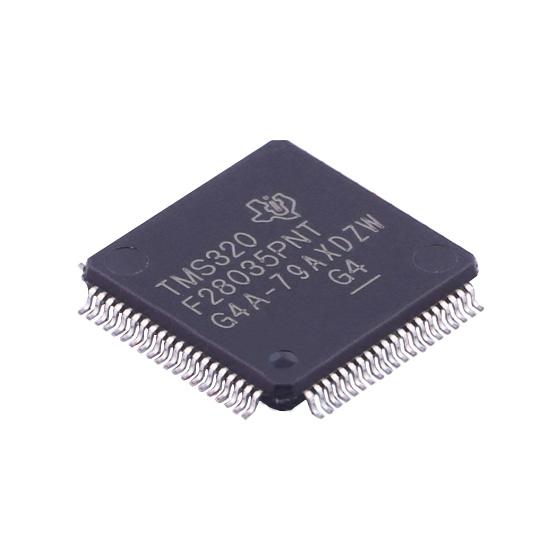

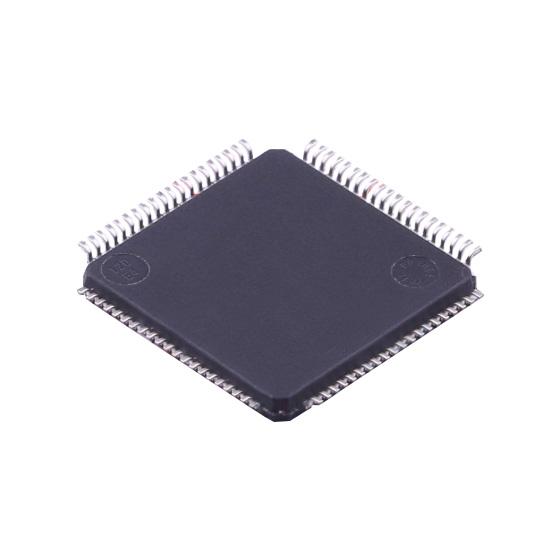

TMS320F28035PNT Microcontroller MCU C2000 32Bit

The F2803x Piccolo™ family of microcontrollers provides the power of the C28x™ core and Control Law Accelerator (CLA) coupled with highly integrated control peripherals in low pin-count devices. This family is code-compatible with previous C28x-based code, as well as providing a high level of analog integration. An internal voltage regulator allows for single rail operation. Enhancements have been made to the HRPWM module to allow for dual-edge control (frequency modulation). Analog comparators with internal 10-bit references have been added and can be routed directly to control the PWM outputs. The ADC converts from 0 to 3.3-V fixed full scale range and supports ratio-metric VREFHI/VREFLO references. The ADC interface has been optimized for low overhead/latency.

Key Features

• High-Efficiency 32-Bit CPU (TMS320C28x)
  • 60 MHz (16.67-ns Cycle Time)
  • 16 x 16 and 32 x 32 MAC Operations
  • 16 x 16 Dual MAC
  • Harvard Bus Architecture
  • Atomic Operations
  • Fast Interrupt Response and Processing
  • Unified Memory Programming Model
  • Code-Efficient (in C/C++ and Assembly)
• Programmable Control Law Accelerator (CLA)
  • 32-Bit Floating-Point Math Accelerator
  • Executes Code Independently of the Main CPU
• Endianness: Little Endian
• JTAG Boundary Scan Support
• Low Cost for Both Device and System:
  • Single 3.3-V Supply
  • No Power Sequencing Requirement
  • Integrated Power-on Reset and Brown-out Reset
  • Low Power
  • No Analog Support Pins
• Clocking:
  • Two Internal Zero-pin Oscillators
  • On-Chip Crystal Oscillator/External Clock Input
  • Dynamic PLL Ratio Changes Supported
  • Watchdog Timer Module
  • Missing Clock Detection Circuitry
• Up to 45 Individually Programmable, Multiplexed GPIO Pins With Input Filtering
• Peripheral Interrupt Expansion (PIE) Block That Supports All Peripheral Interrupts
• Three 32-Bit CPU Timers
• Independent 16-Bit Timer in Each ePWM Module
• On-Chip Memory
  • Flash, SARAM, OTP, Boot ROM Available
• Code-Security Module
• 128-Bit Security Key/Lock
  • Protects Secure Memory Blocks
  • Prevents Firmware Reverse Engineering
• Serial Port Peripherals
  • One SCI (UART) Module
  • Two SPI Modules
  • One Inter-Integrated-Circuit (I²C) Bus
  • One Local Interconnect Network (LIN) Bus
  • One Enhanced Controller Area Network (eCAN) Bus
• Enhanced Control Peripherals
  • Enhanced Pulse Width Modulator (ePWM)
  • High-Resolution PWM (HRPWM) Module
  • Enhanced Capture (eCAP) Module
  • High-Resolution Input Capture (HRCAP) Module
  • Enhanced Quadrature Encoder Pulse (eQEP) Module
  • Analog-to-Digital Converter (ADC)
  • On-Chip Temperature Sensor
  • Comparator
• Advanced Emulation Features
  • Analysis and Breakpoint Functions
  • Real-Time Debug via Hardware
• 2803x Packages
  • 56-Pin RSH Very Small Quad Flatpack (No Lead) (VQFN)
  • 64-Pin PAG Thin Quad Flatpack (TQFP)
  • 80-Pin PN Low-Profile Quad Flatpack (LQFP)
