Description
Features:
| CATEGORY | SPECIFICATIONS |
|---|---|

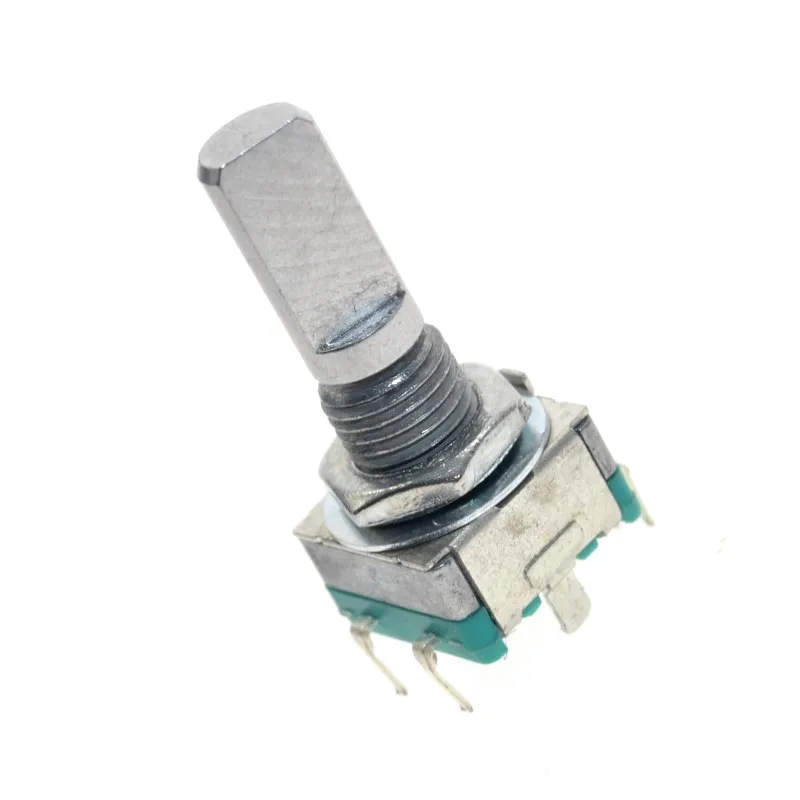

| Product Type | Continuous Rotary Encoder with Push Button Switch |
| Function | Rotary input + push-to-select data entry control |
| Output Type | 2-bit Gray code digital output |
| Positions / Pulses | 20 positions / 20 pulses per revolution |
| Operating Voltage | 5V DC (max rating 10 mA @ 5V) |
| Output Resistance | Closed circuit resistance ≤ 3 Ω |
| Shaft Diameter | 6 mm |
| Shaft Length | ~12 mm (rotary shaft), ~20 mm total shaft length |
| Module Size | 15 mm × 11 mm |
| Switch Feature | Integrated push button (press-to-select function) |
| Rotational Life | ≥ 30,000 cycles |
| Switch Life | ≥ 20,000 cycles |
| Operating Temperature | -30°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Interface Type | Digital incremental encoder output |
| Key Features | Compact design, combined rotation + push input, durable, microcontroller compatible |
| Applications | Volume control, menu navigation, data selection, embedded systems, CD player-style interfaces |
| Compatible Systems | PIC microcontrollers, ATMEL microcontrollers, Arduino-type systems |
Package Includes:
1 x Rotary Encoder Switch
