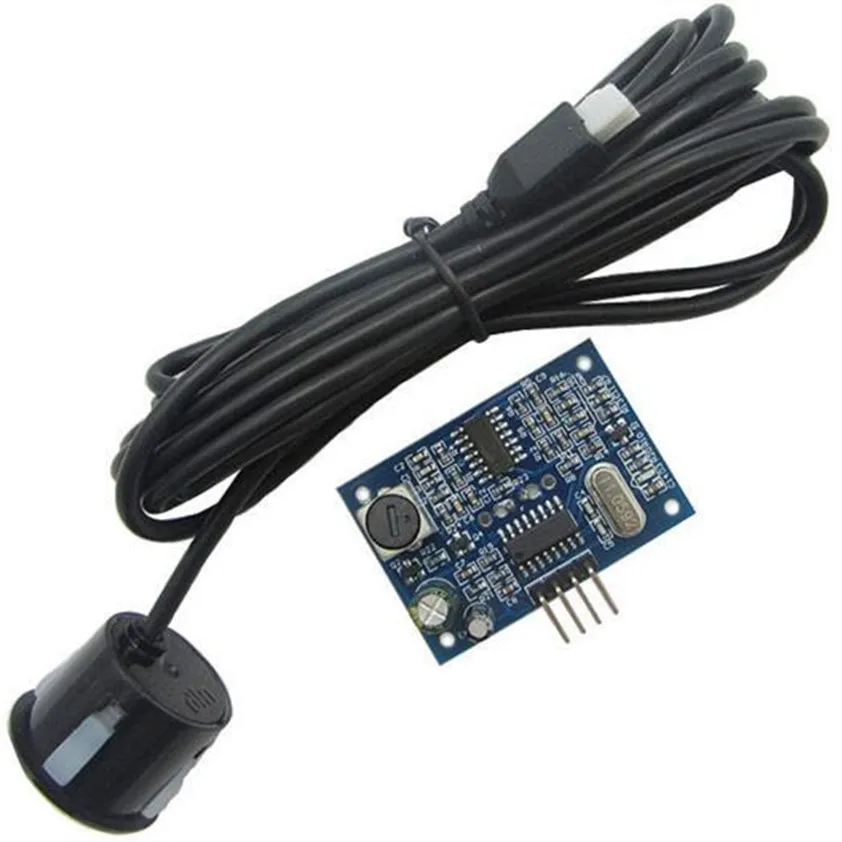

JSN-SR04T Waterproof Ultrasonic Sensor

(No reviews yet) Write a Review
SKU:
PEWRB11
Weight:
0.10 KGS
Shipping:
Calculated at Checkout
KES1,000.00

Description

Waterproof Water Proof Radar Probe Transducer Integrated Distance Measuring Sensor Ultrasonic Module for Arduino

Application

1.Horizontal distance;
2.Obstacle avoidance, automatic control;
3.The object approaches, there is a perceived
4.Traffic control;
5.Security, industrial control;
6.Artificial intelligence, and research

Electrical properties

1.Electrical parameters: JSN-SR04T
2.Operating voltage: DC 5V
3.Quiescent current: 5mA
4.Total current work: 30mA
5.Acoustic emission frequency: 40khz
6.Farthest distance: 4.5m
7.Blind: 25cm
8.Wiring:
+ 5V (positive power supply)
Trig (control side) RX
Echo (the receiver) TX
GND (negative)
9.Resolution: about 0.5cm
10.Angle: less than 50 degrees
11.Working temperature: -10 ~ 70 Celsuis
12.Storage temperature: -20 ~ 80 Celsuis

Product Features
1.Small size, easy to use
2.Low voltage, low power consumption
3.High accuracy
4.Strong anti-jamming
5.Integrated with wire enclosed waterproof probe, suitable for wet, harsh measurement occasions
