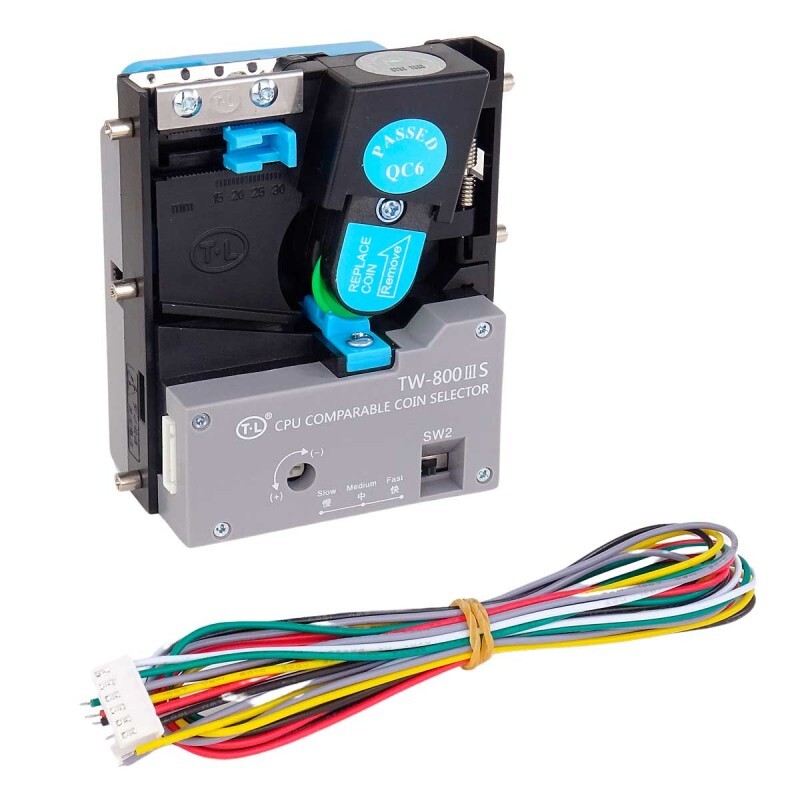

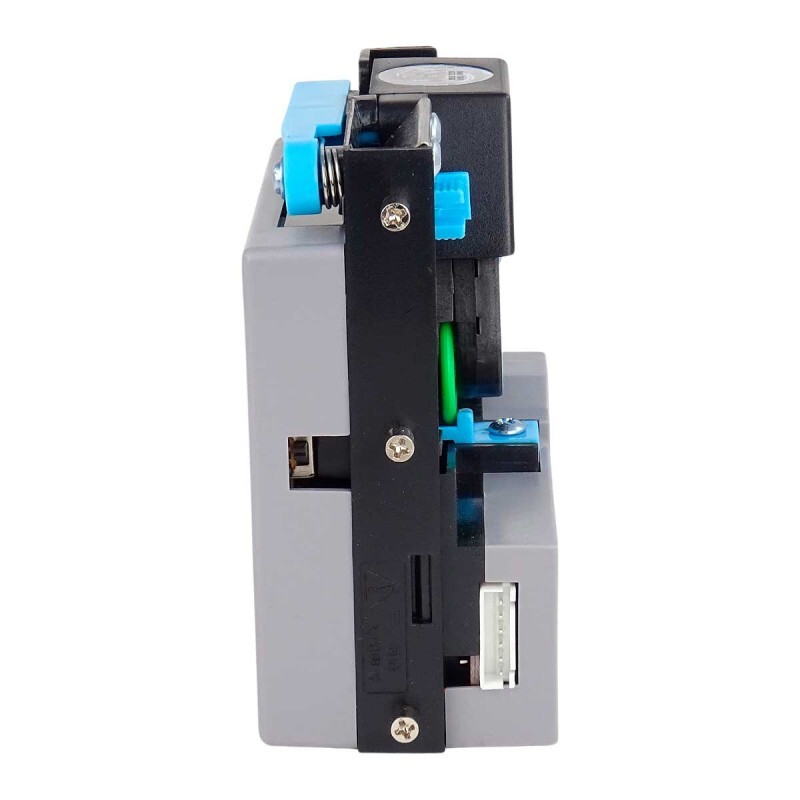

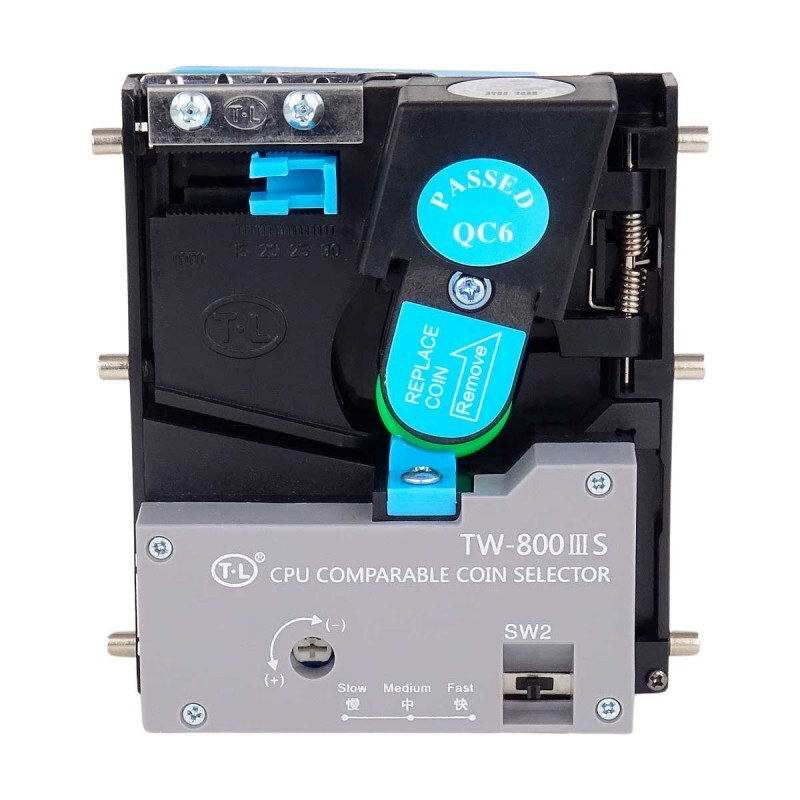

Universal Electronic Coin Selector TW-800III

(No reviews yet) Write a Review
SKU:
PEMCA73
Shipping:
Calculated at Checkout
  • Universal Electronic Coin Selector TW-800III
  • Universal Electronic Coin Selector TW-800III
  • Universal Electronic Coin Selector TW-800III
KES4,000.00

Description

Description

Arcade Express presents this magnificent Universal Electronic Coin Selector model TW-800III, compatible with the majority of coin door mechs.

The TW-800III Universal Electronic Coin Selector is compatible with most Arcade coin acceptors on the market, including both Asian and IL's Coin Door models.

You will have no problem installing this coin selector as it is extremely simple. Being an electrical coin selector it will accept more than 1 type of coin. In fact, this selector accepts 99%of tokens and coins on the market. To power the Coin Selector we will need 12V with a minimum of 0.6A. Best way is to just connect it directly to our Arcade Power Supply or to a 12V power supply.

The TW-800III Universal Electronic Coin Selector supports coins with a 22mm-27mm diameter and with a thickness between 1.7mm and 2.3mm, that is, most of the coins on the market.

Installation instructions

  1. Remove the token/plastic coin and place a coin in the sampling clamp.
  2. Select the correct mode between Normally Open (N.O.) and Normally Closed and solder one of them. That will be the coin signal.
  3. Set the coin pulsation speed: 22ms - short pulsing signal, 50ms medium pulsing signal, 100ms long pulsing signal.
  4. Set the sensitivity of the selector with the VR controller. Turn the potentiometer / knob clockwise to increase the sensitivity, counterclockwise to decrease the sensitivity.

Color wiring

White - Normally Closed (N.C.)
Green - Normally Open (N.O.)
Green - Normally Open (N.O.)
Grey - Counting Meter
Yellow - Inhibit input and output
Yellow - Inhibit input and output
Red - DC12V power supply
Black - GND Ground



Features

  • Compatible with 99% of coins and tokens on the market.
  • Easy installation
  • Adjustable coin input sensitivity
  • Suitable for slot machine token replacement
  • CPU betting control for accurate counting
  • Coin slot allows fast passage
  • Special anti-EMI design
  • Self-test and fishing alarms
  • Precise switch for smooth coin insertion
  • Coin diameter 22mm-27mm
  • Coin width 1.7-2.3mm
  • Instruction manual

Technical Specifications

Amps : 0.6A
Height : 101.5mm
Width : 44mm
Connector : 6 pin
Length : 98.5mm
Material : PVC
Weight : 263gr
Operating Temperature : Temperature -15º +75º
Voltage : DC12V
