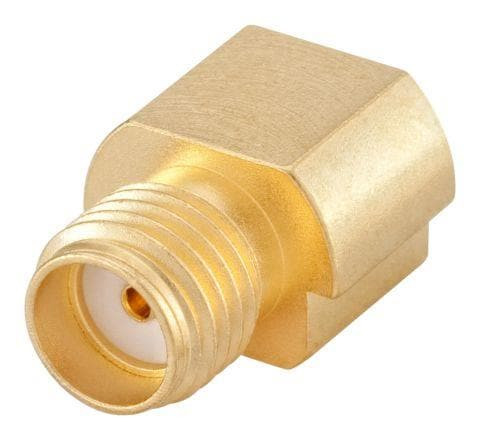

SMT SMA PCB End Launch Str Jk 50 Ohm

• Frequency Range: DC to 18 GHz, suitable for high-speed RF applications.
• Impedance: 50 Ω, ensuring minimal signal reflection.
• VSWR: ≤ 1.1 + 0.02 x f [GHz], providing stable signal integrity.
• Insertion Loss: ≤ 0.03 dB, maintaining signal strength.
• Power Handling: Up to 200 W at 2 GHz and 100 W at 10 GHz.
• Material & Plating:
  • Center contact: CuBe with gold plating (min. 0.15 µm over chemical nickel).
  • Outer contact: Brass with gold plating (min. 0.15 µm over chemical nickel).
  • Dielectric: PTFE for high-frequency stability.
• Environmental Durability:
  • Temperature range: -65°C to +165°C.
  • Compliant with MIL-STD-202 for thermal shock, corrosion, vibration, and shock resistance.
• Mechanical Robustness:
  • Mating cycles: Minimum 100.
  • Axial captivation force: ≥ 20 N.
  • Recommended torque: 0.5 Nm.
• RoHS Compliance: Meets environmental standards for hazardous substance restrictions.

Industry Applications

The SMA Right Angle Jack PCB is ideal for high-frequency and RF applications, including telecommunications, aerospace, defense, and test & measurement equipment. Its right-angle design optimizes PCB space while maintaining signal integrity, making it suitable for densely populated circuit boards in RF modules, transceivers, and microwave systems.

Note: Performance in application depends significantly on PCB layout. Proper installation by qualified personnel is required to ensure optimal electrical and mechanical performance.
