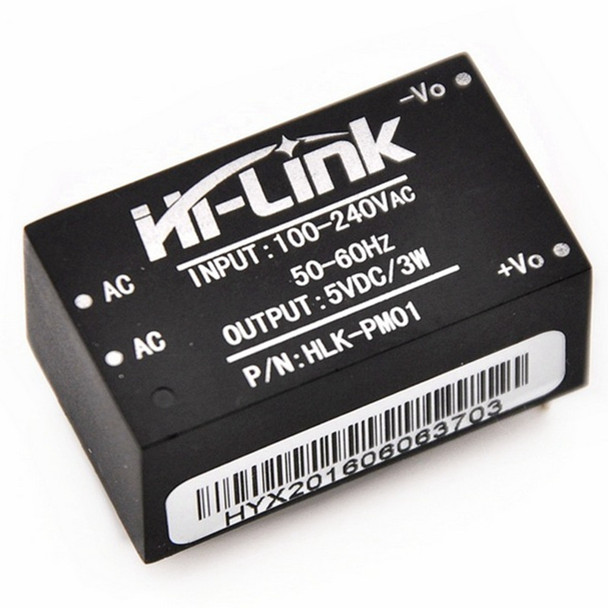

5Vdc/3W HLK-PM01 Power Supply Module

Items

TechnicalParameters

Units

Notes

No-load rated output

voltage

5.0±0.1

Vdc

Full-load rated output

voltage

5.0±0.2

Vdc

Short time maximum

output current

≥700

mA

Rated output current

600

mA

Voltage regulation

±0.2

%

Load regulation

±0.5

%

Input low voltage efficiency

Vin=115Vac, Output full load ≥73

%

Input high voltage efficiency

Vin=230Vac, Output full load ≥73

%

Output ripple and noise

(mVp-p)

≤100

Rated input voltage, output full load. With 20MHz

bandwidth oscilloscope, Load side 10uF and 0.1uF

capacitance test.

mV

Switching on/off overshoot amplitude

(Rated input voltage, output plus 10% load) ≤ 5

%VO

Output over-current protection

Output maximum load 110-150%

A

Output short circuit protection

Direct short circuit in normal output and automatic return to normal operation after removal of short circuit

No-damage to the whole device

Package Includes
1 Piece - HLK-PM01 mini Power Supply Module
