TESCA

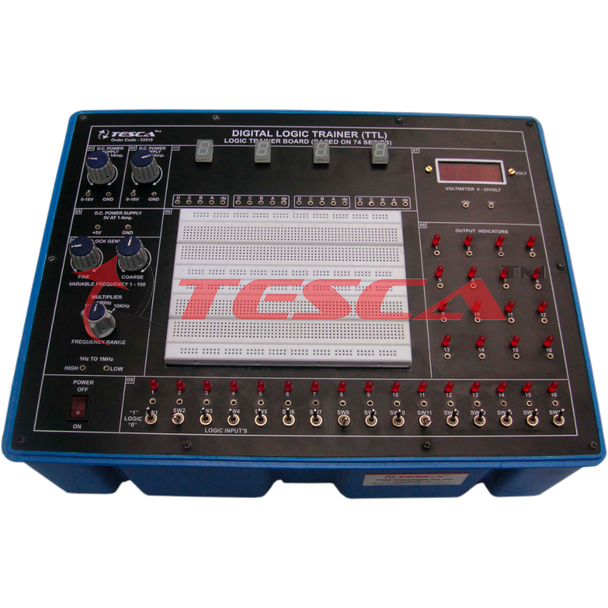

Digital Logic Trainer (TTL)/Logic Trainer Board (Based on 74 series) - Order Code 33510

(No reviews yet) Write a Review
SKU:
33510
Shipping:
Calculated at Checkout
KES0.00
Frequently bought together:

Description

Order Code: 33510
Name: Digital Logic Trainer (TTL)/Logic Trainer Board (Based on 74 series)

SPECIFICATION

Digital Logic Trainer (TTL) / Logic Trainer Board based on 74 series has been designed specifically to make the students familiar with the study of TTL ICs and verification of the truth table of logic gates, flip-flops, Gated & Master Slave JK flip-flops, Schmitt Trigger, Expanders , Binary address, Counters, Shift registers, Multiplexer (Encoder), Demultiplexer (Decoder), 8 Bit D/A Converter and 8 Bit A/D Converter etc. Large area
of Bread Board is provided on the front panel for ICs. Students can make the circuit easily on the Bread Board with the help of other accessories which are provided on the front panel of Digital Logic Trainer. Practical experience on this trainer/board carries great educative value for Science and Engineering Students.

Specifications
  1. OUTPUT D.C. VOLTAGE : Fixed 5V and 0 - ±18V.
  2. OUTPUT CURRENT: 1 Amp.
  3. LOAD REGULATION (NO LOAD TO FULL LOAD) : ± 1% of the highest specified output voltage.
  4. RIPPLE AND NOISE : less than 2 mV.
  5. VARIABLE CLOCK FREQUENCY : 1 Hz to 1 MHz by three frequency range & multiplier.
  6. LOGIC INPUTS : 16 switches for High/Low
  7. OUTPUT INDICATORS : 16, 5 mm bright Red LEDs.
  8. SEVEN SEGMENT DISPLAY : 4 digit seven segment display with decoder driver.
  9. DIGITAL VOLTMETER : Digital DC voltameter range 0 - 20V.
  10. OPERATING CONDITIONS : 0 to 40°C and 95% R.H. at 40°C.
  11. BREAD BOARD : Unique solder - less large size, spring loaded breadboard consisting of 2 Terminal Strips with 640 tie points each and 4 Distribution Strips with 100 tie points each, totalling to 1680 tie points.
  12. INPUT VOLTAGE : 230V ±10% at 50 Hz A.C. Mains.
  13. ICs PROVIDED : 29 ICs have been provided.
Note :Following ICs or equivalent can be provided.


S.NO.

LOGIC

I.C. NO.

QTY.

01.

QUAD 2-INPUT NAND GATE

7400

1

02.

QUAD 2-INPUT NOR GATE

7402

1

03.

HEX INVERTER

7404

1

04.

QUAD 2-INPUT AND GATE

7408

1

05.

DUAL 4-INPUT NAND SCHMITT TRIGGER

7413

2

06.

QUAD 2-INPUT OR GATE

7432

1

07.

EXPENDABLE DUAL 2-WIDE 2-INPUT AOI GATE

7450

2

08.

DUAL 4-INPUT EXPANDER

7460

2

09.

EDGE - TRIGGERED FLIP-FLOP

7470

1

10.

DUAL JK M/S FLIP-FLOP

4027

2

11.

DUAL JK-FLIP-FLOP

7473

2

12.

4 BIT FULL ADDER

7483

1

13.

QUAD 2-INPUT EXCLUSIVE OR-GATE

7486

1

14.

DECADE COUNTER

7490

3

15.

DIVIDE-BY-TWELVE COUNTER

7492

1

16.

4-BIT BINARY RIPPLE COUNTER

7493

1

17.

4-BIT SHIFT REGISTER

7495

1

18.

QUAD 3-STATE BUFFER

74126

1

19.

8-INPUT MULTIPLEXER

74151

1

20.

1-OF-16 DECODER/DEMULTIPLEXER

74154

1

21.

8-BIT D/A CONVERTER DAC

0808

1

22.

8-BIT A/D CONVERTER ADC

0808

1

Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.
