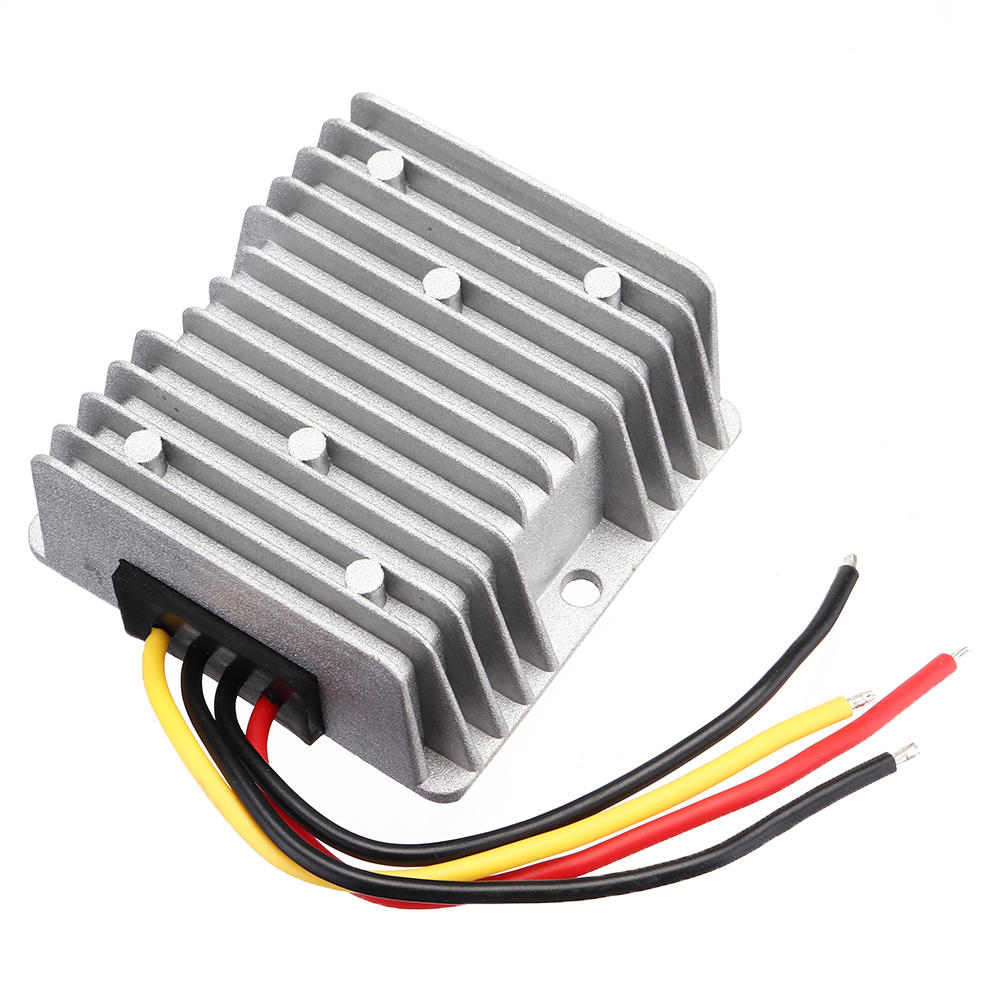

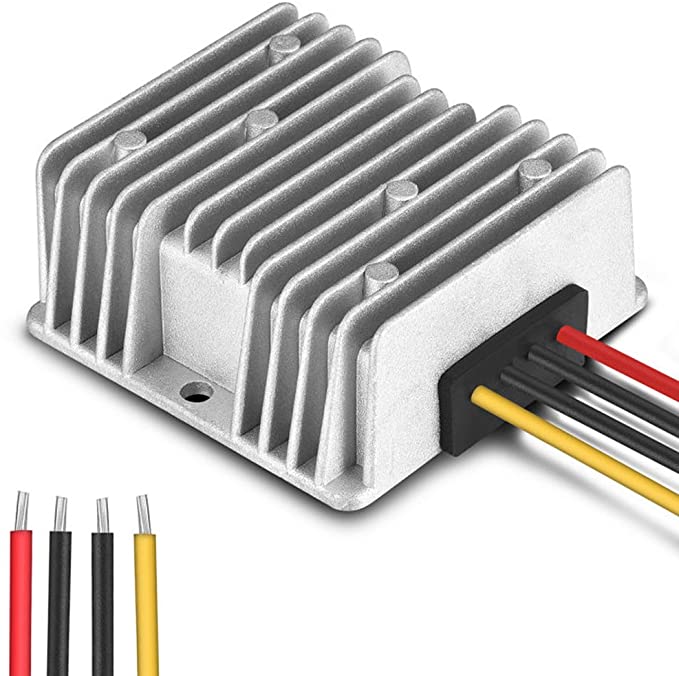

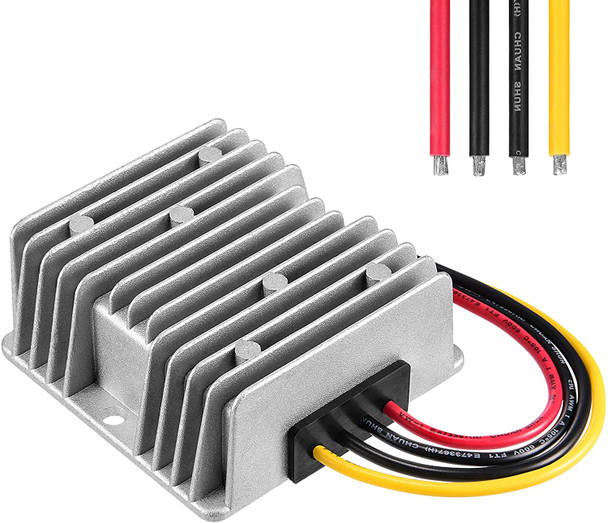

XWST DC/DC 12v to 24v 10A Non Isolated Boost Power Converter
(No reviews yet)
Write a Review
- SKU:
- PEJNO45
- Shipping:
- Calculated at Checkout
Frequently bought together:
Description
Features:
| CATEGORY | SPECIFICATIONS |
|---|---|
| Brand Name | XWST |
| Product Name | DC-DC Step-Up Converter Module (High Power 24V Output) |
| Module Type | Non-Isolated Boost Converter |
| Input Voltage | DC 12V |
| Input Voltage Range | DC 9V – 23V |
| Output Voltage | DC 24V |
| Output Current | 5A – 15A |
| Output Power | 120W – 360W |
| Conversion Efficiency | >93% |
| Ripple (Full Load) | ~40mV |
| No-Load Current | ~25mA |
| Working Temperature | -40°C to +80°C |
| Protection Rating | IP67 (Aluminum & Plastic version waterproof; iron version not waterproof) |
| Cooling / Housing | Aluminum housing for heat dissipation |
| Cable Length | 13 – 14 cm |

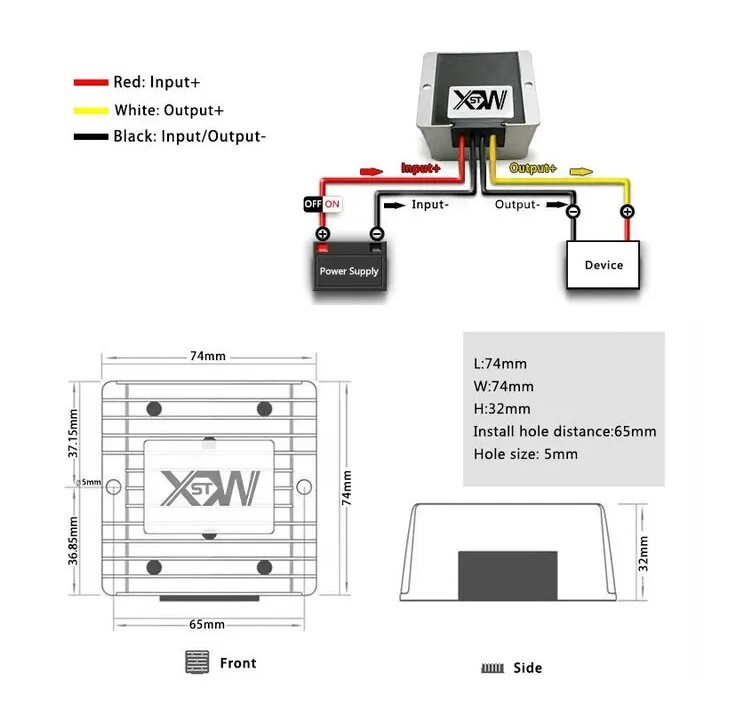

| Module Dimensions | 74 × 74 × 32 mm (Aluminum version, 5–15A) |
| Weight | ~260 g per piece |
| Key Feature | High-power step-up conversion with industrial-grade efficiency and rugged housing |
| Functionality | Stable conversion from 12V systems to 24V high-current output |
| Application | Industrial equipment, LED systems, CCTV systems, motor drives, automotive electronics, solar systems |
| Warranty | 12 months |
Package Includes:
1 x XWST DC/DC 12v to 24v 10A Non Isolated Boost Power Converter
