Olimex

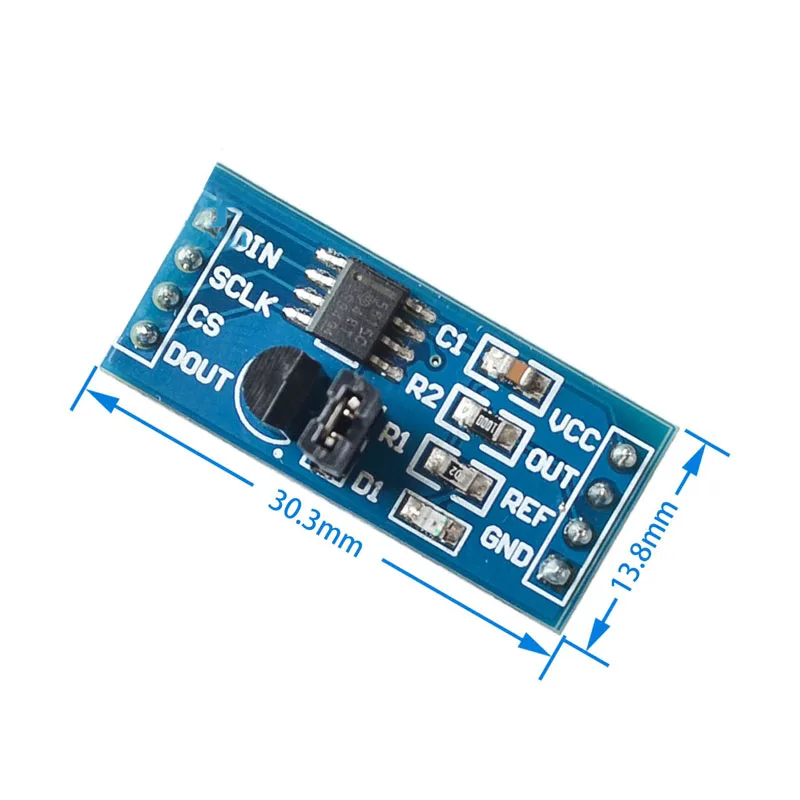

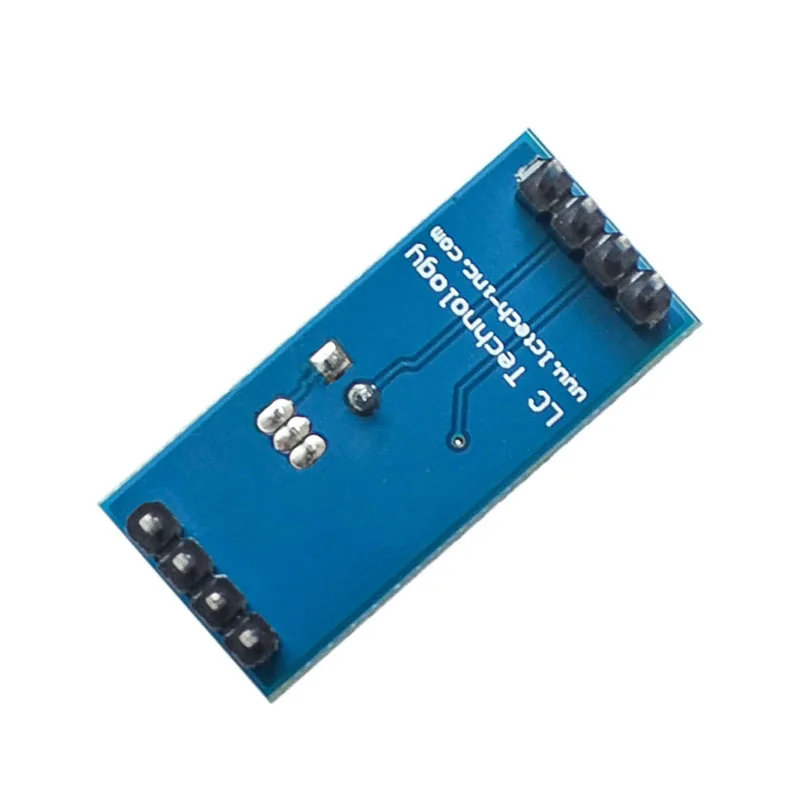

TLC5615 10 bit CAD serial DAC converter module

(No reviews yet) Write a Review
SKU:
PEFFD78
Shipping:
Calculated at Checkout
  • TLC5615 10 bit CAD serial DAC converter module
  • TLC5615 10 bit CAD serial DAC converter module
KES500.00

Description

This module is based on the TLC5615 digital to analog converter chip which uses a 3 wire serial interface for the 10 bit data input. It can be easily interfaced with almost any microcontroller which supports the SPI protocol.

Specifications

  • On-board TLC5615 DAC chip
  • SPI interface
  • Power-on reset function
  • On-board voltage reference
  • Working Voltage: 5 V

Downloads

application/pdf TLC5615 Datasheet.pdf
application/pdf TLC5615 Schematic Diagram.pdf

application/zip Example Code for the TLC5615 Module.zip
