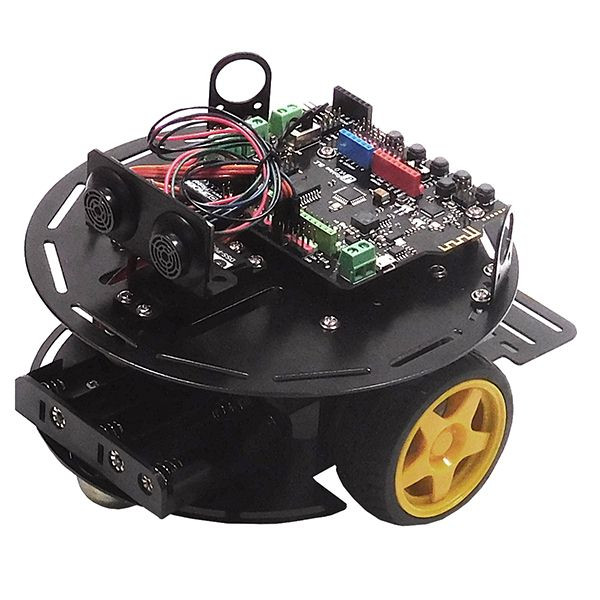

Turtle 2WD Basic Arduino Robot Kit - iOS Compatible

(No reviews yet) Write a Review
SKU:
PESMS23
Shipping:
Calculated at Checkout
  • Turtle 2WD Basic Arduino Robot Kit - iOS Compatible
KES12,000.00

SOLD OUT

Frequently bought together:

Description

The Turtle 2WD DIY Robotics building kit is a entry level programmable robot kit based on Arduino.

With just a few simple steps of assembling the hardware and tuning the software, and you'll learn all about Arduino, robotics, sensors, Bluetooth communication as well as obstacle avoidance and remote controlling. You can also take it further with your own code to take advantage of the ultrasonic sensor, Romeo ( a Bluetooth 4.0 (BLE) Arduino Compatible Microcontroller ) , IR  distance sensors, and LEDs.

The Turtle 2WD Mobile Platform is a small, low-cost mobile platform compatible with standard Arduino microcontrollers. It contains two drive motors, wheels (and rear caster ball), frame and all mounting hardware. It is widely used as self-developed control classis for Arduino and other control boards. The Turtle 2WD has multiple features such as two differential drives, near zero turning radius, high-strength aluminum alloy body material, motors, and a flexible rubber wheel makes it suitable for indoor flat road surface and flat-platform robot competitions. The top layer includes a standard servo socket and the three optional sensor holder. This three sensor holder fits with our adjustable IR range sensor. The servo can be used for a simple rotation platform, two degrees of freedom camera holder, or even a robotic arm.

Thanks to Romeo BLE, the kit can be controlled by APP (IOS).  Simply download an APP (GoBLE) to enjoy the control from your IOS device.

Features:

CATEGORY SPECIFICATIONS
Controller Romeo-BLE
Microcontroller ATmega328P
Board Compatibility Arduino UNO
Operating Voltage 5V
Input Voltage (Recommended) 7V – 12V
Ultrasonic Sensor Range 4 cm – 3 m (up to 5 m depending on conditions)
Rotation Range 0° – 180°
Size (Assembled) 165 mm (diameter) × 128 mm
Weight 480 g (excluding battery)
Maximum Load 500 g

DOCUMENTS

Package Includes:

  • 1 x Romeo BLE (Arduino Compatible Atmega 328)
  • 1 x DF05BB Standard Servo (5kg)
  • 1 x URM37 V4.0 Ultrasonic Sensor
  • 1 x URM ultrasound mounting bracket
  • 1 x Turtle 2WD chassis
  • 1 x Infrared proximity switch bracket (FIT0032)
  • 1 x 5xAA battery holder
  • 1 x PH-2.0 to DC-2.2 adapter
  • 1 x Screws KIT
  • 2 x Micro DC Geared Motors  (FIT0016)
  • 1 x Motor Wire
  • 2 x Rubber Wheels (FIT0003)
  • 1 x Jumper Wires 9" F/F (10 Pack)  (FIT0030)
  • 1 x Magnet Micro USB Cable 1.2m ( FIT0351-OE)
