Description

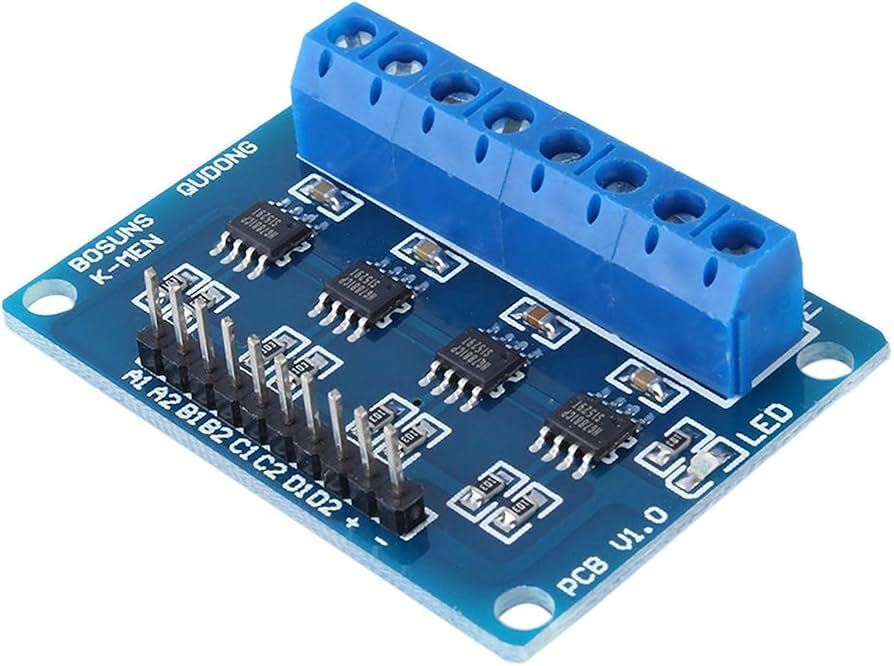

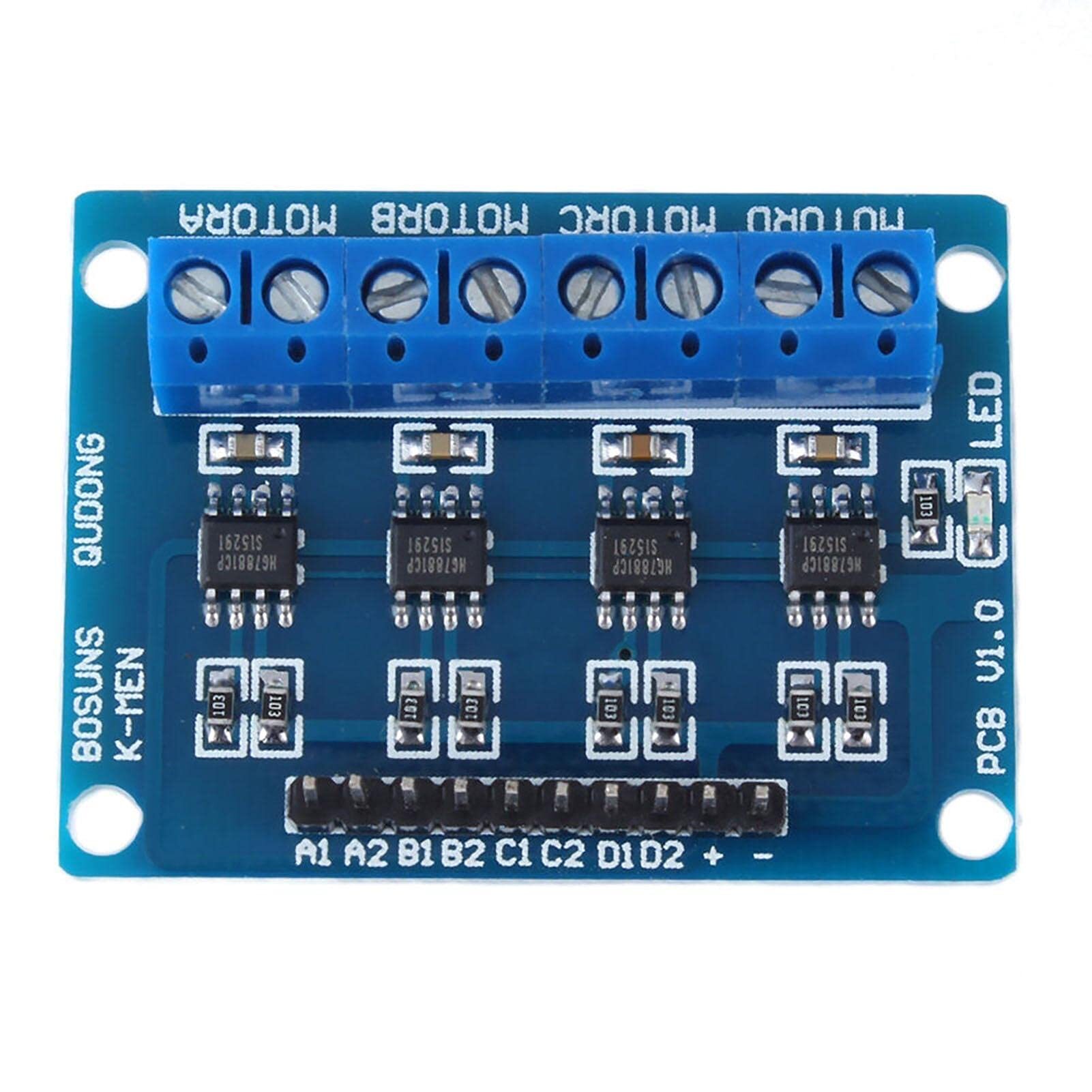

The HG7881 is a versatile dual-purpose motor driver board designed for hobbyists, students, and professionals. Control up to 4 DC motors independently or 2 stepper motors with precision. This compact, reliable module is essential for robotics, automation, and IoT projects.
Features
- 4-Channel DC Motor Control - Drive up to 4 DC motors with independent speed and direction control
- 2-Channel Stepper Motor Support - Full-step and half-step operation for NEMA stepper motors
- H-Bridge Technology - Smooth bidirectional motor control
- Wide Voltage Range - Compatible with 5V-12V power supplies
- Compact Design - Easy integration into breadboards and PCB projects
- Heat Management - Built-in protection for safe operation
Specifications
| Parameter | Details |
| Type | Electronics Component |
| Origin | Original/Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
| Motor Channels | 4 DC / 2 Stepper |
| Operating Voltage | 5V - 12V DC |
| Current Rating | Up to 2A per channel |
| Logic Level | TTL/CMOS compatible |
| Dimensions | Compact PCB form factor |
Package Includes
1pc x HG7881 4 Channel DC Motor Driver Board
Related Products
Related Products
4 Channel L293D Motor Driver Module
Dikavs
KES250.00
L293D motor shield, the input voltage DC4.5-25V-600mA output current capability per channel-1.2A Peak output current (non repetitive) Per Channel-Enable...
L298N Dual Bridge DC stepper Motor Driver Board
Dikavs
KES550.00
Driver: L298N Dual H Bridge DC Motor Driver IC
Driven the terminal supply area Vs: +5V ~ + 35V; Such as need to take power inside the board, supply area Vs: + 7V ~ + 35V
Driven part of the...
Brushless Motor Controller DC 12-36V 500W PWM Driver Board
SparkFun
KES1,950.00
This Brushless Motor Controller DC 12-36V 500W PWM Driver Board is used for the 3-phase brushless sensorless motor, but not suit for all 3-phase brushless sensorless motors directly. If the...

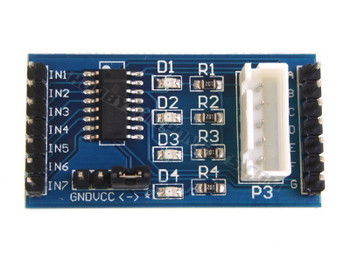

ULN2003 Stepper Motor Driver Board
