STMicroelectronics

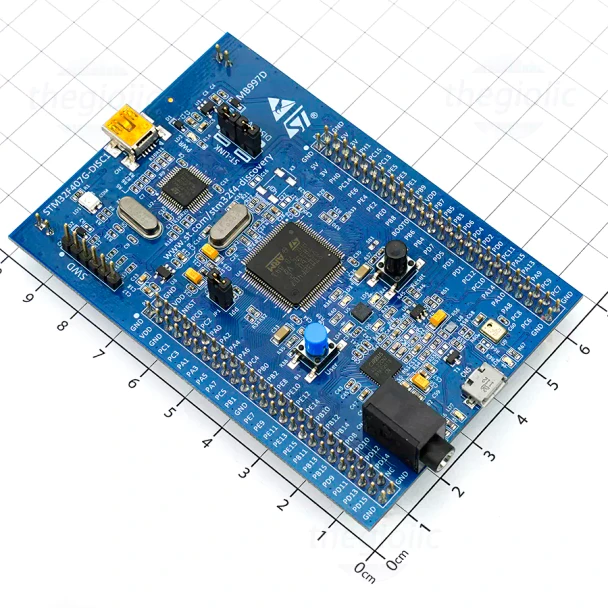

STM32F4DISCOVERY / STM32F407G-DISC1 Discovery Board
- SKU:
- PEGHF45
- Shipping:
- Calculated at Checkout
Description
The STM32F4DISCOVERY helps you to discover the STM32F4 high-performance features and to develop your applications easily. It includes everything required for beginners and experienced users to get started quickly.
Based on the STM32F407VGT6, it includes an ST-LINK/V2-A embedded debug tool, two ST MEMS, digital accelerometer and digital microphone, one audio DAC with integrated class D speaker driver, LEDs and push buttons and an USB OTG micro-AB connector.
A large number of free ready-to-run application firmware examples are available on www.st.com/stm32f4-discovery to support quick evaluation and development.
Features:
| CATEGORY | SPECIFICATIONS |
|---|---|
| Microcontroller | STM32F407VGT6 |
| Core | 32-bit ARM Cortex-M4F |
| Flash Memory | 1 MB |
| RAM | 192 KB |
| Package | LQFP100 |
| On-board Programmer/Debugger | ST-LINK/V2-A |
| Development Support | ARM® mbed™ enabled |
| USB ST-LINK Interfaces | Virtual COM Port, Mass Storage, Debug Port |
| Board Power Supply | USB bus or external 5 V supply |
| External Power Output | 3 V and 5 V |
| Accelerometer | LIS302DL or LIS3DSH 3-axis MEMS accelerometer (by STMicroelectronics) |
| Audio Sensor | MP45DT02 digital MEMS microphone |
| Audio DAC | CS43L22 with integrated Class D speaker driver |
| LED Indicators | 8 LEDs (USB communication, power, 4 user LEDs, and 2 USB OTG indicators) |
| Buttons | 2 push buttons (User and Reset) |
| USB Interface | USB OTG FS with Micro-AB connector |
| Expansion | Extension headers for all LQFP100 I/Os for prototyping and debugging |

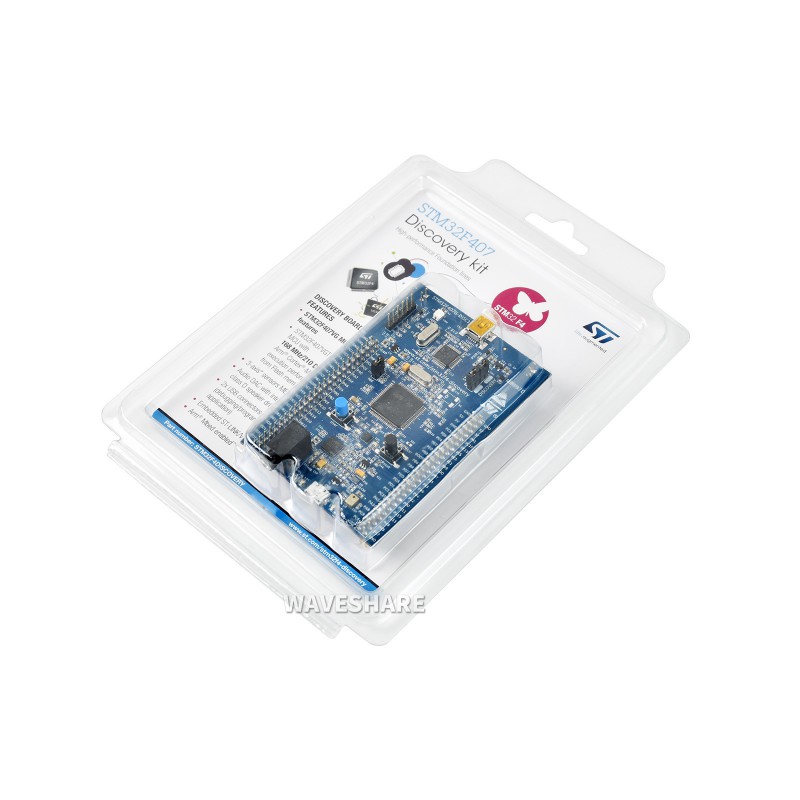

Package Includes:
1pc * STM32F4DISCOVERY / STM32F407G-DISC1 Discovery Board
What's Onboard
Dimensions
Design Support
For Technical Documentation, Software & Development Tools, Hardware Resources, view the STM32F4DISCOVERY official page on www.st.com to get more information: http://www.st.com/content/st_com/en/products/evaluation-tools/product-evaluation-tools/mcu-eval-tools/stm32-mcu-eval-tools/stm32-mcu-discovery-kits/stm32f4discovery.html
Wiki: www.waveshare.com/wiki/STM32F4DISCOVERY
