Description
1.3 inch I2C White/Blue
Needn`t backlight, the display unit can self-luminous
High resolution: 128 * 64
Viewing angle:> 160°
Supports many control chip: Fully compatible with for Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.
Ultra-low power consumption: full screen lit 0.08W
Voltage: 3V ~ 5V DC
Working Temperature: -30 ° ~ 70 °
Color:White/Blue(Optional)
Module Size: 32.0MM*35.50MM*4.1MM
I2C/IIC Interface, need 2 IO only.
Driver IC: SSD1306() or SH1106()Resolution: 128*64
Needn`t backlight, the display unit can self-luminous
High resolution: 128 * 64
Viewing angle:> 160°
Supports many control chip: Fully compatible with for Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.
Ultra-low power consumption: full screen lit 0.08W
Voltage: 3V ~ 5V DC
Working Temperature: -30 ° ~ 70 °
Color:White/Blue(Optional)
Module Size: 32.0MM*35.50MM*4.1MM
I2C/IIC Interface, need 2 IO only.
Driver IC: SSD1306() or SH1106()Resolution: 128*64
Display area: 29.42 x 14.7mm/1.16"*0.58"
Driving voltage: 3.3-5V
Operating temperature: -40 ° to 70 °
Interface type: IIC interface
Pin definitions:
1> GND (power ground)
2> VCC (positive power supply)
3> SCL (clock line)
4> SDA (data line)
Package Includes

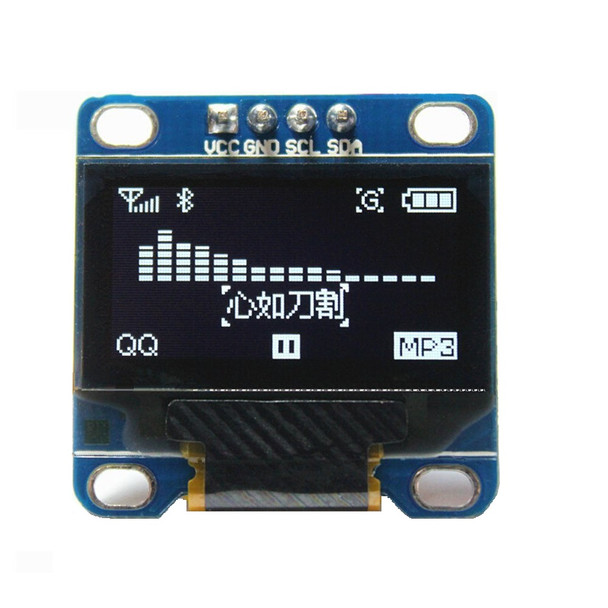

1pc x 1.3" White IIC 128X64 OLED LCD
