Description
Features:
| CATEGORY | SPECIFICATIONS |
|---|---|
| Product Type | Optical Fingerprint Recognition Sensor Module (All-in-One DSP Based) |
| Sensor Type | Optical fingerprint sensor with integrated processing system |

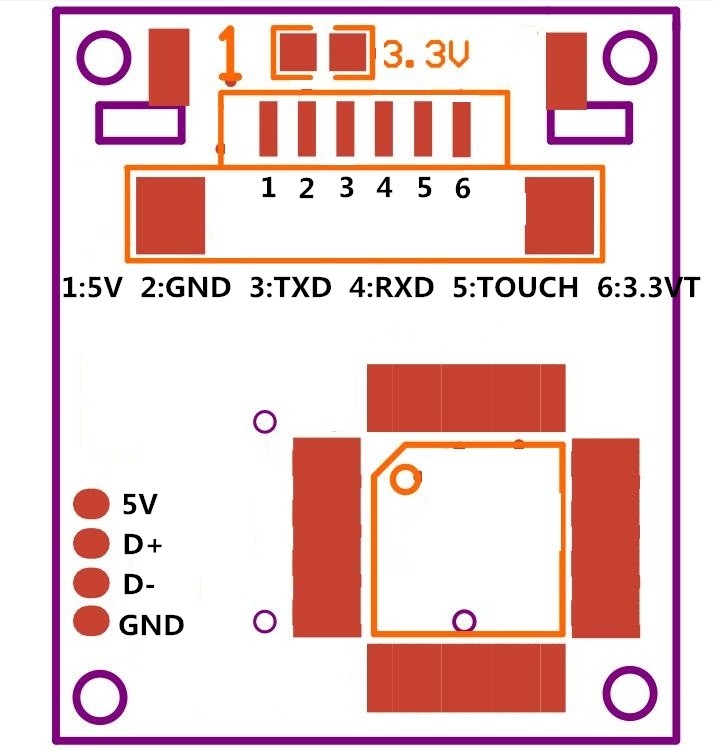

| Interface | UART (TTL serial), USB2.0 (varies by model) |
| Operating Voltage | 3.3V – 6V DC (typical 5V) |
| Operating Current | ≤75 mA typical, <120 mA working, <130 mA peak |
| Fingerprint Capacity | 200 – 1000 fingerprints (model dependent) |
| Fingerprint Resolution | 500 DPI |
| Fingerprint Image Capture Time | 0.2 – 0.5 seconds |
| Verification / Scanning Speed | ~0.2 – 0.3 seconds |
| Search Time | < 1.0 second (typical at 1:500 database) |
| Sensor Window Size | 18.5 mm × 14.6 mm (approx. 15 × 11 mm image area) |
| Template File Size | 512 bytes |
| Feature File Size | 256 bytes |
| Matching Modes | 1:1 verification, 1:N identification |
| Security Levels | Level 1–5 (default level 3) |
| False Acceptance Rate (FAR) | ≤0.0001% (or <0.001% depending setting) |
| False Rejection Rate (FRR) | ≤0.1% – <1.0% (depending security level) |
| Operating Temperature | -25 °C to +55 °C |
| Storage Temperature | -40 °C to +85 °C |
| Operating Humidity | 40% – 85% RH (non-condensing) |
| Baud Rate | 9600 – 115200 bps (default 57600 bps) |
| Image Capture Surface | ~15 mm × 11 mm |
| Sensor Life | ~100 million uses |
| Static Protection (ESD) | Up to 15 kV |
| LED Indicator | Blue / Green LED during capture |
| Processing Capability | Onboard image capture, feature extraction, template matching, search |
| Matching Method | 1:N matching + 1:1 verification |
| System Integration | Compatible with Arduino, AVR, PIC, ARM, MSP430, FPGA, Raspberry Pi |
| Applications | Access control, safes, attendance systems, POS systems, car door locks, security systems |
| Advantages | Low power, compact size, fast matching, high accuracy, full onboard processing |
| Software Support | PC enrollment and testing software available |
| Library Support | Adafruit Fingerprint Sensor Library v1.1.2 |
Package Includes:
1 x AS608 Fingerprint Reader Sensor Module
