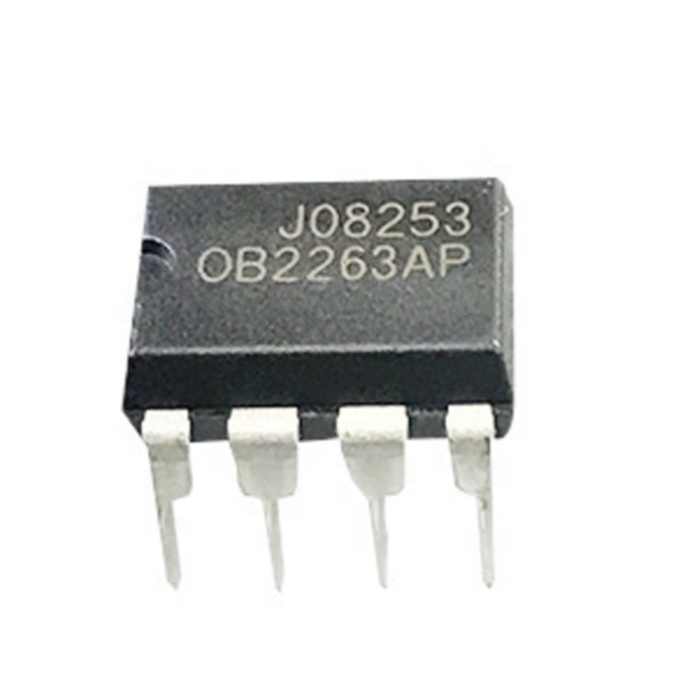

OB2263AP Current Mode PWM Controller

Description

OB2263 is a highly integrated current mode PWM control IC optimized for high performance, low standby power and cost effective offline flyback converter applications in sub 30W range.
PWM switching frequency at normal operation is externally programmable and trimmed to tight range. At no load or light load condition, the IC operates in extended ‘burst mode’ to minimize switching loss. Lower standby power and higher conversion efficiency is thus achieved.

Features

■ On-Bright Proprietary Frequency Shuffling
Technology for Improved EMI Performance.
■ Extended Burst Mode Control For Improved
Efficiency and Minimum Standby Power Design
■ Audio Noise Free Operation
■ External Programmable PWM Switching
Frequency
■ Internal Synchronized Slope Compensation
■ Low VDD Startup Current and Low Operating
Current (1.4mA)
■ Leading Edge Blanking on Current Sense Input
■ Good Protection Coverage With Auto Self
Recovery
o VDD Over Voltage Clamp and Under Voltage
Lockout with Hysteresis (UVLO)
o Gate Output Maximum Voltage Clamp (18V)
o On-Bright Proprietary Line Input Compensated
Cycle-by-Cycle Over-current Threshold Setting
For Constant Output Power Limiting Over
Universal Input Voltage Range.
o Overload Protection (OLP)

Applications
Offline AC/DC flyback converter for
■ Battery Charger
■ Power Adaptor
■ Set-Top Box Power Supplies
■ Open-frame SMPS

Package Includes

1pc x OB2263AP Current Mode PWM Controller
