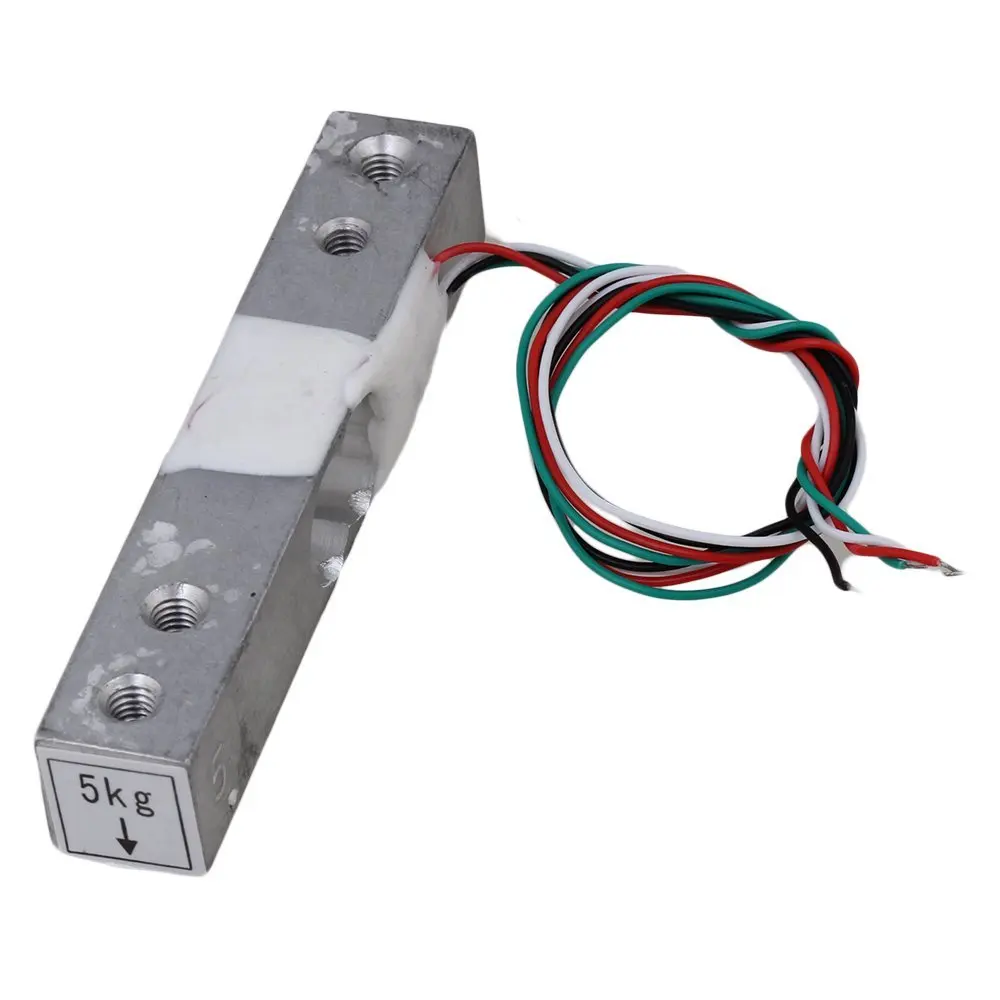

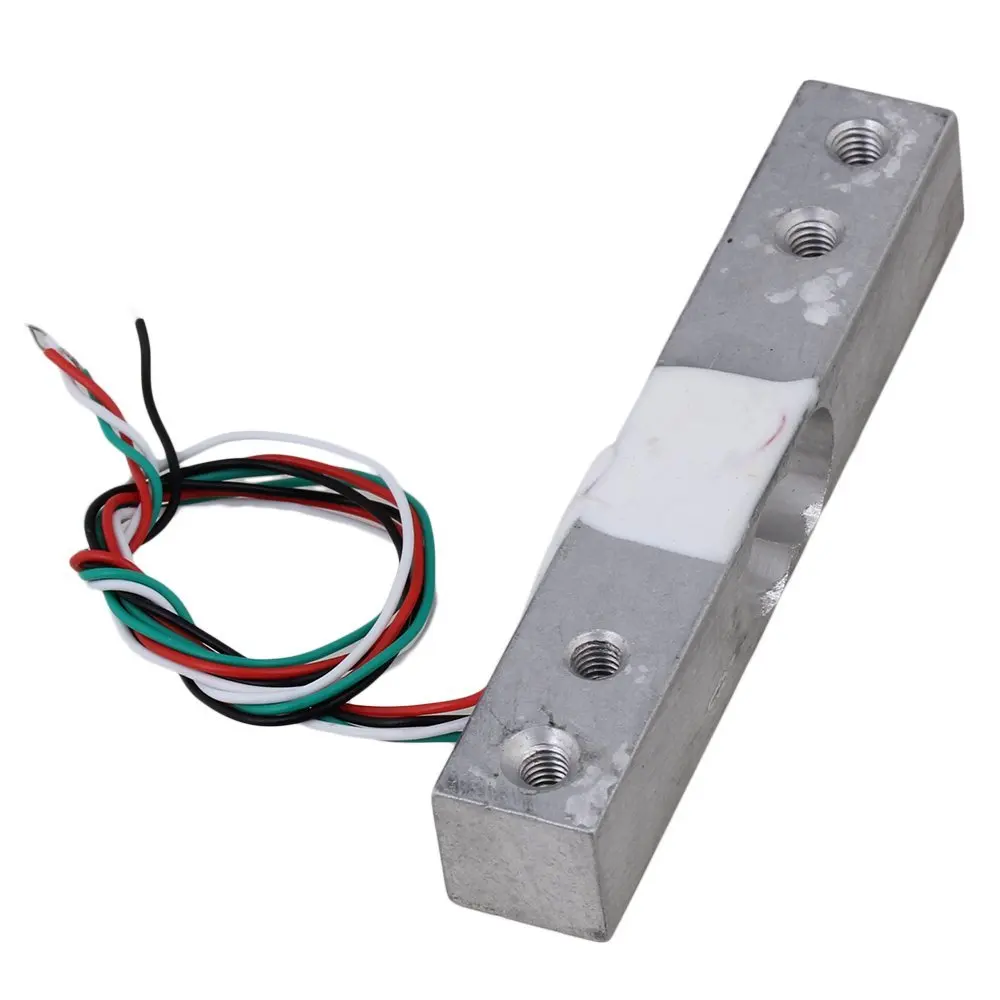

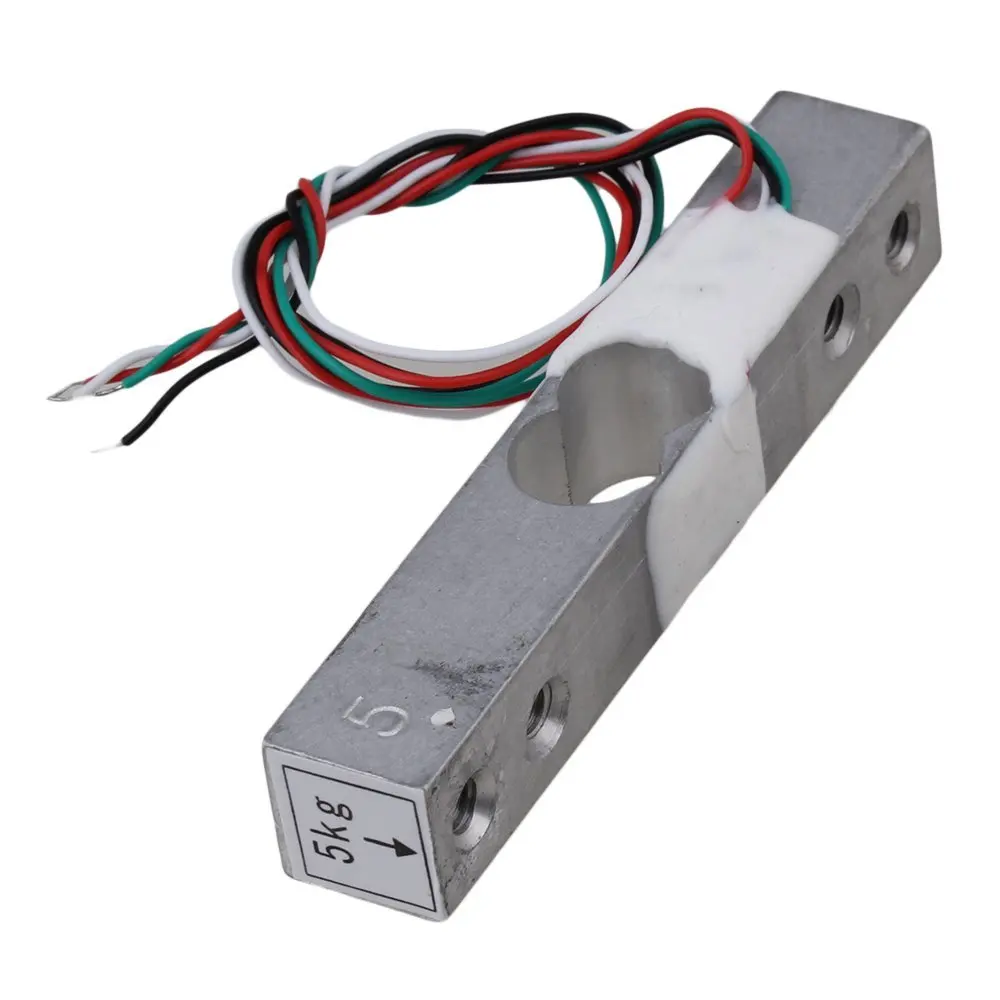

YZC-131 Load Cell Weight Sensor 5Kg

Product description

Note: The color of the item may vary slightly due to photography and your own computer

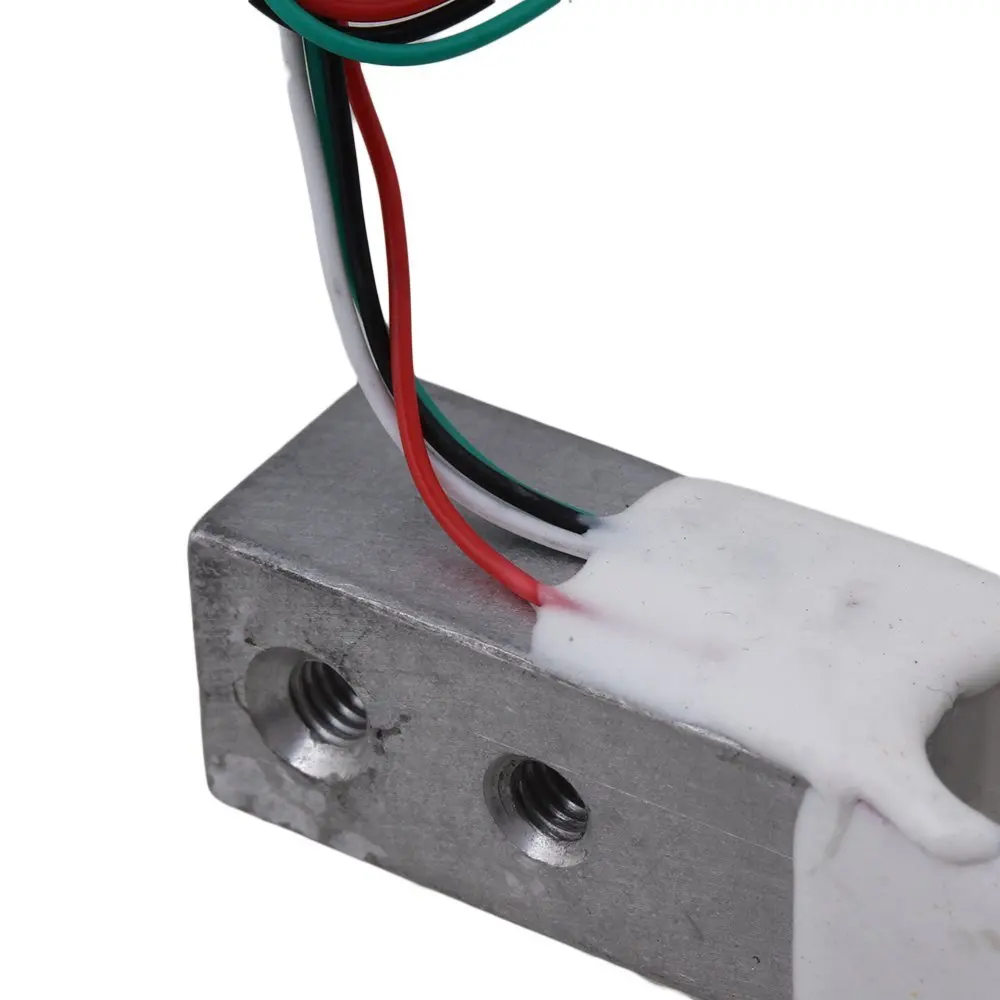

Wiring: Red line voltage positive, Black line voltage negative
White Line signal positive, Green line signal negative
Rated Load: 5Kg
Rated Output: 1.0 to positive and negative 0.1mV or V
Nonlinear: 0.03 percent F.S
Hysteresis: 0.03 percent F.S
Repeatability: 0.03 percent F.S
Creep(5 minutes): 0.05 percent F.S
Output temperature: 0.003 percent F.S or degree celsius
Zero temperature: 0.02 percent F.S or degree celsius
Zero balance: positive and negative 0.1000 mV or V
Input impedance: 1066 positive and negative 20 percent ohm
Output impedance: 1000 positive and negative 10 percent ohm
Insulation Resistance: 2000 Megohms
Operating temperature range: minus 20 to 65 degree celsius
Recommended operating voltage: 5 VDC
Maximum operating voltage: 10 VDC
Protection class: IP65
Material: Aluminum Alloy
Size: 75 x 13 x 13mm or 2.95 x 0.51 x 0.51 inch
Weight: 30g

Package Includes:

1pc x YZC-131 Load Cell  Weight Sensor 5Kg
