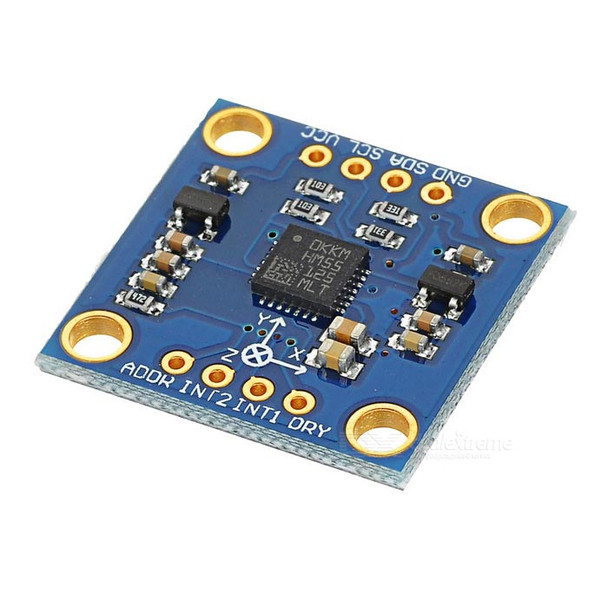

LSM303DLH 3-Axis Magnetic Field Acceleration Module

The GY-51 LSM303DLH chip has an accelerometer, magnetometer, A / D converters and signal conditioning circuit integrated. Still, the communication to the processor is done through the I2C bus. Thus only one chip is required to achieve a six-axis data detection and output. The LSM303DLH requires very little peripheral devices.

Chip built-in 12-bit AD converter, 16-bit data output
Adopt high quality PCB, welding technology ensure quality
Using chip: LSM303DLH
Power supply: 3~5V (internal low voltage stability)
Communication mode: standard IIC communication protocol
Magnetic domain: ±1.3 / ±1.9 / ±2.5 /± 4.0 / ±4.7 / ±5.6 / ±8.1 gauss
Acceleration range: ±2 g /±4 g / ±8 g

Features:

1. Integrated three-axis magnetometer and a tri-axial accelerometer with a digital interface.
2. Comes with automatic detection.
3. Also incorporates high-performance accelerometers.
4. Accelerometers can run on LOW power mode.

Package Includes:

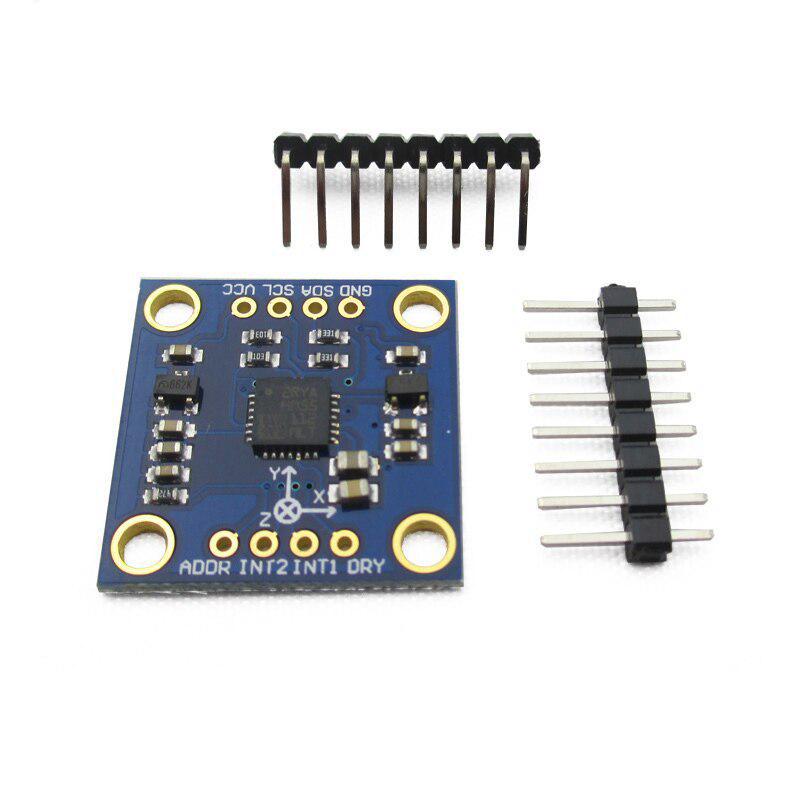

1 x GY-51 LSM303DLH module 3-axis magnetic field acceleration
