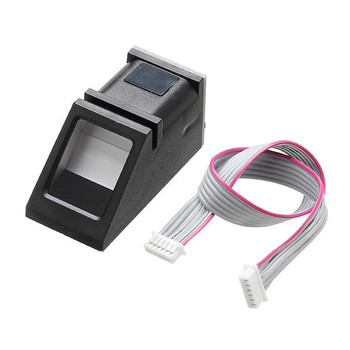

Fingerprint Sensor Module

(No reviews yet) Write a Review
SKU:
PEFRS77
Weight:
0.03 KGS
Shipping:
Calculated at Checkout
KES2,800.00

Description

Fingerprint module

1. Integrated image collecting and algorithm chip together, ALL-in-One
2. Fingerprint reader can conduct secondary development, can be embedded into a variety of end products
3. Users can conduct secondary development, can be embedded into a variety of end products, such as: access control, attendance, safety deposit box, car door locks
4. Low power consumption, low cost, small size, excellent performance
5. Professional optical technology, precise module manufacturing Technics
6. Good image processing capabilities, can successfully capture image up to resolution 500 dpi
7. Finger  detection function.

Specification:

Type: Optical
Sensor Life: 100 million times
Static indicators: 15KV
Backlight: Blue
Interface: USB2.0/UART(TTL logical level)
RS232 communication baud rate: 9600BPS~115200BPS changeable
Image Capture Surface 15×11(mm)
Verification Speed:  0.2 sec
Scanning Speed: 0.3 sec
Character file size:  256 bytes
Template size:  512 bytes
Storage capacity: 1000
Security level: 3 (1,2,3,4,5(highest))
False Acceptance Rate (FAR) :≤0.0001%
False Rejection Rate (FRR): ≤0.1%
Resolution 500 DPI
Voltage : 4.2--6VDC (or 3.3V)
Working current: Typical ≤75mA
Matching Method:  1: N
Operating Environment Temperature: -20 to 50 degrees

Library

Adafruit_Fingerprint_Sensor_Library-1.1.2.zip
