DFRobot

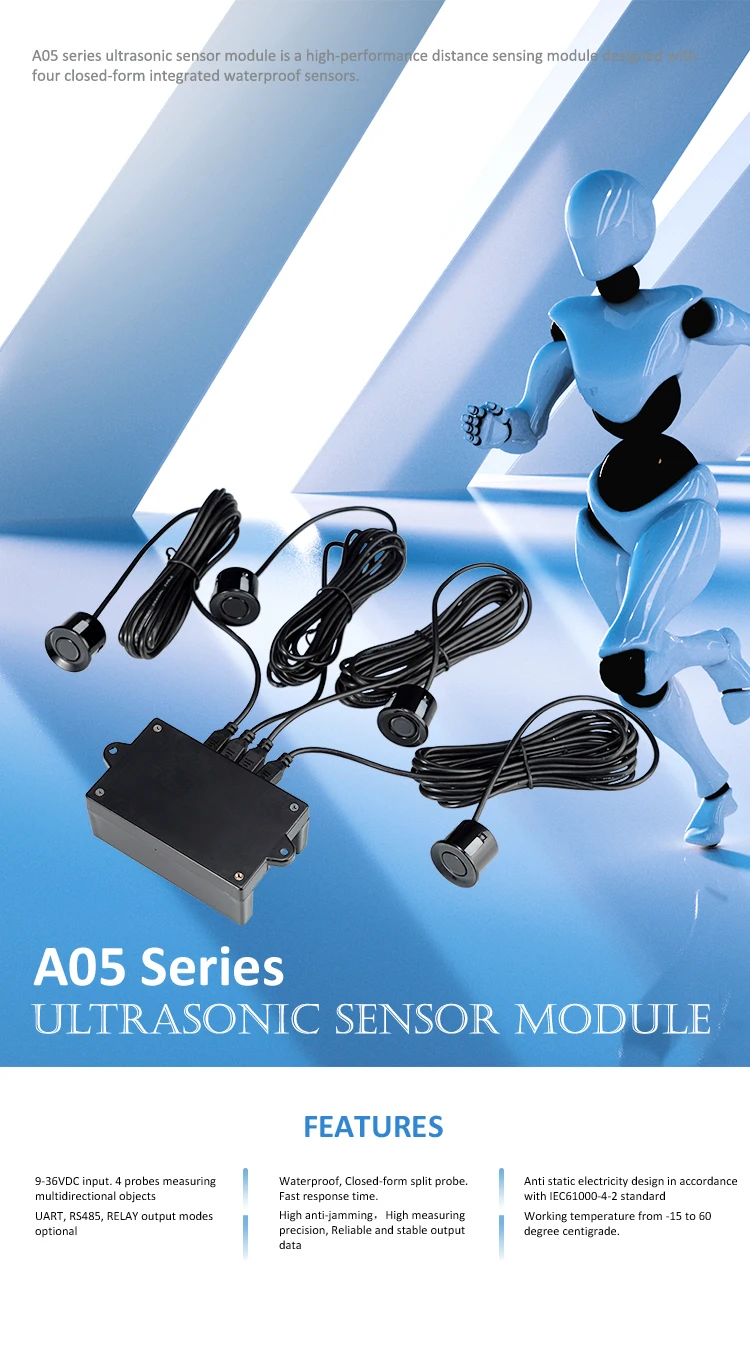

DYP-A05 One Drag Four Ultrasonic Measuring Module sensor
(No reviews yet)
Write a Review
- SKU:
- PEIUR22
- Shipping:
- Calculated at Checkout
Frequently bought together:
Description
Specification
| Module No. | DYP-A05LYU-V1.1 | DYP-A05LY4-V1.1 | DYP-A05LYJ-V1.1 |
| Dead band | 250mm | ||
| Measuring range of Flat objects | 250~4500mm | ||
| Beam Angle | ≈60° | ||
| Response time | 300~1500ms | 200~210ms | 1000ms |
| MTTF | 26000Hrs | ||
| Supply VoltageSupply Voltage | 9.0~36.0 DC | ||
| Residual ripple | <50mA | ||
| Power consumption | ≤5mA | ||

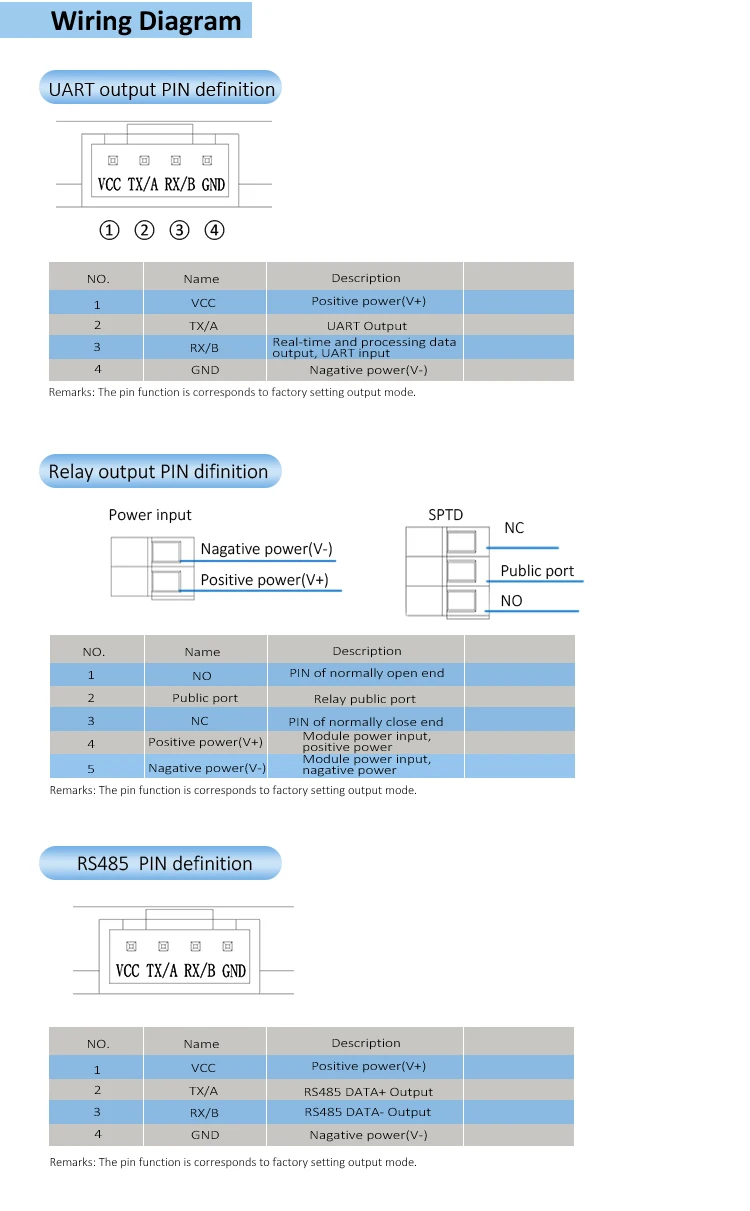

| Connection type | UART automatic | RS485 | Relay output |
| Output signal | TTL signal | Differential signal | SPDT |
| Measurement accuracy | ±(1+S*0.3%)cm | ||
| Signal voltage | 5.0V | SPDT | |
| Output current | — | <3A | |
| Time delay before availability | 900ms | 1300ms | |
| Enclosure rating | — | ||
| Process connection | XHB2.54mm – 4P connector | ||
| Housing material | Plastic | ||
| Ambient operating temperature | -15-60℃ | ||
| Ambient temperature, storage | -25-80℃ | ||
