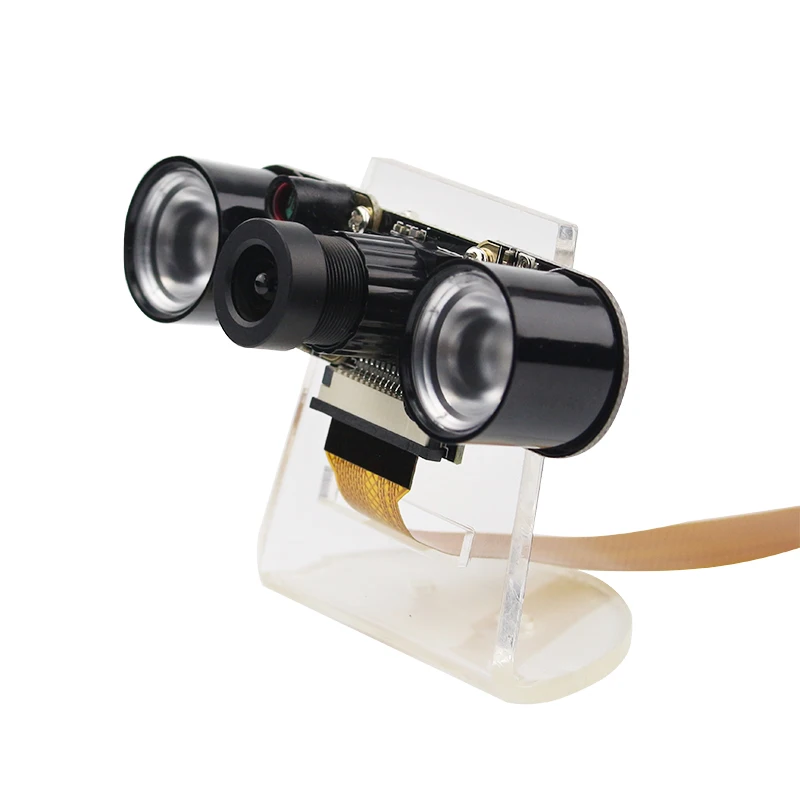

Raspberry Pi 4B/3B+/Zero/WH 5MP Night Vision Camera

This is the night vision camera for Raspberry Pi. It use 5 megapixel OV5647 sensor , with manually focal adjustable lens. The field of view is normal 60 degree(diagonal). If you need the night vision effection , please install the infrared sensor light . And please install the screws tightly in case of bad connection. The white camera flat cable is used for Raspberry Pi 4B/3B+/3B version , and the golden one is for Zero version. And we also provide a acrylic holder for the camera. We provide different kit to choose , please choose the suitable kit for you.

Feature:

1. Supports all version of the Raspberry Pi (4B/3B+/3B/3A/Zero)
2. Night vision camera (need to use with the infrared lights)
3. Can access sensitive lights .
4. Four screw holes can be installed sensitive infrared light or other fill light , you can switch freely , no longer worried about the light is too weak, underexposed sensitive infrared light.
5. Focal adjustable , the focal length can be adjusted by rotating the lens
6. 5 megapixel , support 1080P

Specification:

1. OV5647 sensor
2. Pixel 5 megapixel
3. Lens : 1/4 5M
4. CCD size: 1 / 4inch
5. Aperture (F): 1.8
6. Focal Length: 3.6mm adjustable
7. Diagonal angle: 60 degree approx.
8. Sensor best resolution: 1080p
9. 4 screw holes : used for attachment and connect power ( 3.3V output )
10. Dimension: 25mm x 24mm
11. Metal frame
12. 3.3V power supply interface can be accessed sensitive infrared lamp or other device
13. Transparent lights for 1W high power infrared light photoreceptor 850
14. Photoresistor : detecting ambient light intensity

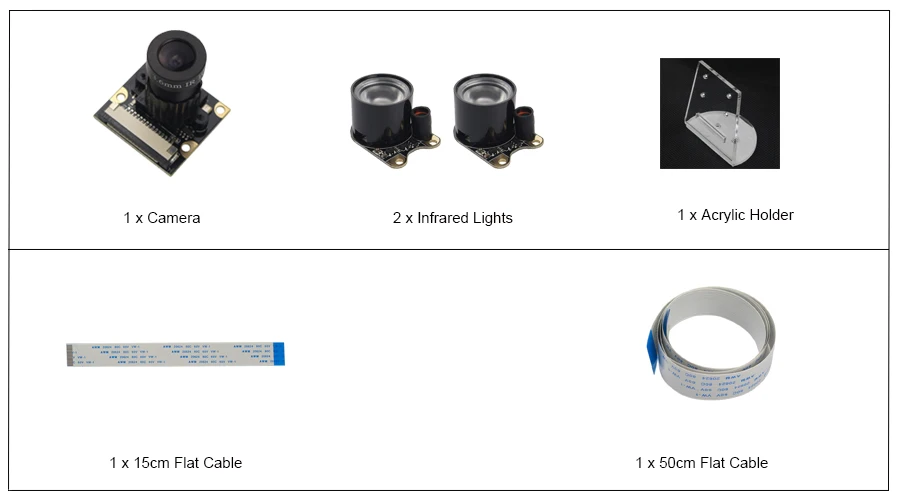

Package include :

1 x Camera
2 x Infrared lights
1 x Acrylic Holder
1 x 15 cm white flat cable
1 x 50 cm white flat cable
