Dual IMX219 8MP Stereo/Depth Vision Camera

(No reviews yet) Write a Review
SKU:
PERPZ59
Weight:
0.10 KGS
Shipping:
Calculated at Checkout
  • Dual IMX219 8MP Stereo/Depth Vision Camera
  • Dual IMX219 8MP Stereo/Depth Vision Camera
  • Dual IMX219 8MP Stereo/Depth Vision Camera
  • Dual IMX219 8MP Stereo/Depth Vision Camera
  • Dual IMX219 8MP Stereo/Depth Vision Camera
  • Dual IMX219 8MP Stereo/Depth Vision Camera
KES6,800.00

Description

Overview

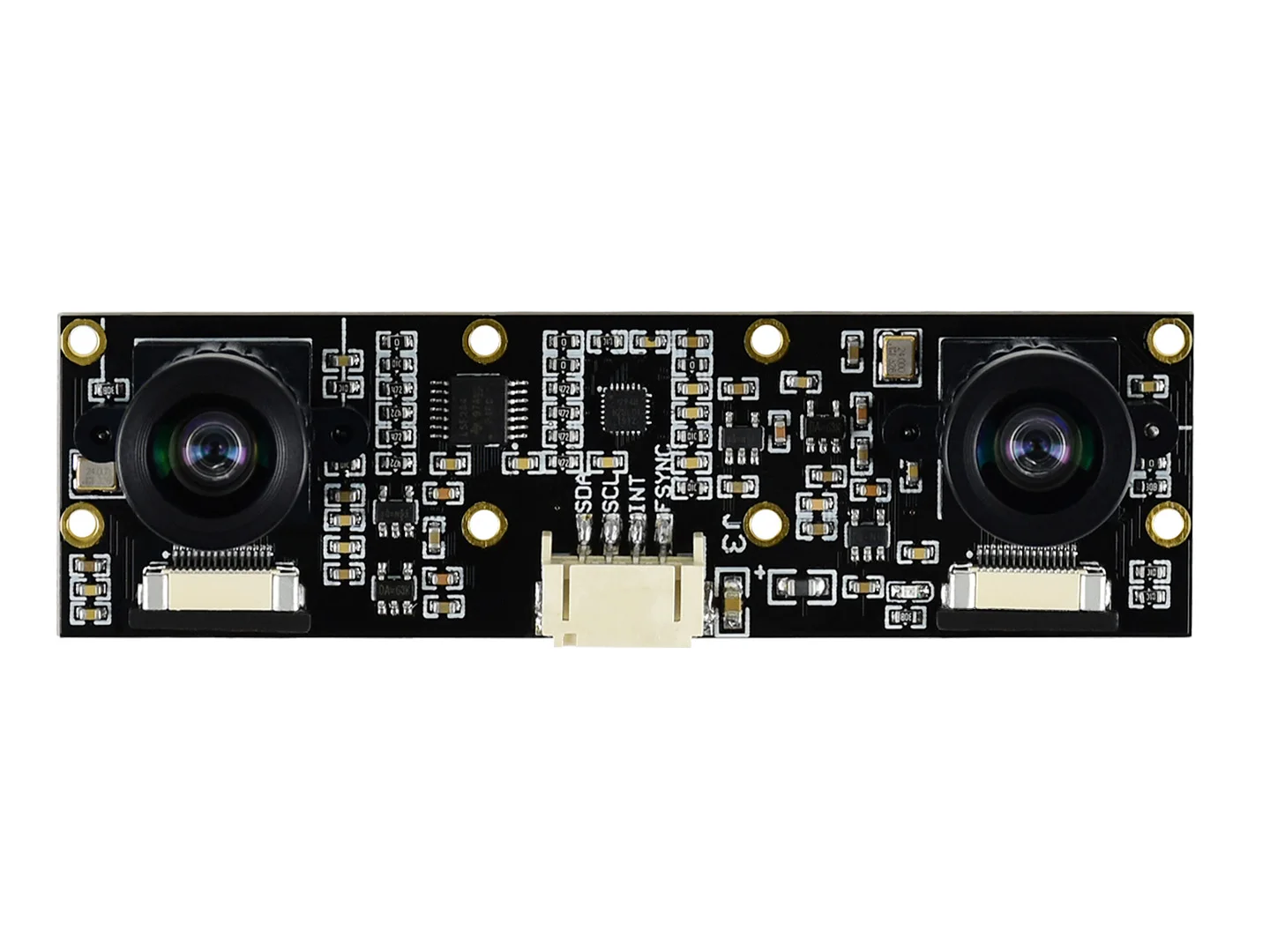

This is a binocular camera module which features dual IMX219 cameras onboard, 8Megapixels of each camera. It is suitable for AI vision applications like depth vision and stereo vision.
The module supports NVIDIA Jetson Nano Developer Kit B01 version, as well as Raspberry Pi CM3/CM3+ expansion boards like Compute Module IO Board Plus, Compute Module POE Board, etc.

Specifications

  • 8 Megapixels
  • Sensor: Sony IMX219
  • Resolution: 3280 × 2464 (per camera)
  • Lens specifications:
    • CMOS size: 1/4inch
    • Focal Length: 2.6mm
    • Angle of View: 83/73/50 degree (diagonal/horizontal/vertical)
    • Distortion: <1%
    • Baseline Length: 60mm
  • ICM20948:
    • Accelerometer:
      • Resolution: 16-bit
      • Measuring Range (configurable): ±2, ±4, ±8, ±16g
      • Operating Current: 68.9uA
    • Gyroscope:
      • Resolution: 16-bit
      • Measuring Range (configurable): ±250, ±500, ±1000, ±2000°/sec
      • Operating Current: 1.23mA
    • Magnetometer:
      • Resolution: 16-bit
      • Measuring Range: ±4900μT
      • Operating Current: 90uA
  • Dimension: 24mm × 85mm

Applications

AI vision applications like depth vision and stereo vision.

Dimensions

IMX219-83 Stereo Camera dimensions

Development Resources

Wiki: www.waveshare.com/wiki/IMX219-83_Stereo_Camera



Package Includes



  1. IMX219-83 Stereo Camera x1
  2. FFC (2PCS) x1
  3. PH2.0 4PIN wire x1
