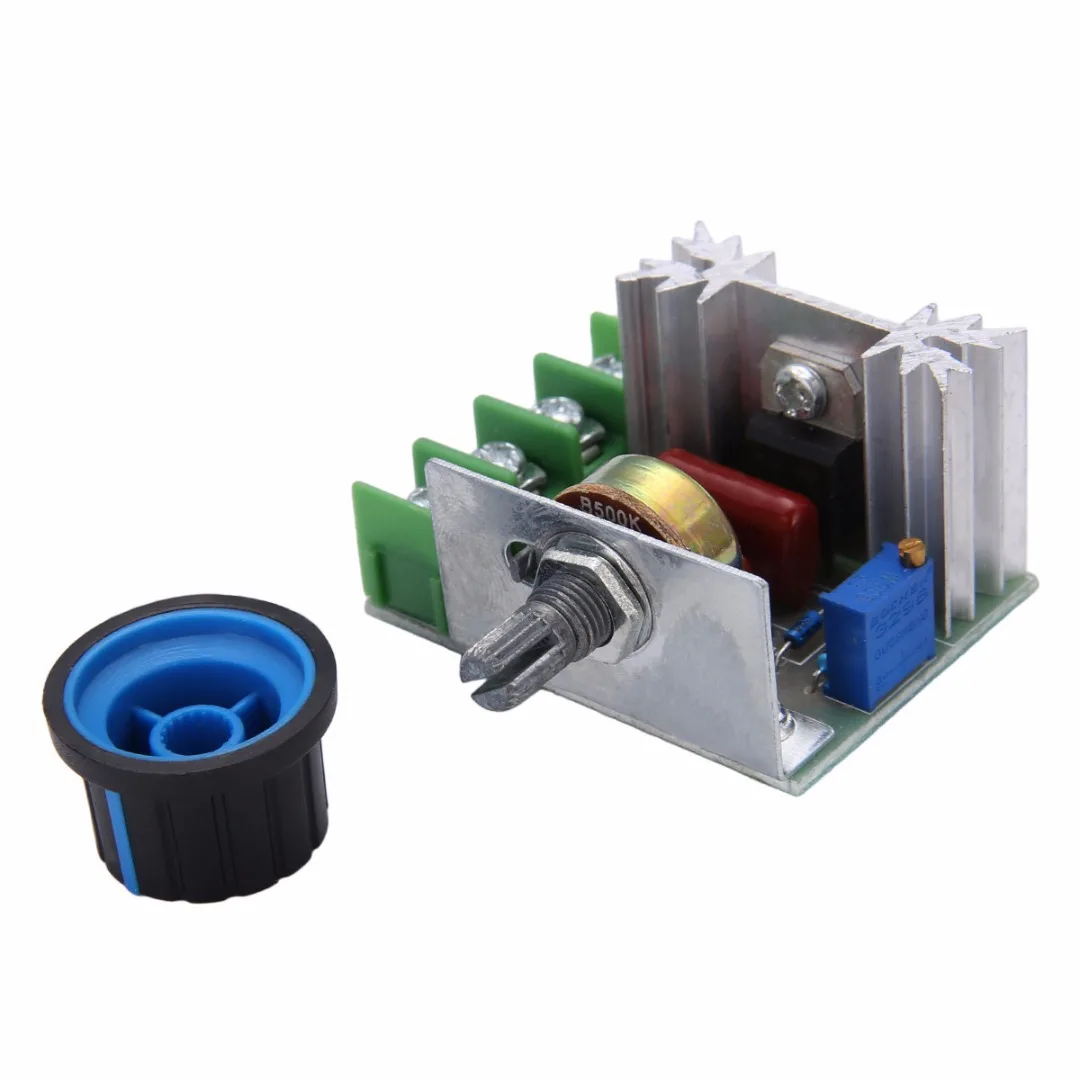

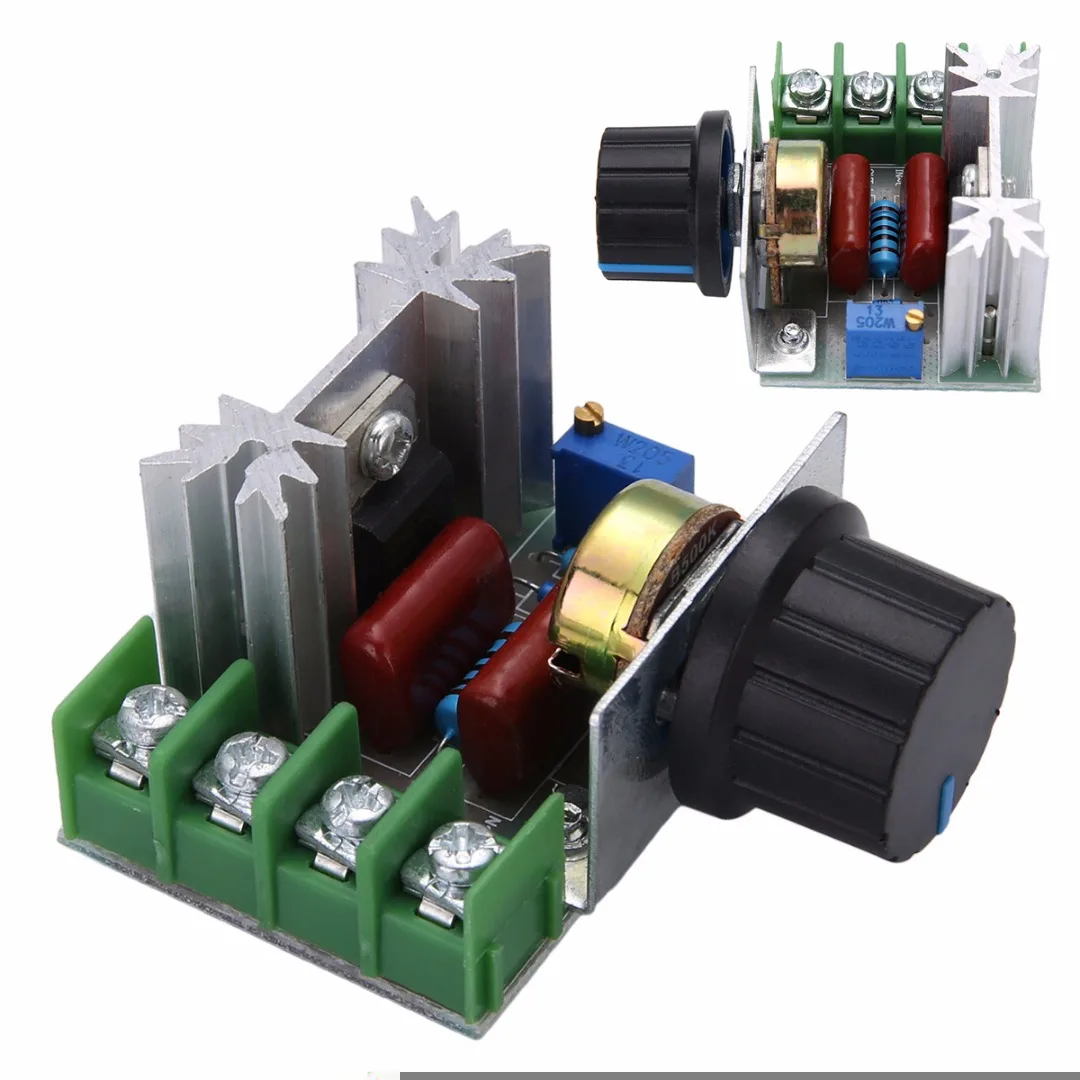

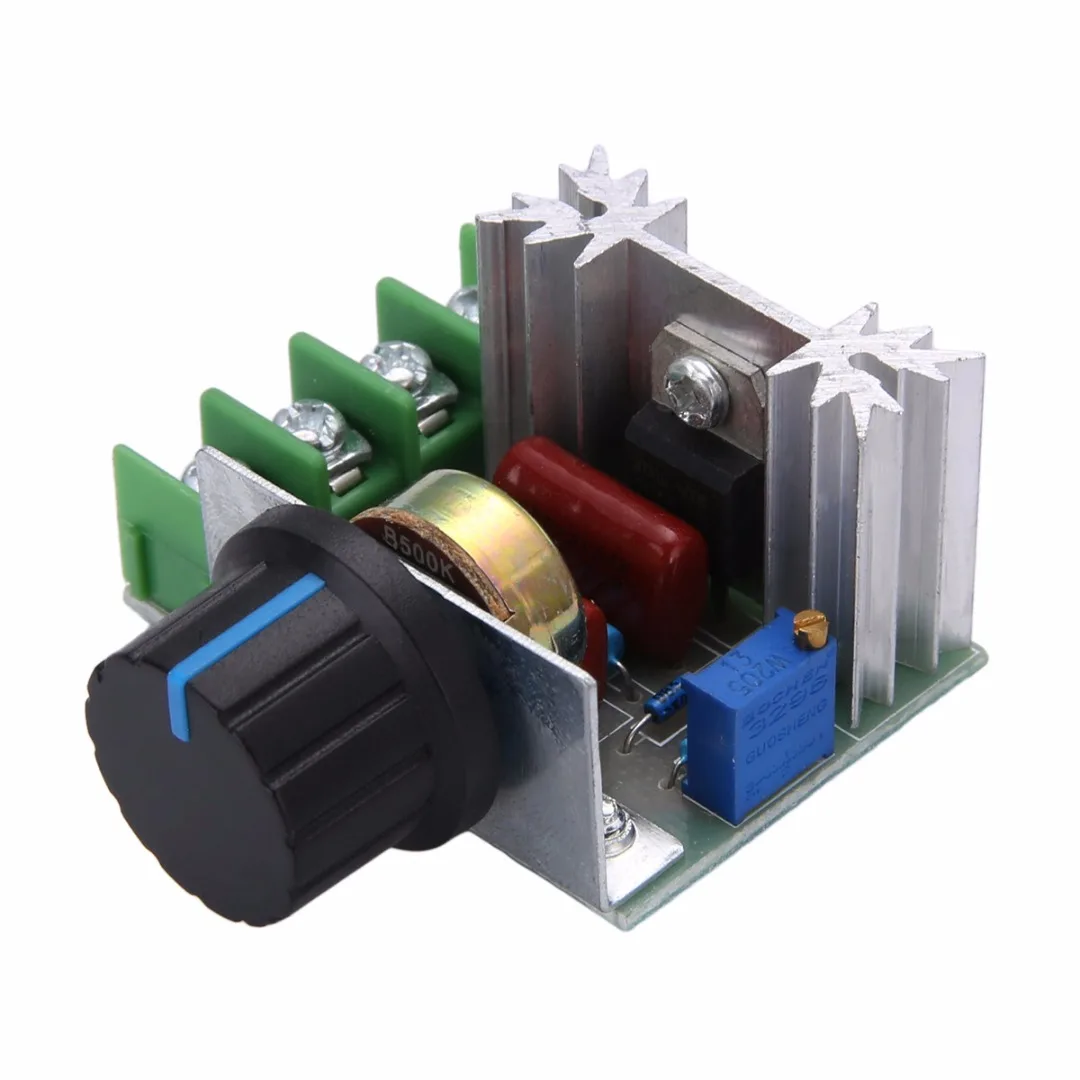

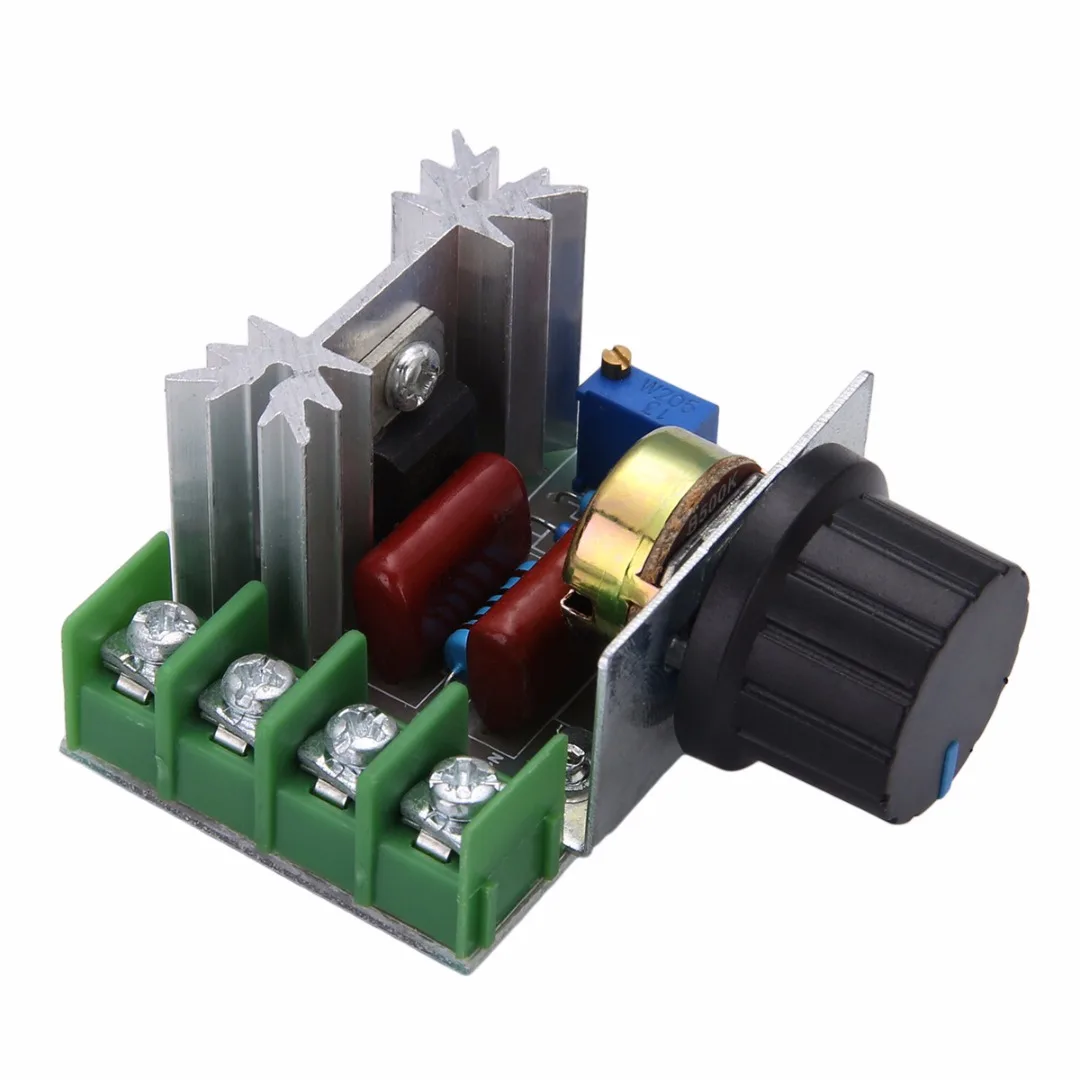

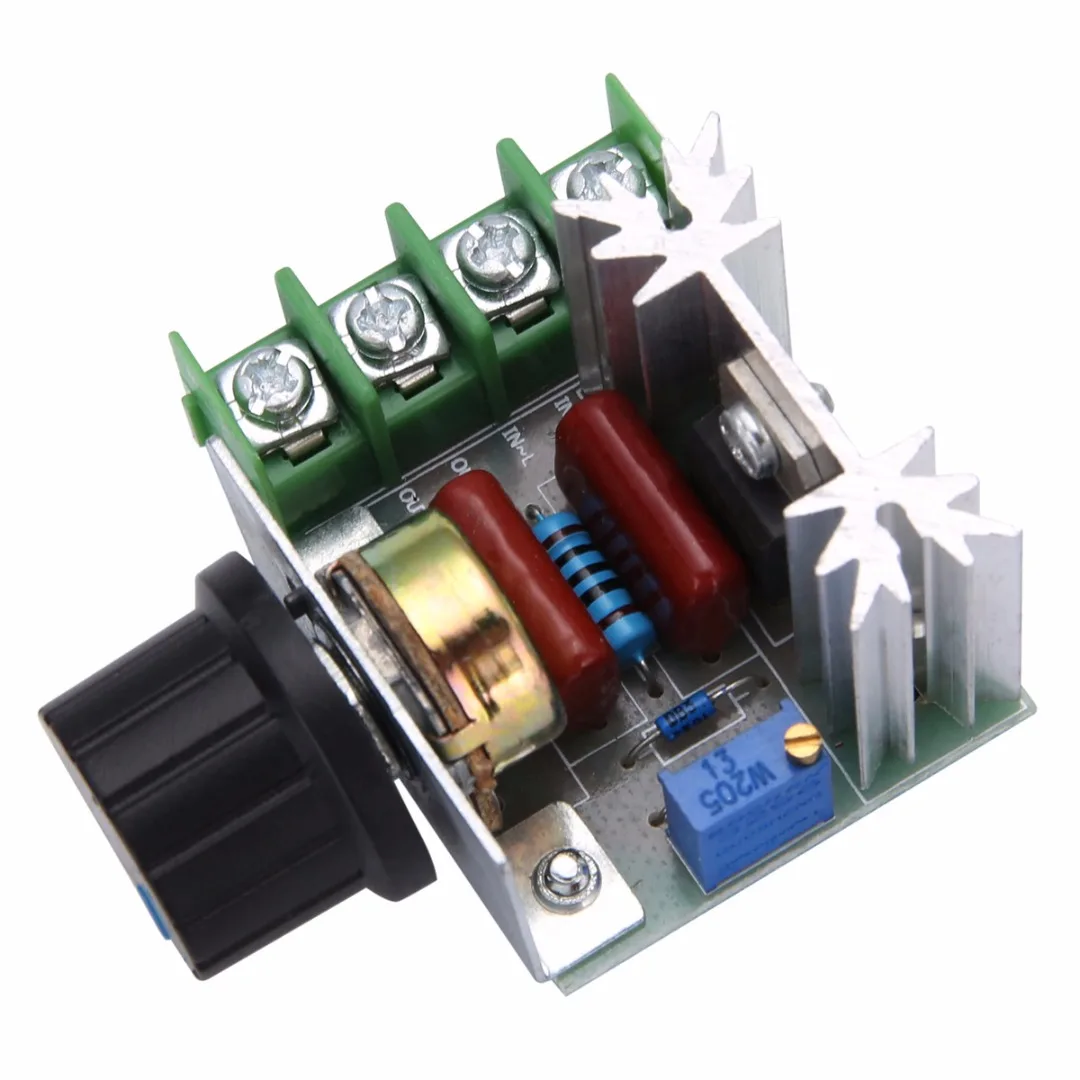

Description
Specification:
- Size: approx. 48 * 34 * 27 mm
- Input voltage: AC 220V
- The highest power: 2000W
- Voltage regulation: AC 50-220V
- Knob diameter: approx. 19 mm
- Epoxy copper clad thickness: approx. 1.6mm
Feature:
- Control the speed of a brushed AC motor with this controller.
- High efficiency, high torque, low heat generating.
- With reverse polarity protection, high current protection.
- High temperature resistant FR - 4 circuit board.
- Fine workmanship and stable performance.
- Convenient to use.
- Durable in use.
The use of new two-way high-power thyristor, because current up to 25 A, a good solution to the heating wire resistance in the case of cooling is too small to cause over-flow problem; able to easily adjust the electricity the output voltage between 0-220 volts, for use with electrical appliances. Such as: furnace, hot water heater tune, lamp dimmer, small motor, electric iron thermostat and so on. So as to achieve dimming, thermostats, pressure effect. Available for less than 2000W of electric power large appliances used because the power has been great, so the general home appliances or small factories sufficient.
Package included:
1 x 2000W Motor Speed Controller
2 Reviews
-
Motor speed controller
Worked exactly how I wanted. Thanks
-
The AC Voltage Regulator was as exactly as shown and described. It is working as expected
The delivery of the AC Voltages Regulator was fast to Nairobi within a day. I picked it up at 2NK Sacco offices the option I chose in my checkout. Thank you for the quality product and fast delivery
