LX-16A Full Metal Gear Serial Bus Dual Axis Servo Motor
(No reviews yet)
Write a Review
- SKU:
- PEJGP48
- Shipping:
- Calculated at Checkout
Frequently bought together:
Description
Product Description
Hiwonder LX-16A is a full metal gear serial bus servo with 17kg high torque. It can provide temperature, position feedback. LX-16A Bus Servo uses our private serial protocol so that it is necessary to use our TTL/USB debug board (compatible for Arduino) to control bus servo.
Notes: The debug board required to purchase separately from ours. You only need one debug board no matter how many servos you control.
Notes: The debug board required to purchase separately from ours. You only need one debug board no matter how many servos you control.
Feature
- 17kg large torque. 17 kg/cm (236 oz/in) @6V; 19.5 kg/cm (270 oz/in) @7.4V. We provide communication protocol and detailed video tutorials
- Real-time feedback function of position, temperature, voltage. The top of the servo has a warning The indicator will blink if overcurrent, over-temperature or locked-rotor occurs

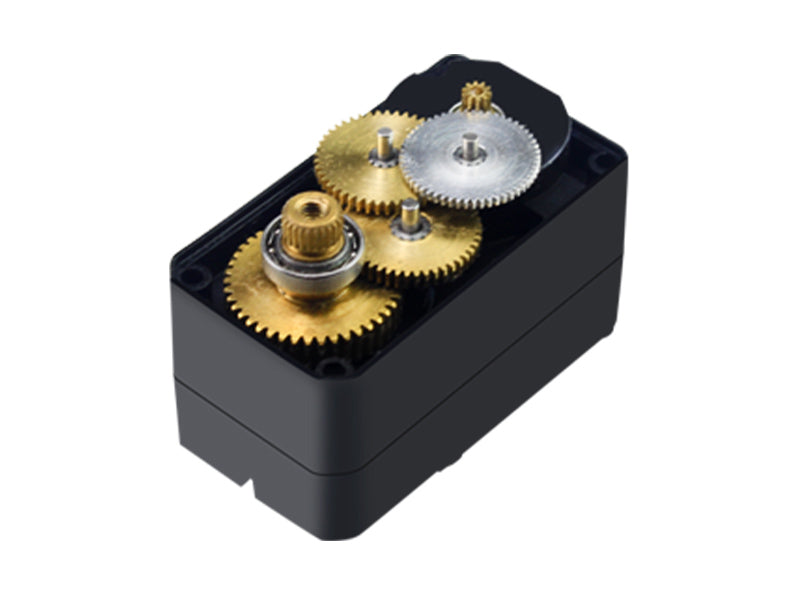

- Full metal gear. Improve servo’s accuracy and extend its service time
- Dual ball bearing: one is the driving ball bearing, the other is the assistant ball bearing (support role)
- Use high-precision potentiometer in the new design. Accuracy and linearity have been greatly improved! Accurate movement can help you build up robots
- The control board uses I/O port to connect the serial servo, servos are connected in series through a dual interface, which reduces the use of serial ports. Simple wiring makes the product more exquisite and attractive
Clean Wiring
There are 2 ports for you to connect which makes the project have clean wiring and beautiful outlook.
Serial Bus Servo Port
ID Identification, Bus Communication
High Accuracy Potentiometer
Angle Readback
Temperature/Voltage Feedback
Two Operation Modes
Tiny Body with Unique Shell Design
Fixed Double-shaft
Alloy Gear

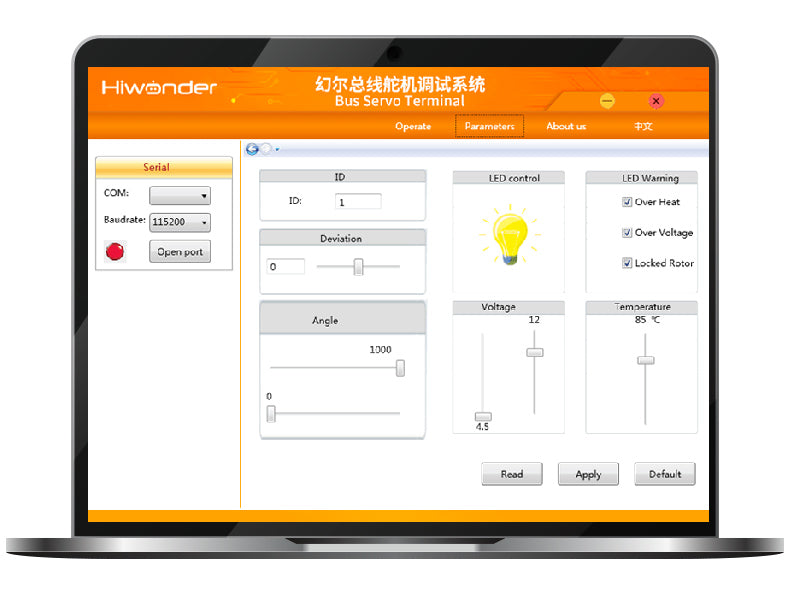

Servo Debugging System
In Debugging system, you can set ID number, working mode, rotation speed, position deviation, LED light, temperature alarm and voltage alarm for servos.
Packing List
| 1* LX-16A serial bus servo | 1* Assistant servo horn |
| 1* Main servo horn | 1* Servo wire |
