Description
Description
- Schmitt-trigger action on each input with no external components
- Hysteresis voltage typically 0.9 V at VDD = 5 V and 2.3 V at VDD = 10 V
- Noise immunity greater than 50%
- No limit on input rise and fall times
- Standardized, symmetrical output characteristics
CD4000 Series
- Quad 2-input NAND Schmitt trigger
- Dual-In-line Package
- 14-pins
Specifications
|
Specification | Value |
|---|---|
| Logic Circuit Type | NAND |
| Number of Inputs | 2 |
| Propagation Delay (tpd) (ns) | 380 |
Package Includes

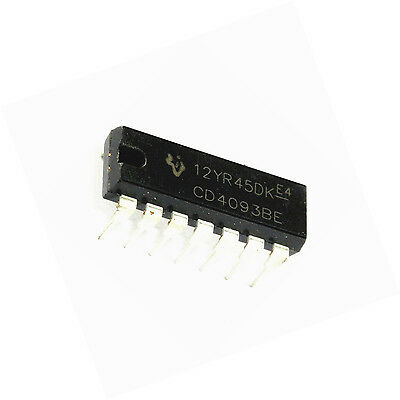

1pc x CD4093BE DIP14 Quad 2-Input NAND
