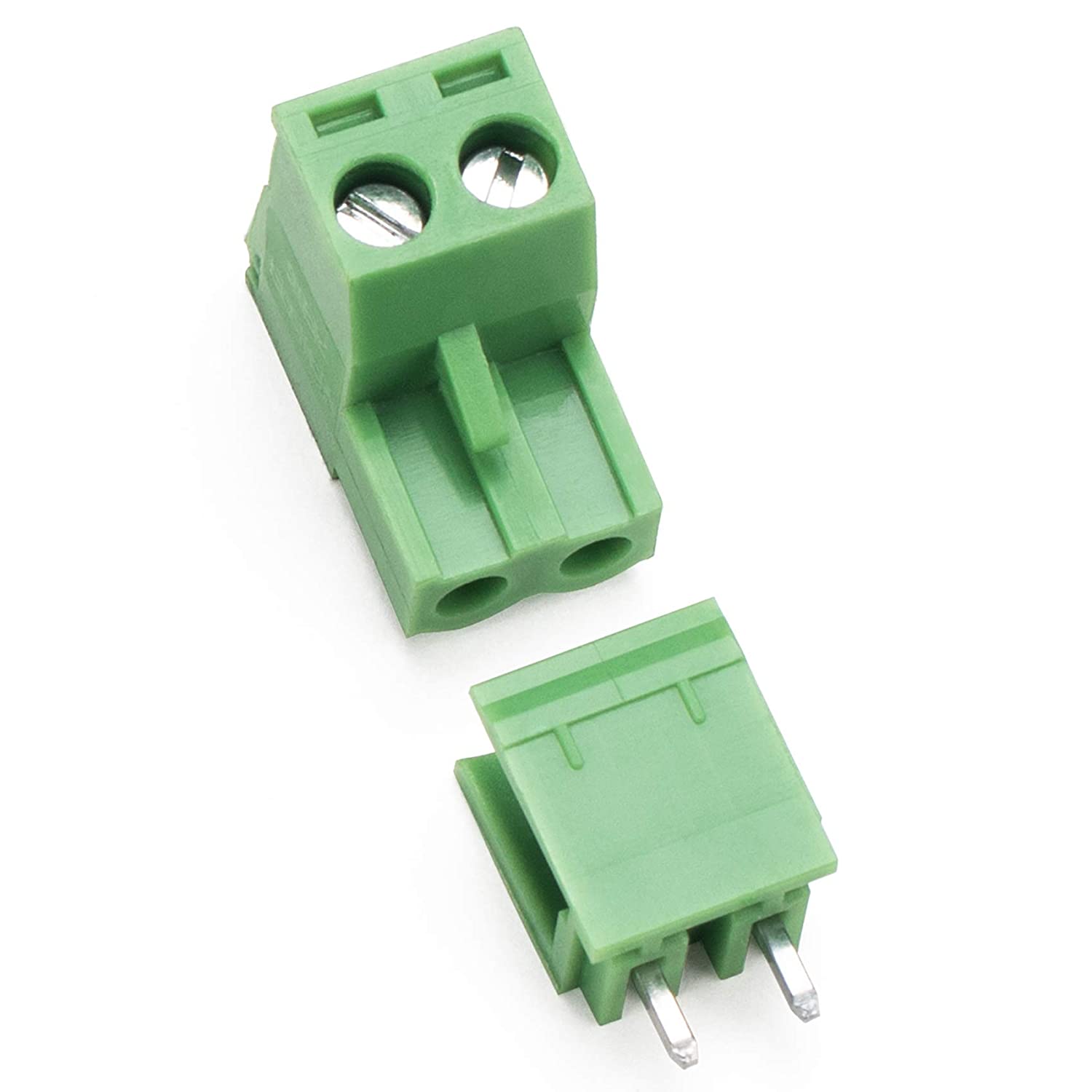

KF2EDGK 2.54mm 2P Terminal Block

PARAMETER:
MATERIAL
Pitch: 5.0 /5.08mm
Poles: 2P
Screw: M3, Steel Zinc plated
Contact: Phosphor bronze、Tin plated
Wire cage: Brass、Ni plated
Housing: PA66. UL94V-0

ELECTRICAL
Rated Value: 300V 15A
Withstanding voltage: AC2500V /1 Min
Wire range: 24-12 AWG

MECHANICAL
Temperature range: -33℃~+105 ℃ MAX
Strip length: 7-8mm
Application:
The 5.08mm pitch terminal block is widely used for wire connections and in the electronics, communication equipment, instruments, calculator, automatic control system, domestic appliance and warning devices, etc.

Package Includes:
1 x 2-Pin Screw Terminal Block
