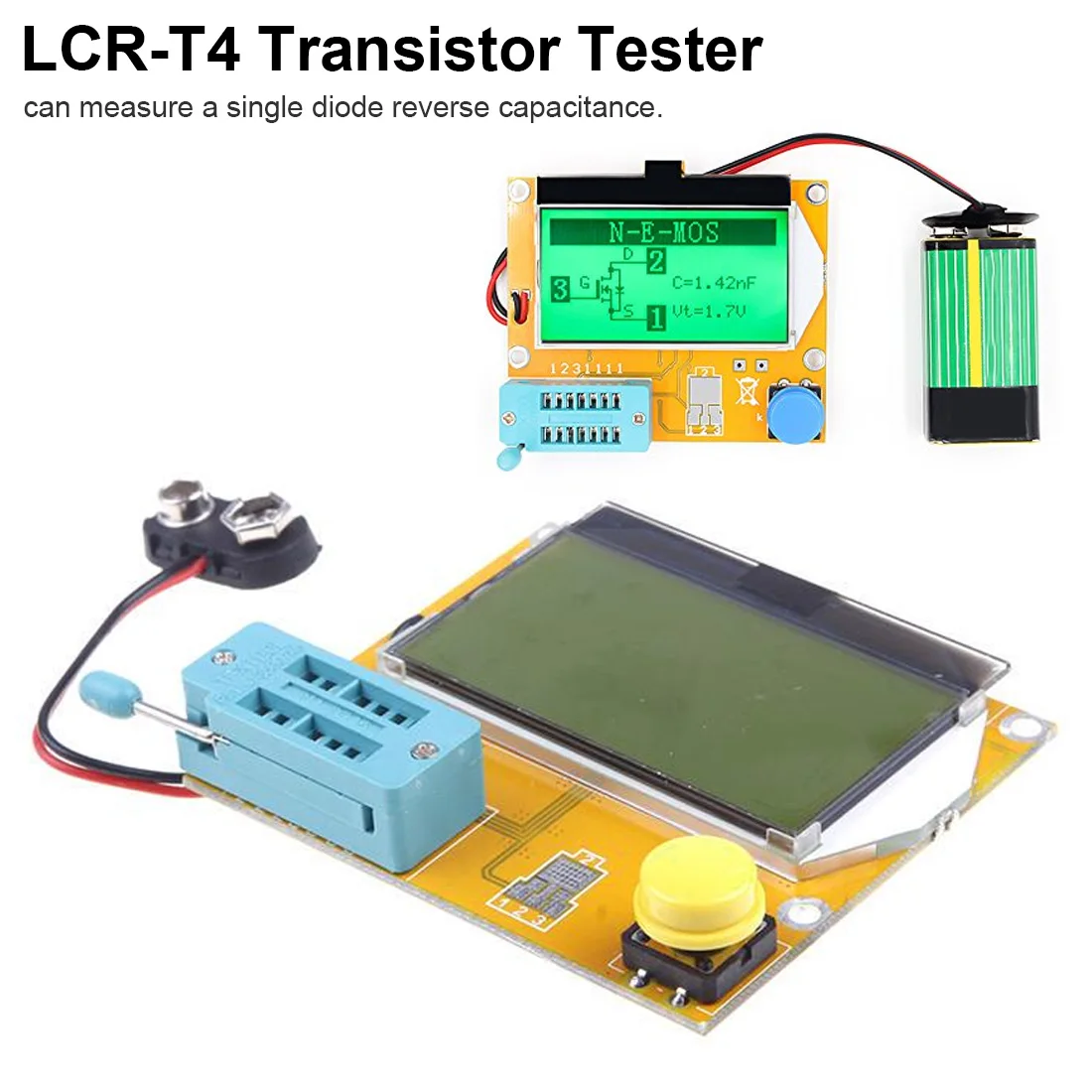

LCR-T4 Meter Transistor/Diode/Capacitance Tester

Features :

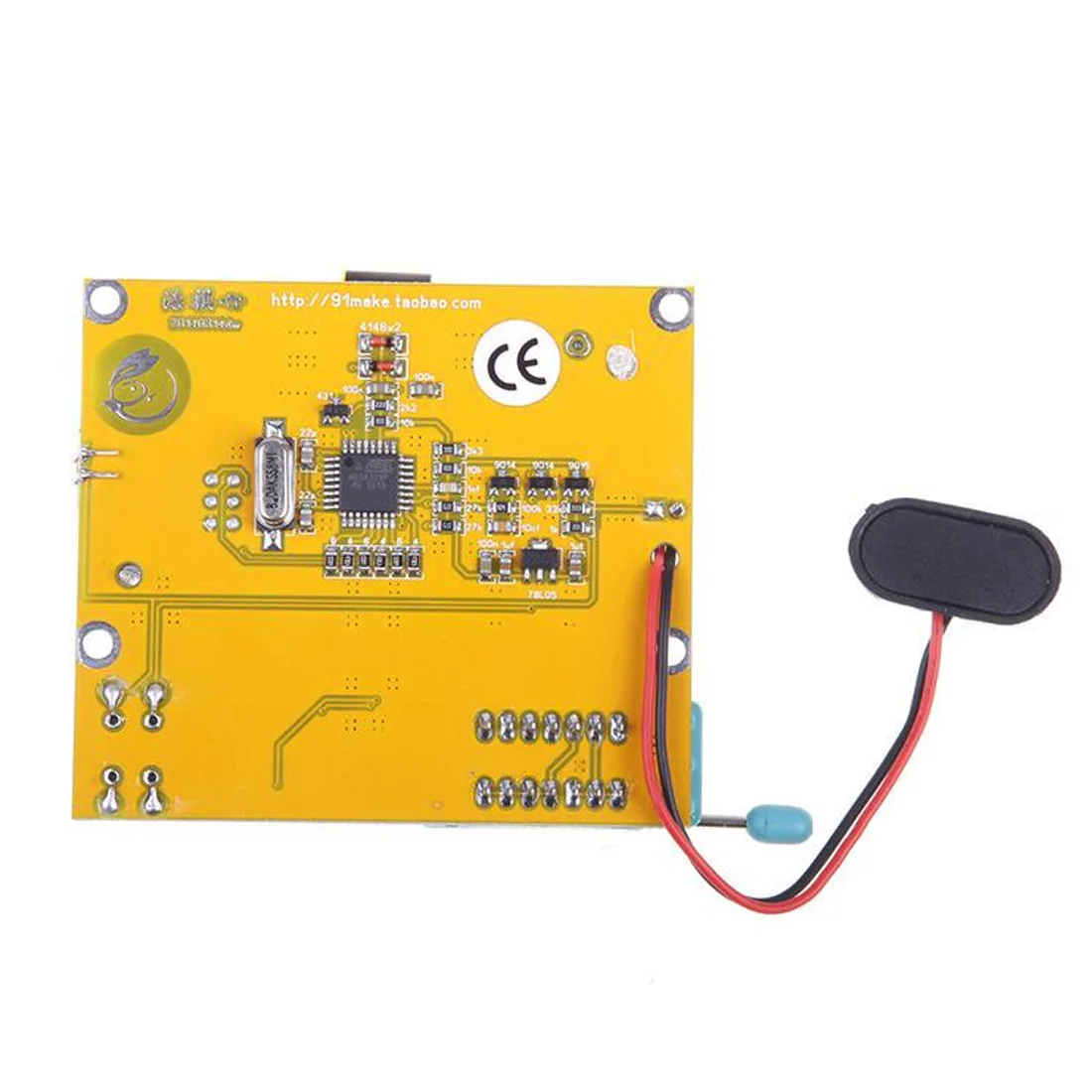

1. latest M328 version of the software ,more functions.Chip: Atmega328
2.128*64 big Backlight LCD display,only 2mA when stand by.
3. Using 9V battery (Not included)

Test ranges:
Inductors, capacitors , diodes, dual diode , mos, transistor, SCR , the regulator, LED tube , ESR,
Resistance,Adjustable potentiometer
Resistance :0.1 ohm resolution, maximum 50M ohm
Capacitor :25pf -100,000 uf
Inductors : 0.01mh-20H

Function:

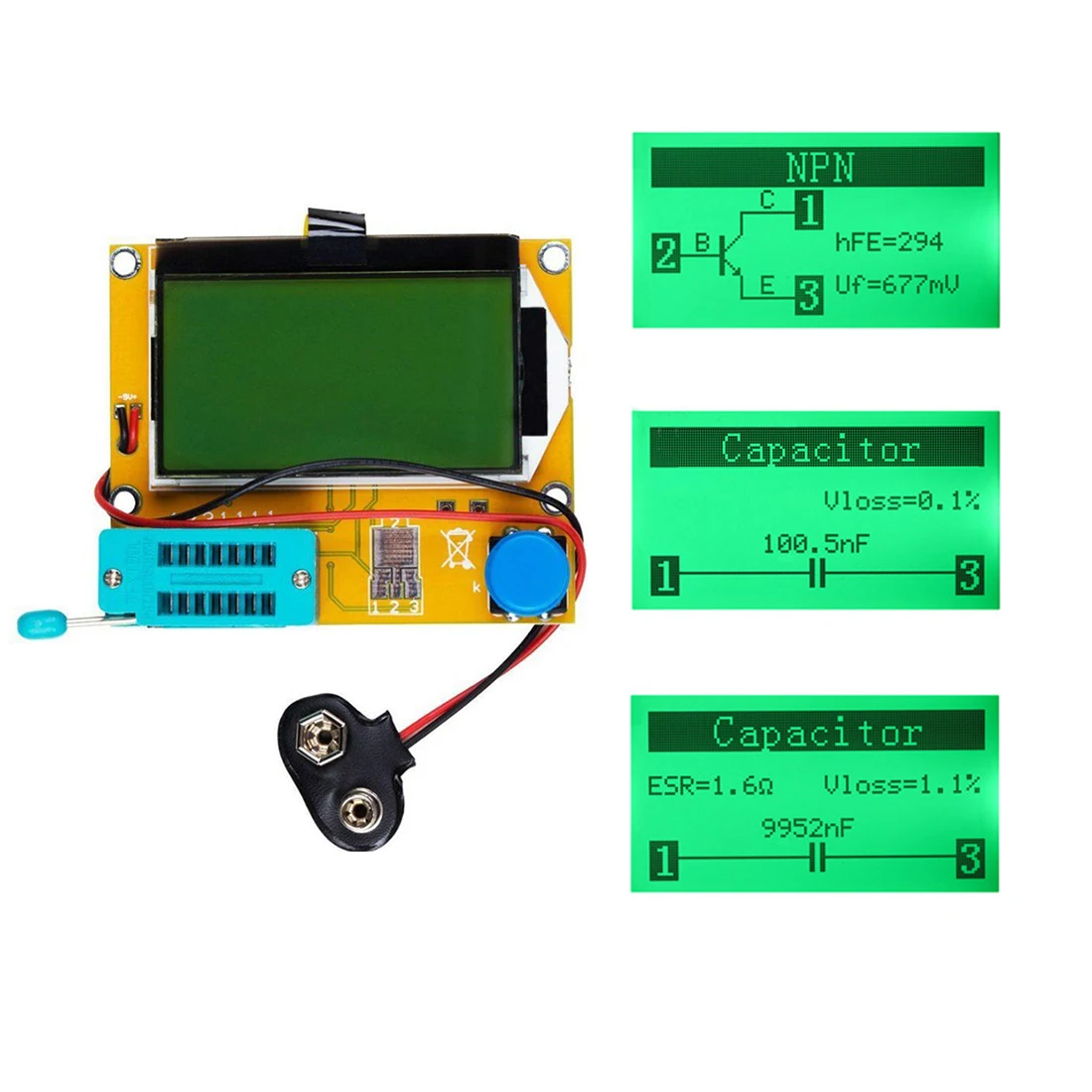

1. Automatic detection of NPN and PNP transistors, n-channel and p-channel MOSFET, diode (including double diode), thyristor, transistor, resistor and capacitor and other components
2. Automatic test the pin of a component, and display on the LCD
3. Can detect the transistor, MOSFET protection diode amplification coefficient and the base to determine the emitter transistor forward biased voltage
4. Measure the gate and gate capacitance of the MOSFET threshold voltage
5. Use 12864 liquid crystal display with green backlight
6. Automatic identification components pin arrangement .
7. Measuring bipolar transistor current amplification factor and base - emitter threshold voltage.
8. Via the base - emitter threshold voltage and high current amplification factor to identify Darlington transistors.
9. Can detect bipolar transistors and MOS transistors protection diodes.
10. Measuring the gate MOS FET threshold voltage and the gate capacitance.
11. Can simultaneously measure two resistors and resistor symbol is displayed.
12. Resistance measurement resolution is 0.1 ohms , 50M ohms can be measured .
13. Can measure capacitanceCan measure capacitance of 30pF-100mF , resolution 1pF.
14. 2uF more capacitors can simultaneously measure the equivalent series resistance ESR values. The two can be displayed with a decimal value , resolution 0.01 ohms.
15. Can be in the correct order and the diode symbol display two diodes , and gives the diode forward voltage.
16. LED is detected as a diode forward voltage higher . Combo of the LED is identified as two diodes.
17. Eeverse breakdown voltage is less than 4.5V Zener diode can be identified.
18. Can measure a single diode reverse capacitance.
19. If the bipolar transistor connected to the base and collector or emitter of a pin ,it can measure the collector or emitter junction reverse capacitance. Can be obtained with a single measurement rectifier bridge connection.
