Description
Product Description
The threshold can be adjusted by potentiometer to set the relay start
Input: 5V/12V DC
Normally closed ( NC )
Size: 30MM*53MM
BLUE LED ON: Relay is working
Module output terminal has three ports
Normally open ( NO )
Common terminal ( COM )
Load capacity: 10A / AC 250V or DC up to 30V
RED LED ON: Indicate the Power ON
Package Includes

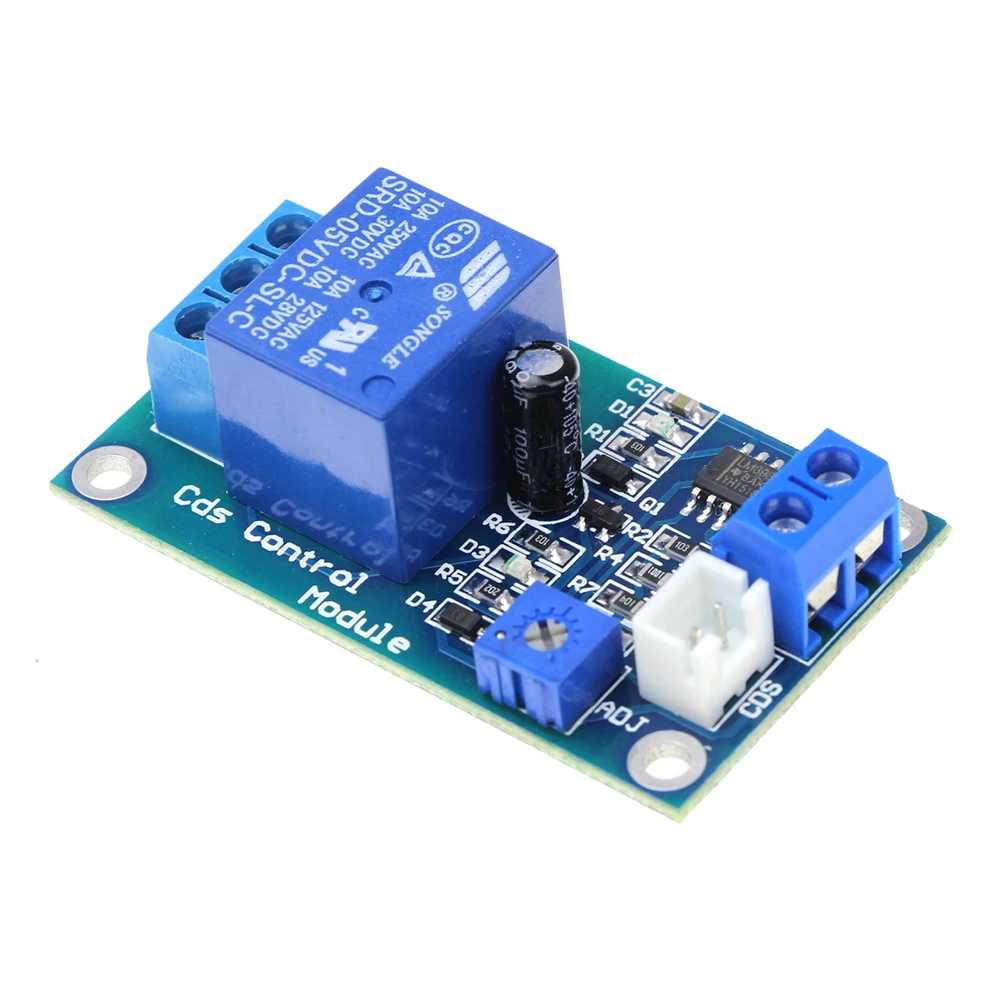

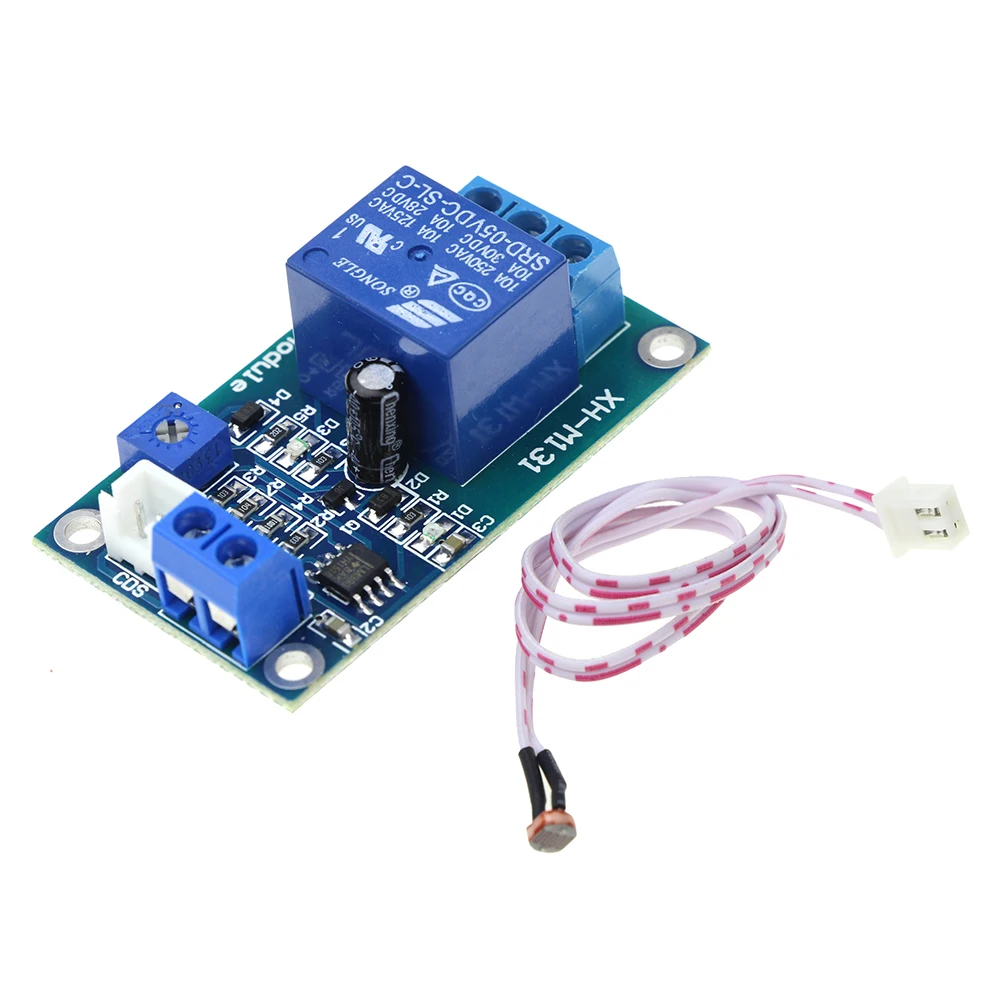

1PCS DC 12V Light Control Switch Photoresistor Relay Module
