Description
Features
Small volume ,small input power, non-contact,sparkless, noiseless, non-machinery wear, anti-vibration and the long life.
Main Application:
- Industrial automation installment
- Computer periphery connection
- AC motor control
- Automatic fire control and security system
- Street light,signal light,traffic light,etc
Specification
|
Load Current: |
50A |
|
Load Voltage: |
24~380VAC |
|
Control Voltage: |
3~32VDC |
|
Control Current: |
3~25MA |
|
On Voltage: |
≤ 1.5VAC |
|
Off Leakage Current: |
≤4MA |
|
On-off Time: |
≤ 10MS |
|
Dielectric Strength: |
2500VAC |
|
Insulation Resistance: |
100M Ω /500VDC |
|
Ambient Temperature: |
-25~+75°C |
|
Work instruction: |
LED |
|
Weight |
90g |
Package Includes
1 x SSR-50DA DC-AC 24-380V Solid State Relay

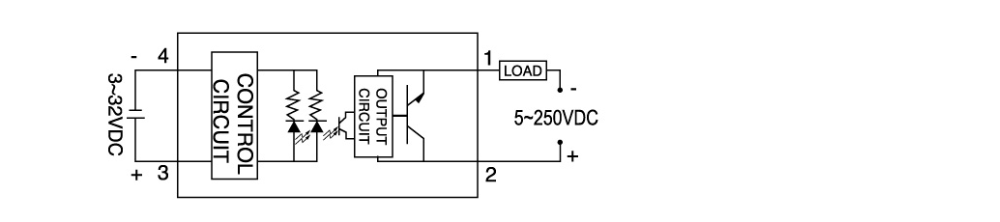

Connection Diagram

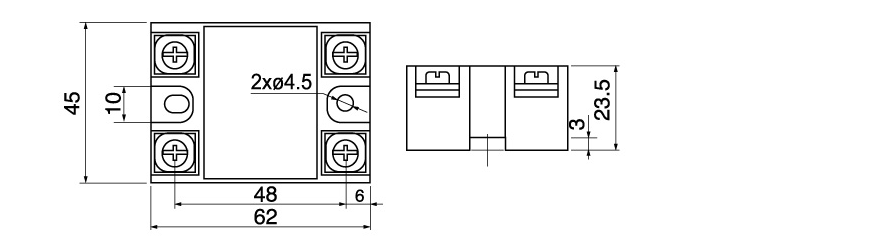

Dimensions
